USB key size A
USB key size A
Regular price
€4,90 EUR
Regular price
Sale price
€4,90 EUR
Unit price
per
Tax included.
Couldn't load pickup availability
What you will get:

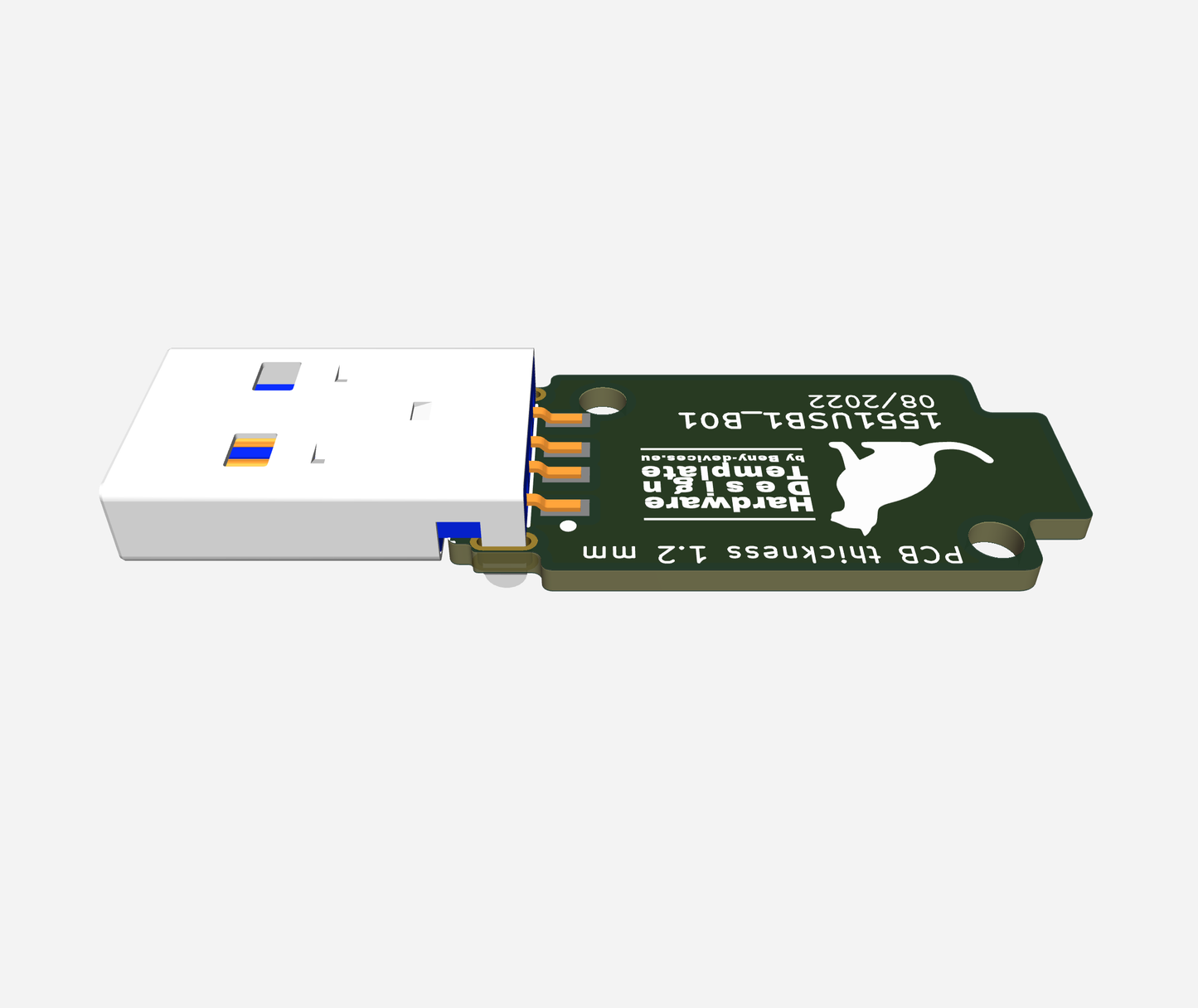

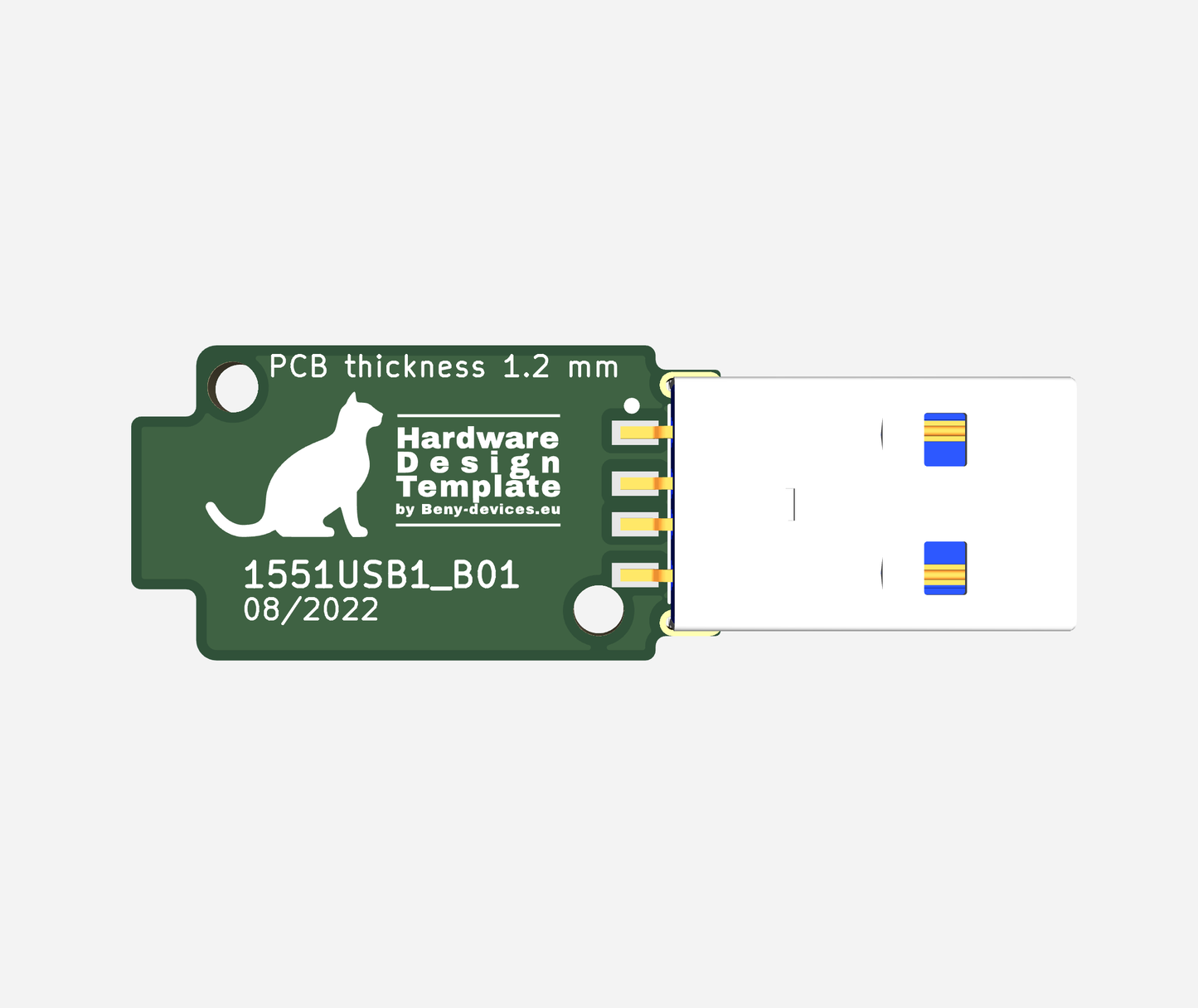

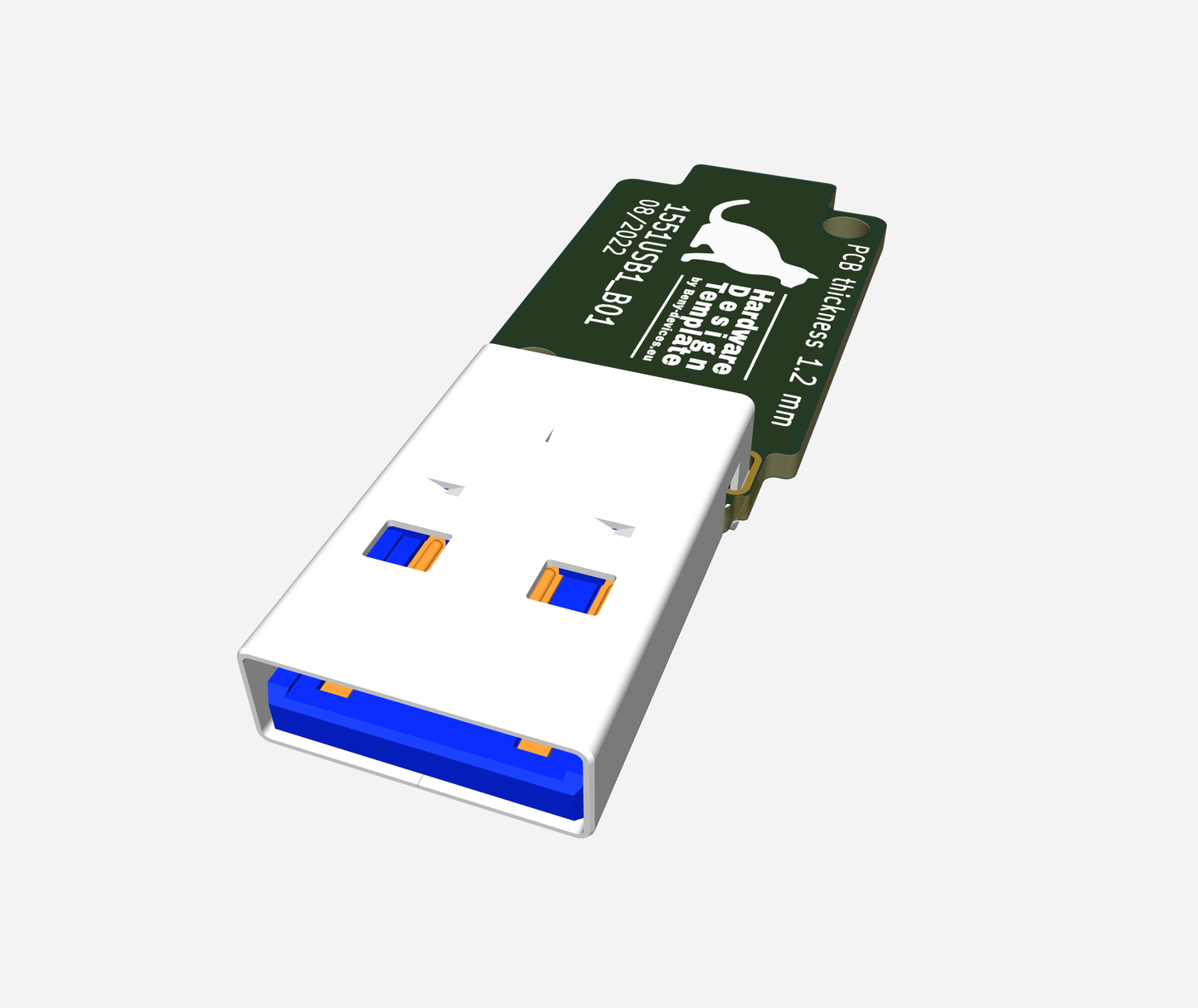

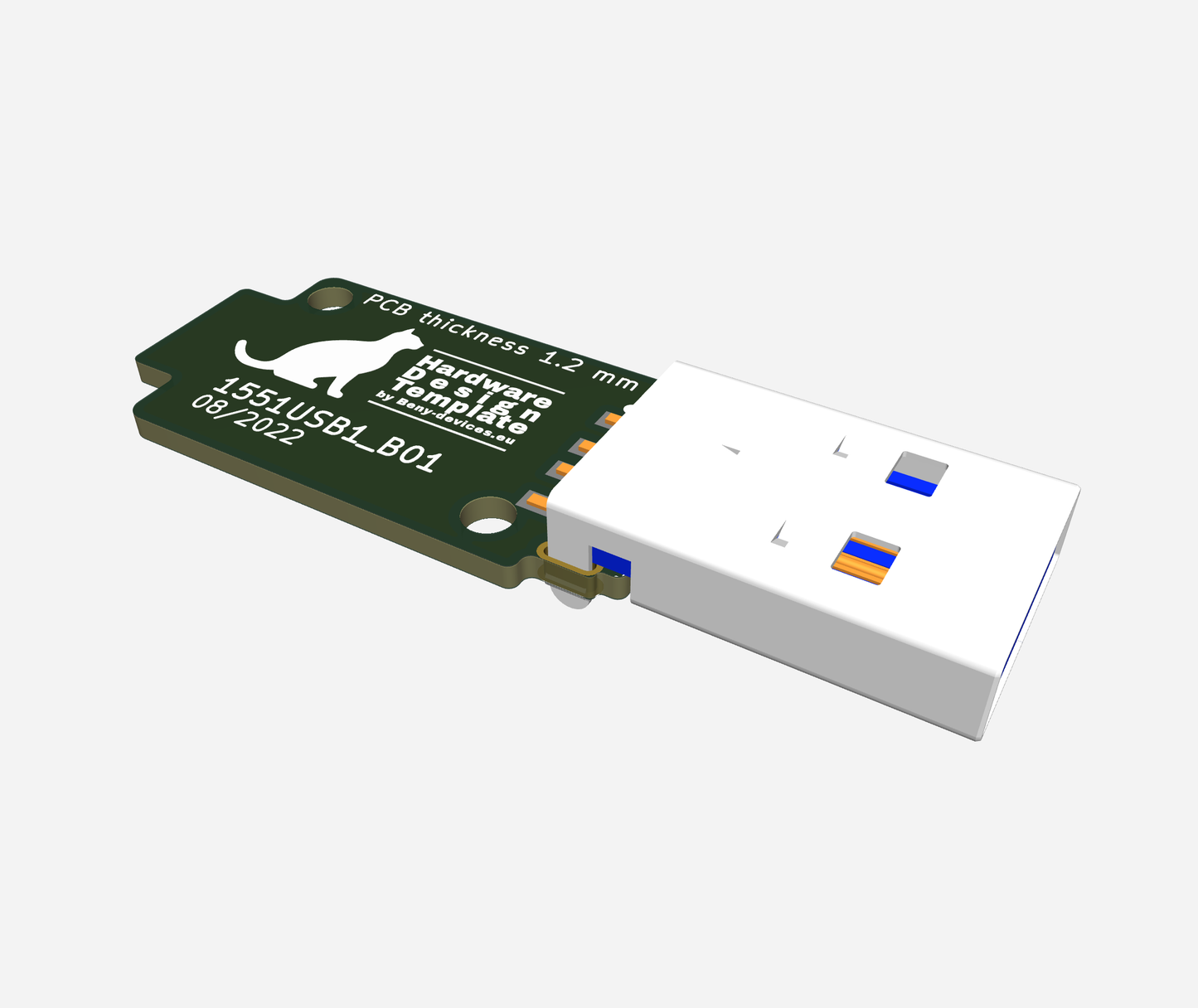

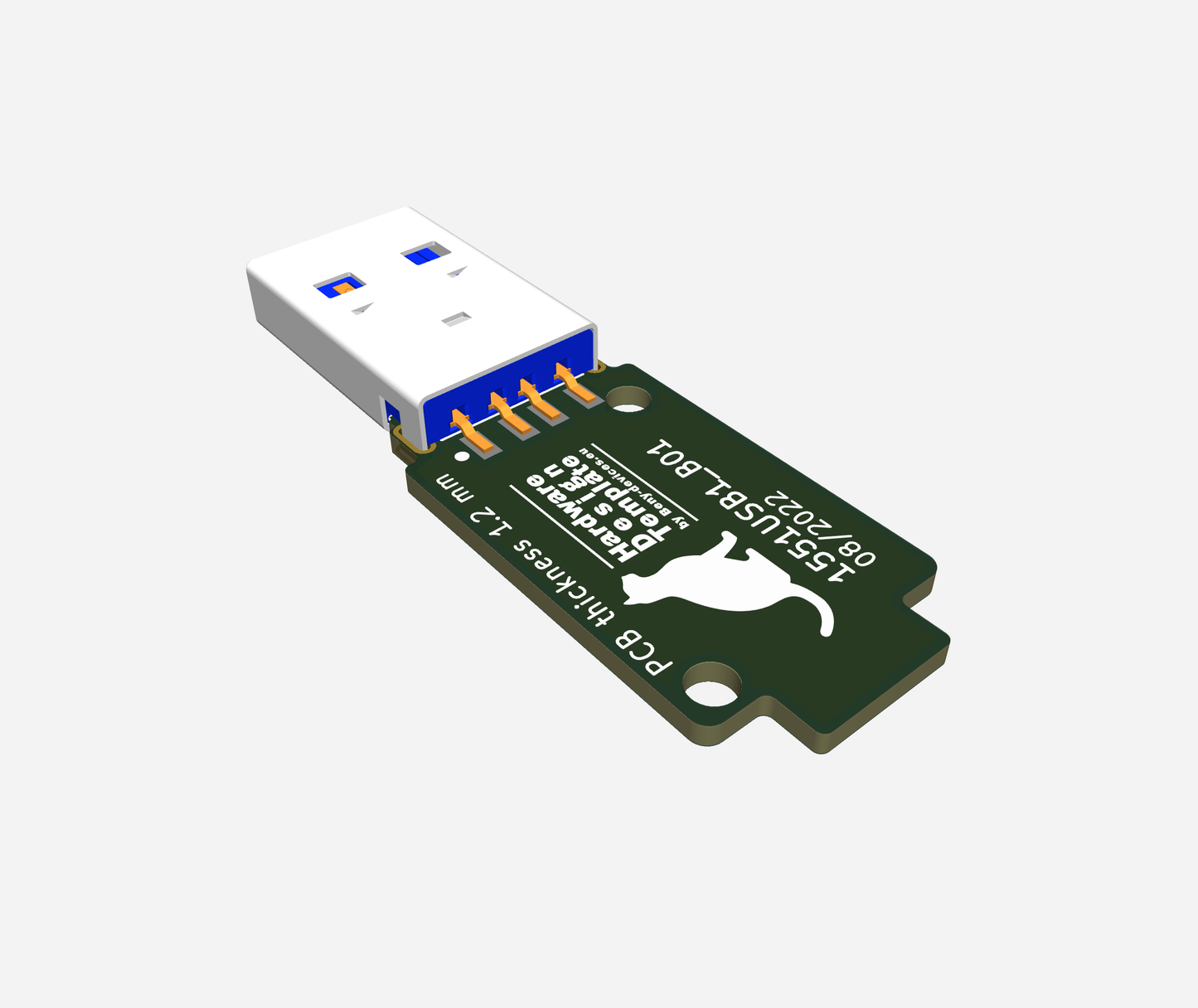

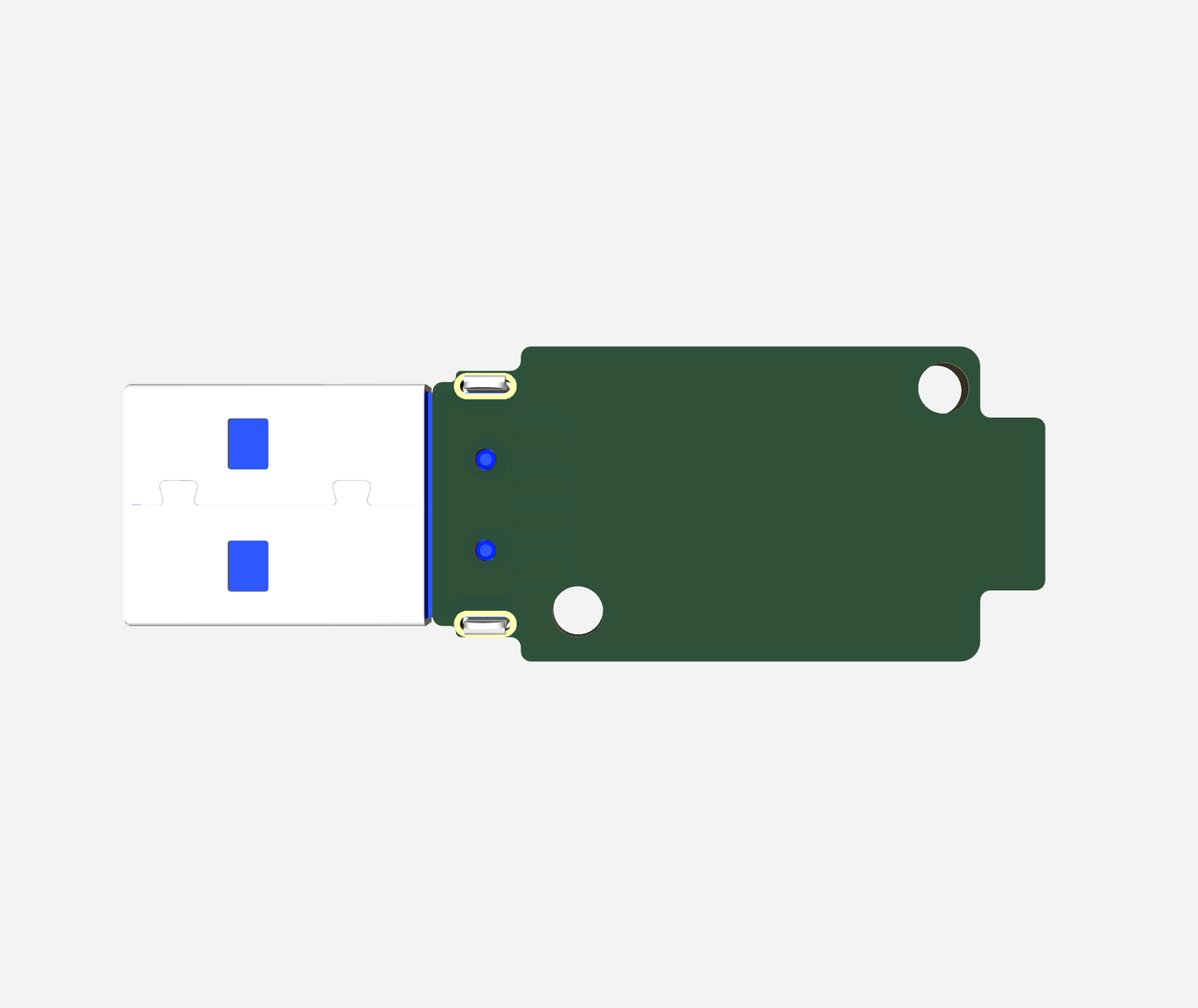

The Hardware Design Template package for the easiest schematic design and PCB layout of an Industrial node, IoT node or similar device.
The Hardware Design Template package contains:
- Design data of the verified PCB template.
- A design library of all used symbols.
- A design library of all used footprints.
- Clean and easy to order BOM of all components compatible with the enclosure openings.
- Instructions on how to order the enclosure by yourself.
The Hardware Design Template supports:
- USB-A male

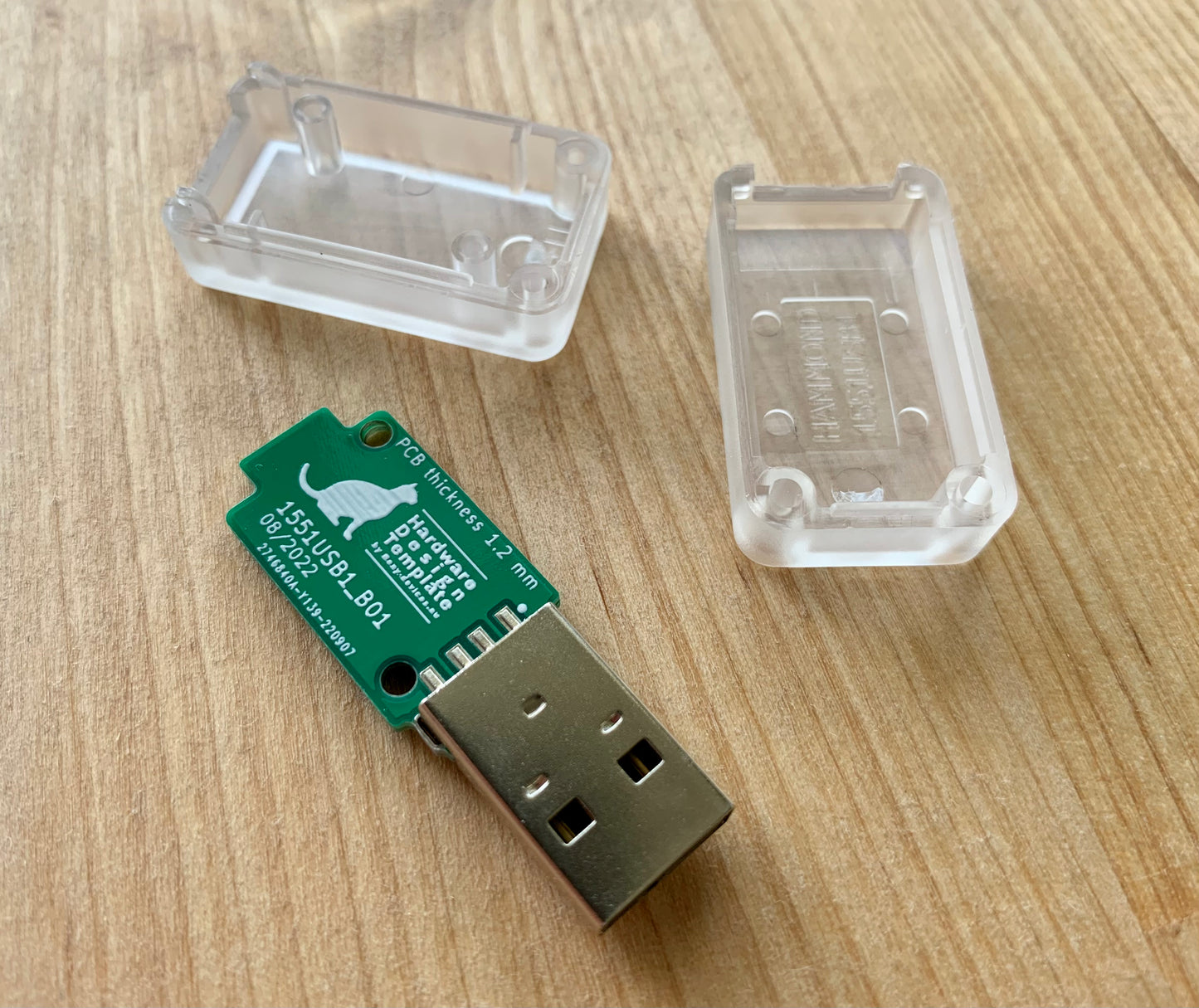

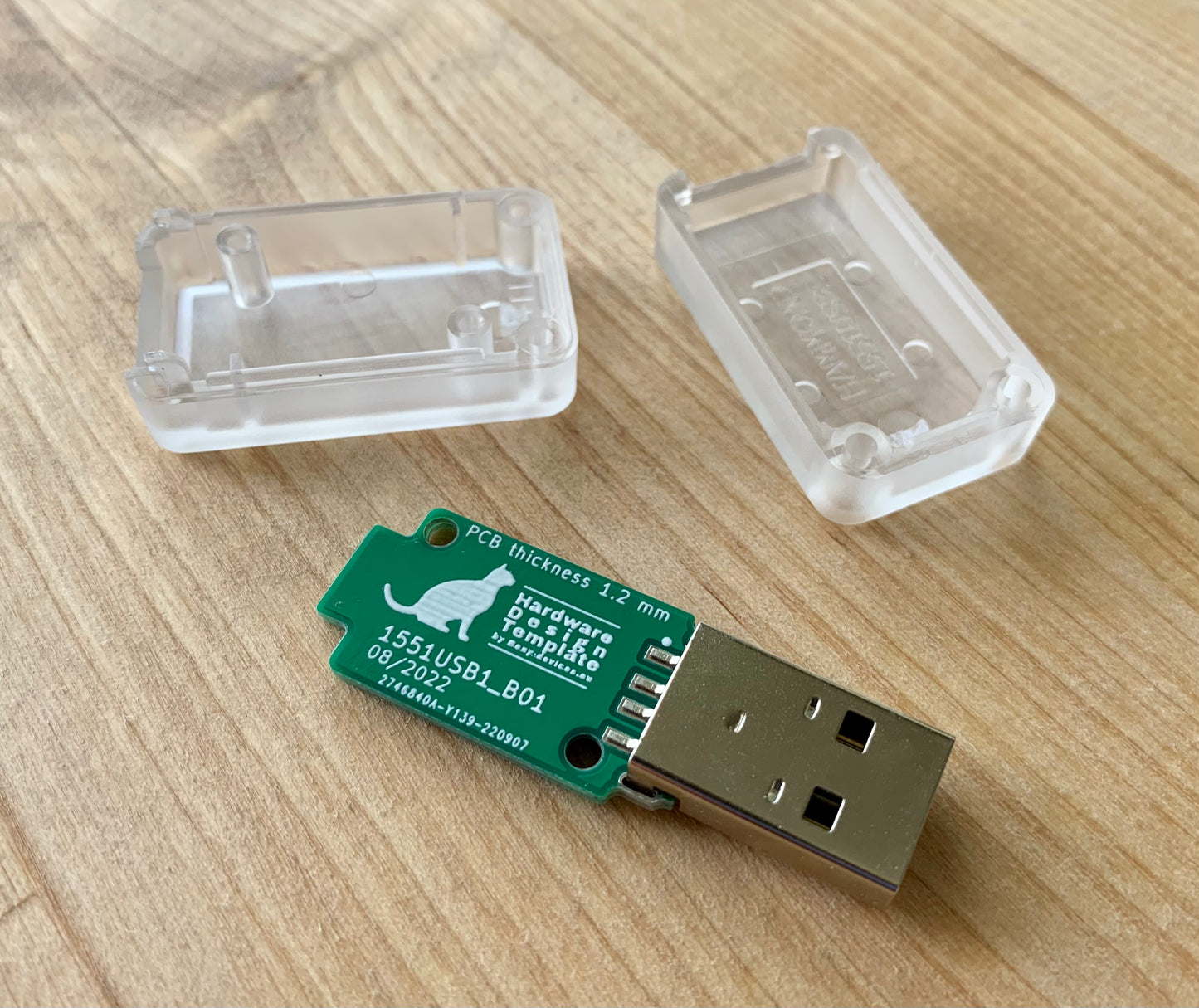

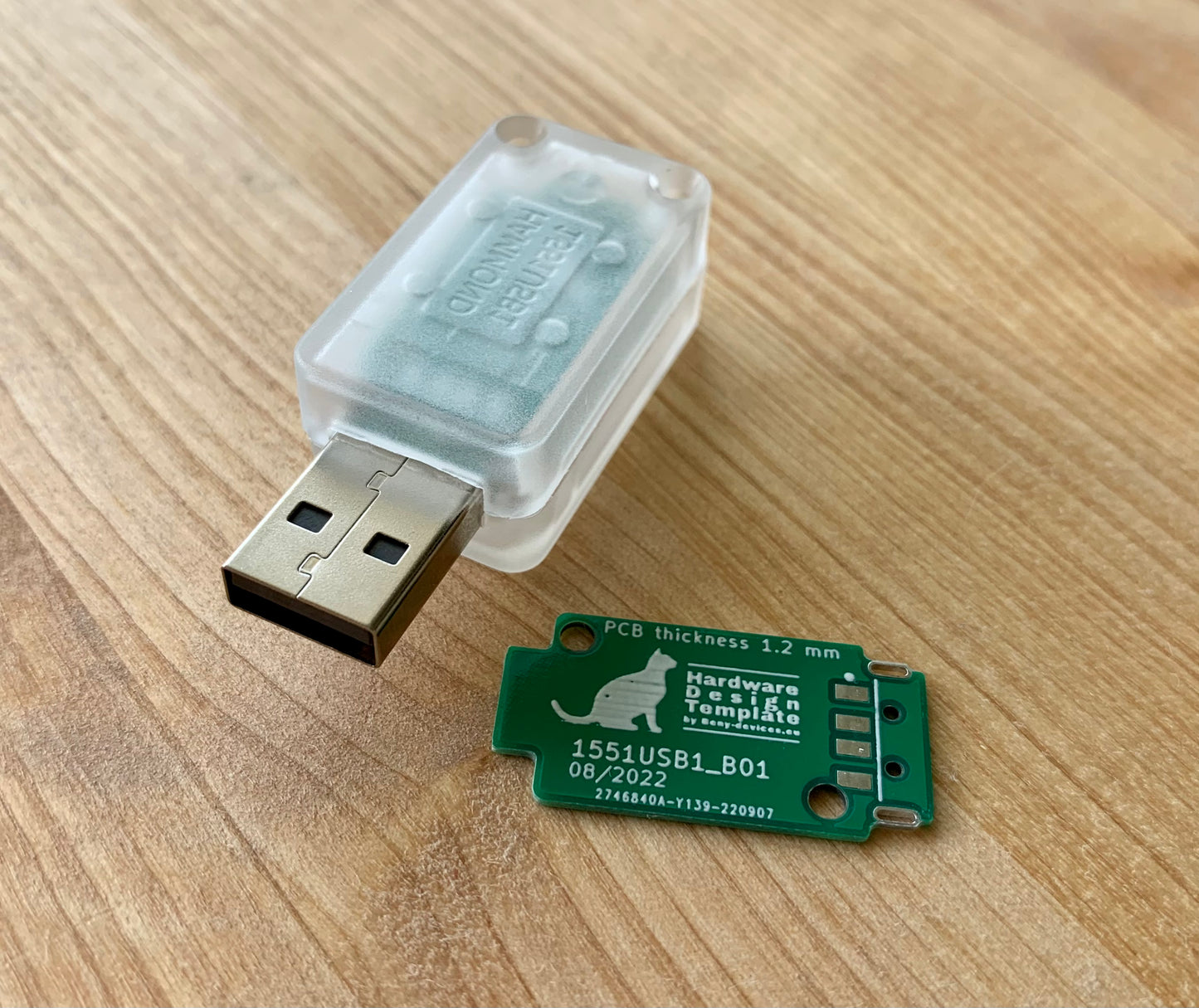

The used enclosure is Hammond Manufacturing 1551USB1.
What you will not get:
- Any physical enclosure or any piece of material.
Disclaimer
💾 The Hardware Design Template is a downloadable digital product (delivery policy)
Dimensions
Dimensions
35x20x15.5 mm
![USB key size A](http://beny-devices.eu/cdn/shop/products/B7FF7127-1EC8-420F-BCD0-61D24A9D208F_1_201_a.heic?v=1665037847&width=1445)
![USB key size A](http://beny-devices.eu/cdn/shop/products/IND0003_1.png?v=1665037847&width=1445)
![USB key size A](http://beny-devices.eu/cdn/shop/products/IND0003_2.png?v=1665037847&width=1445)
![USB key size A](http://beny-devices.eu/cdn/shop/products/IND0003_3.png?v=1665037847&width=1445)
![USB key size A](http://beny-devices.eu/cdn/shop/products/IND0003_4.png?v=1665037847&width=1445)
![USB key size A](http://beny-devices.eu/cdn/shop/products/IND0003_5.png?v=1665037847&width=1445)
![USB key size A](http://beny-devices.eu/cdn/shop/products/IND0003_6.png?v=1665037847&width=1445)
![USB key size A](http://beny-devices.eu/cdn/shop/products/IND0003_7.png?v=1665037847&width=1445)
![USB key size A](http://beny-devices.eu/cdn/shop/products/0DCDE243-C31B-4BCE-AFED-7A9260BA99D9_1_201_a.heic?v=1665037847&width=1445)
![USB key size A](http://beny-devices.eu/cdn/shop/products/0B4B2161-DBBC-466E-BA33-F5F543088318_1_201_a.heic?v=1665037847&width=1445)
![](http://beny-devices.eu/cdn/shop/products/968FAB21-0522-4DB5-9FFF-EF91B6C02992_1_201_a.heic?v=1663490048&width=1500)
A jump start
Mechanical simplicity along with tested components keep you on track to the final product.
-

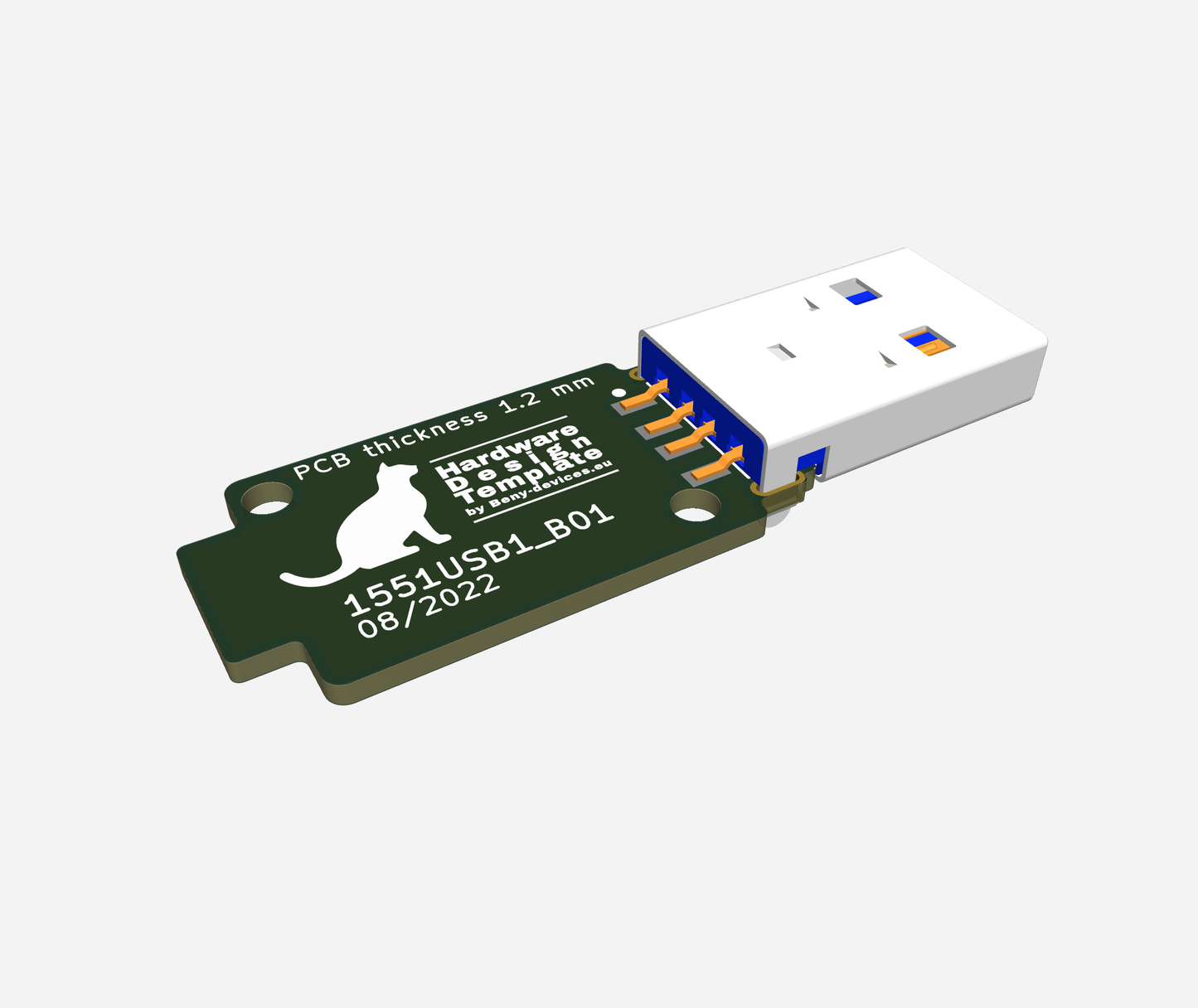

ECAD project
Simple and clean ECAD project. The size of the PCB is the maximum possible and the shape always follows the enclosure borders.
-
Bill of material
List of all recommended components that were verified to be perfectly fiting the enclosure openings.
