Uno Clear Square node

Uno Clear Square node

€2,90 EUR
€2,90 EUR
Sale Sold out
Tax included.
Data format

What you will get:

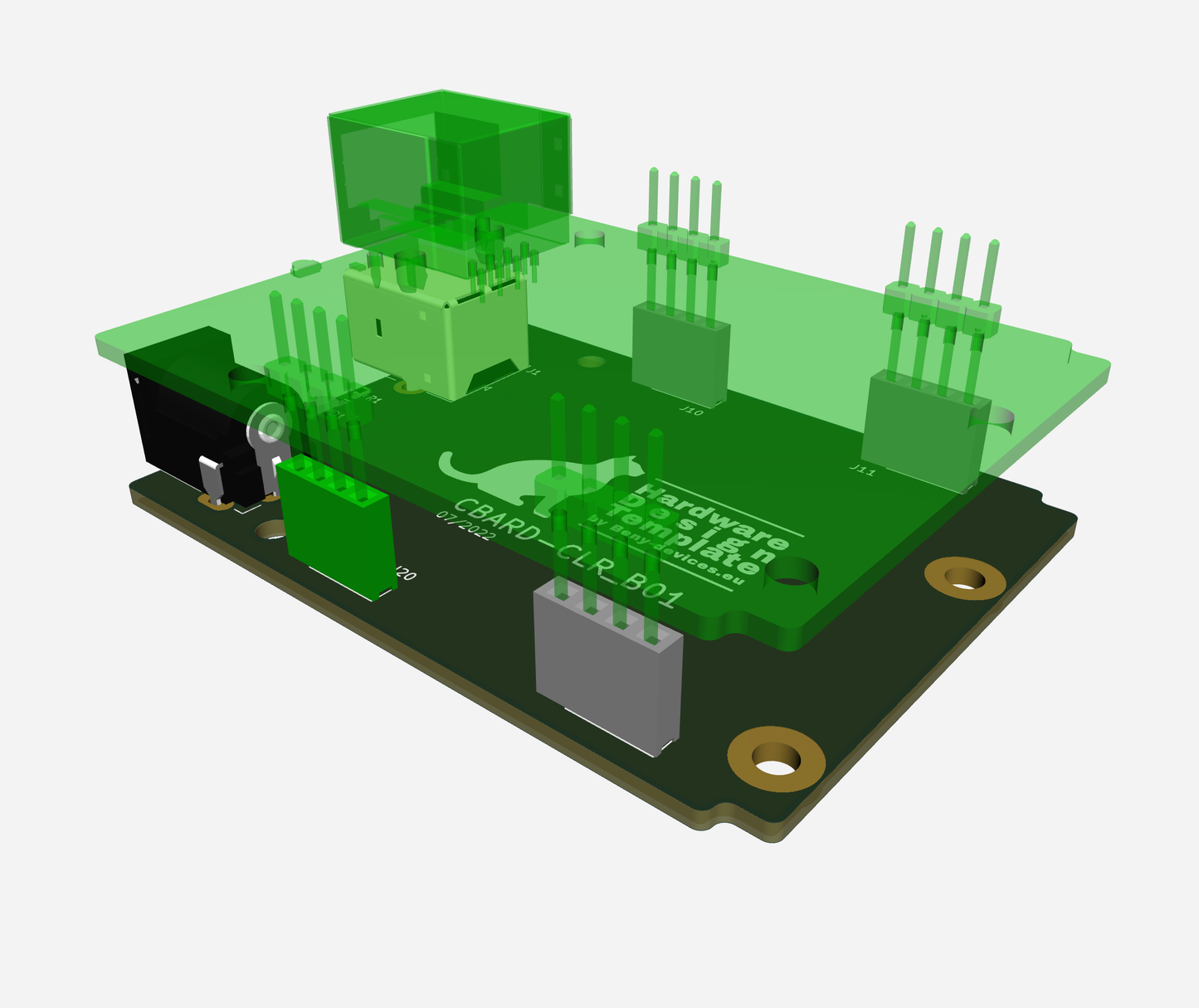

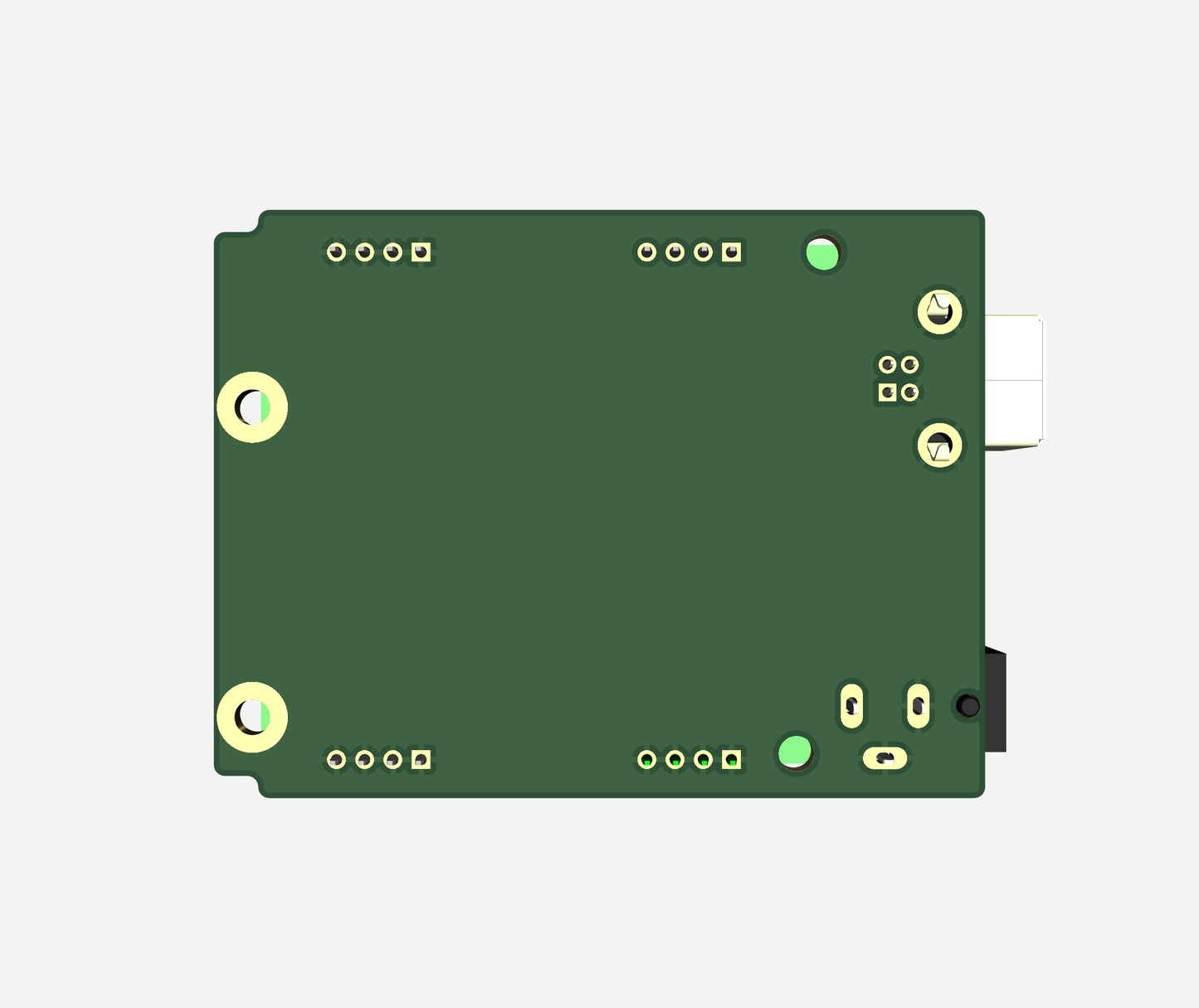

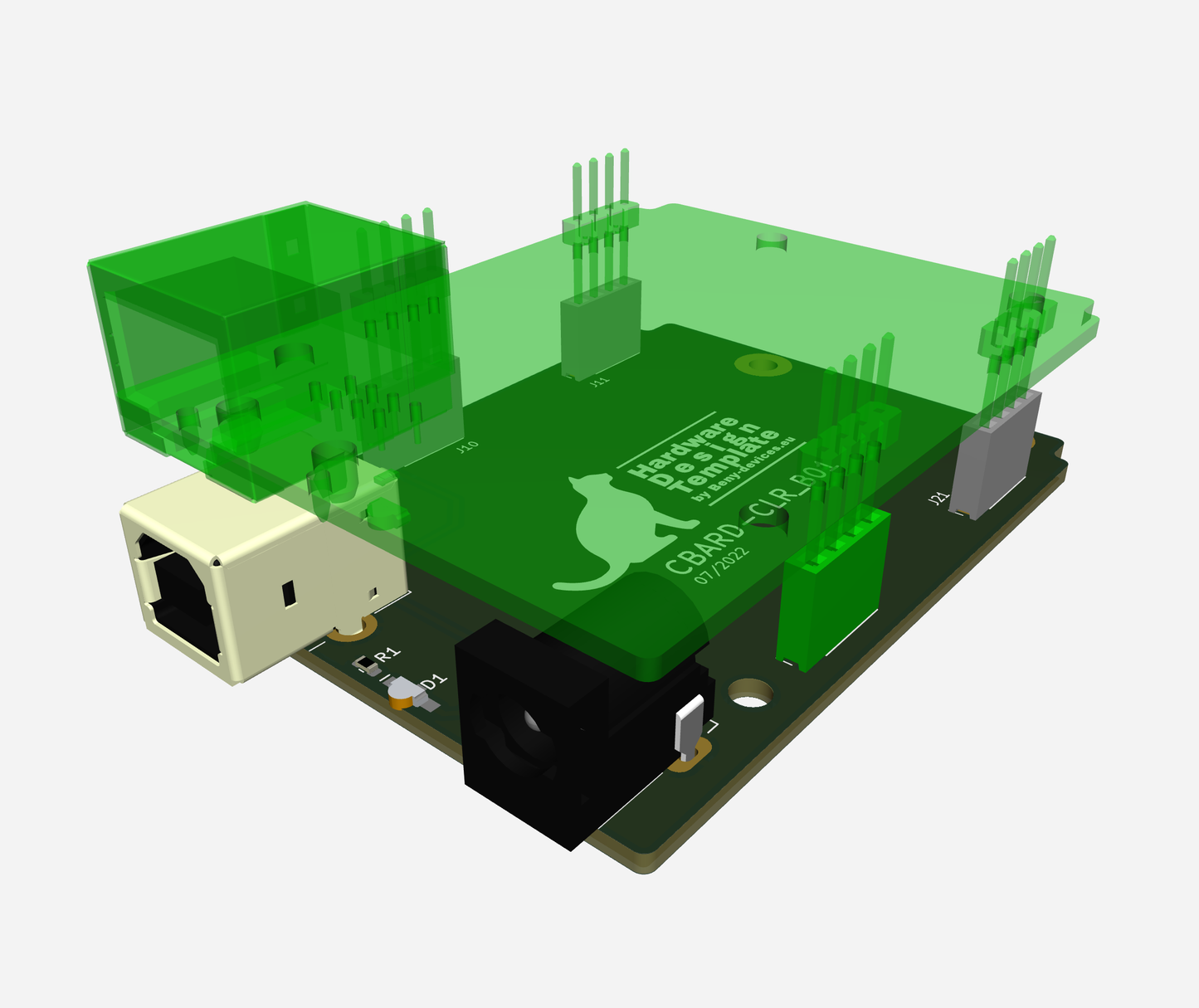

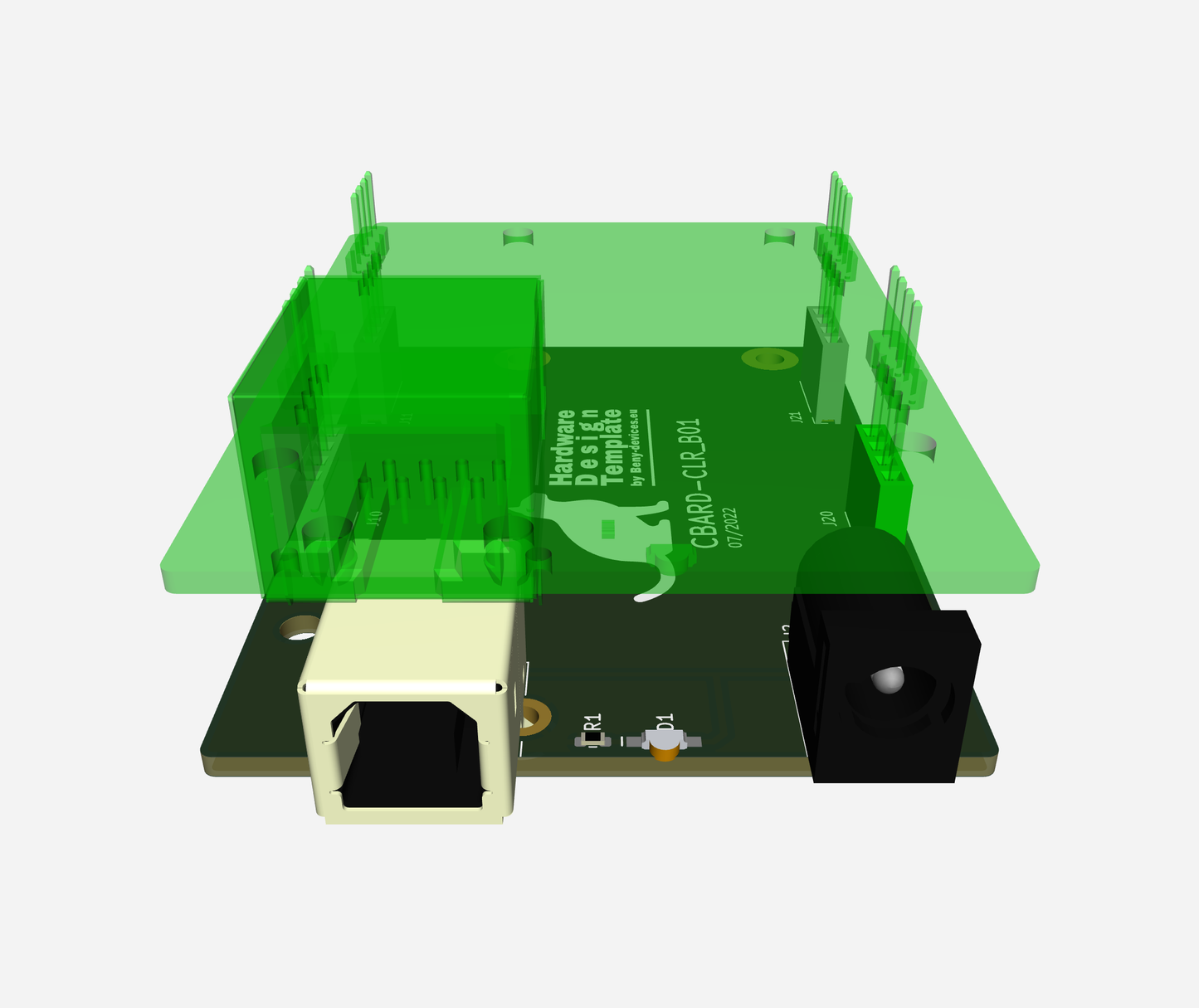

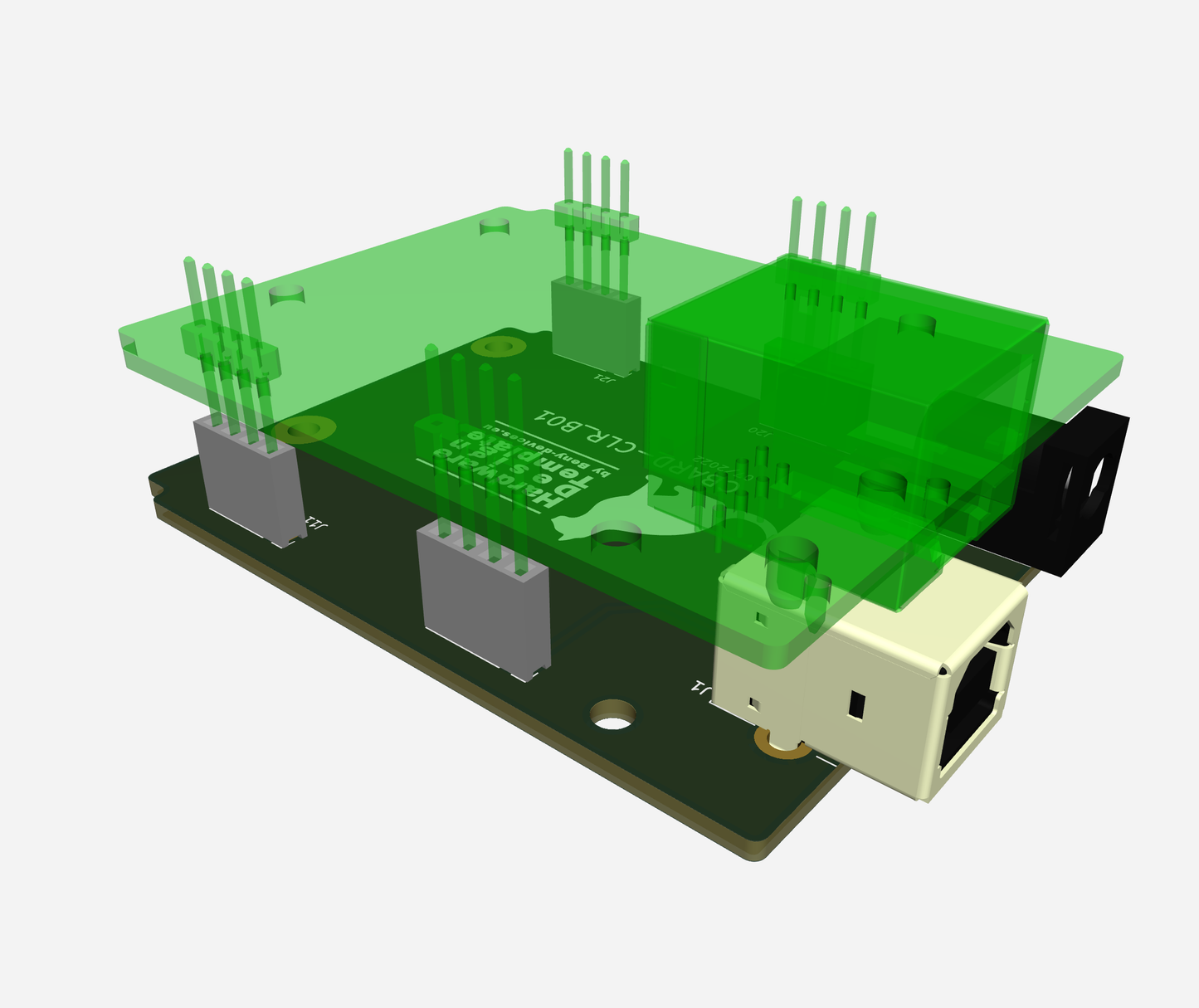

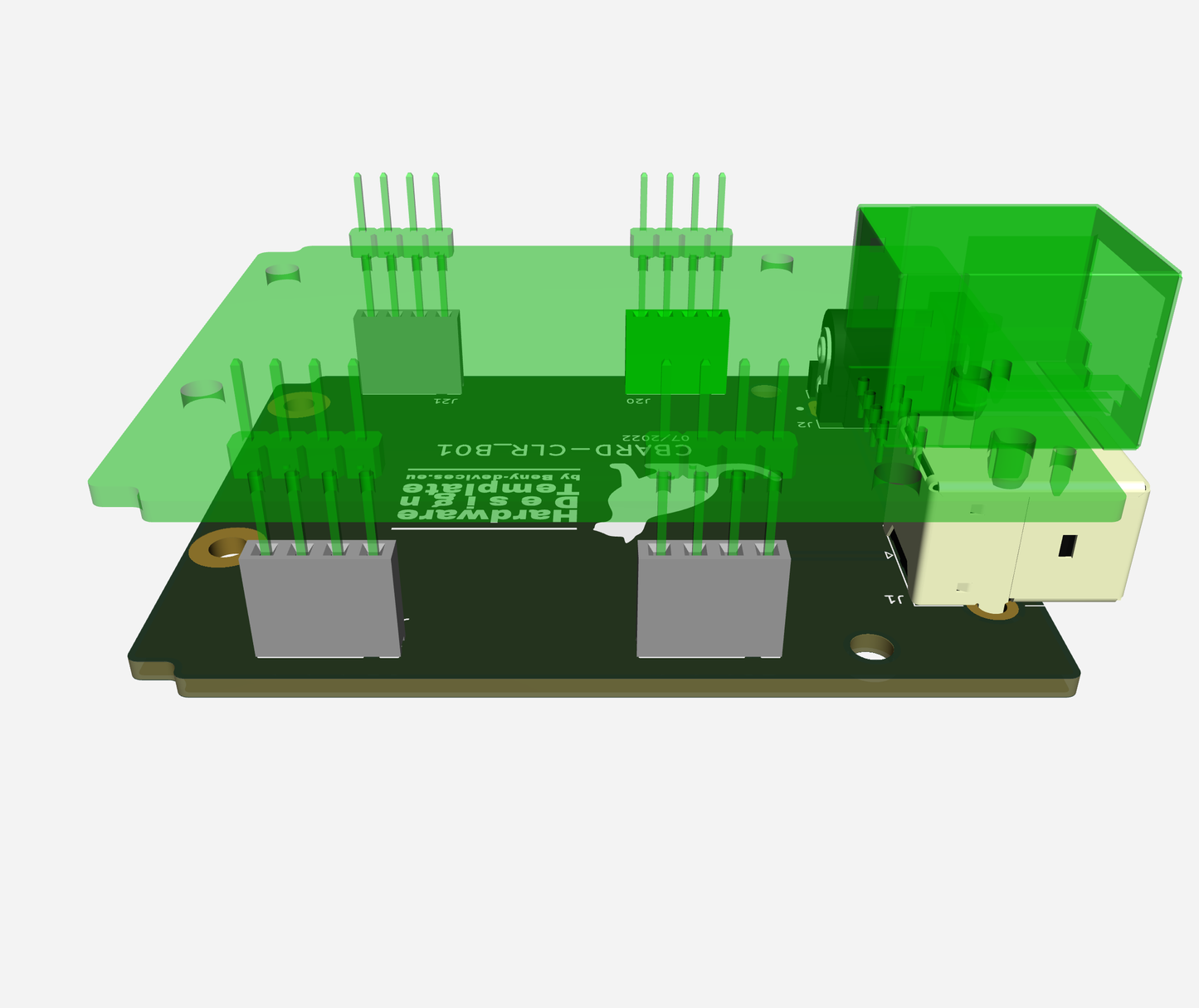

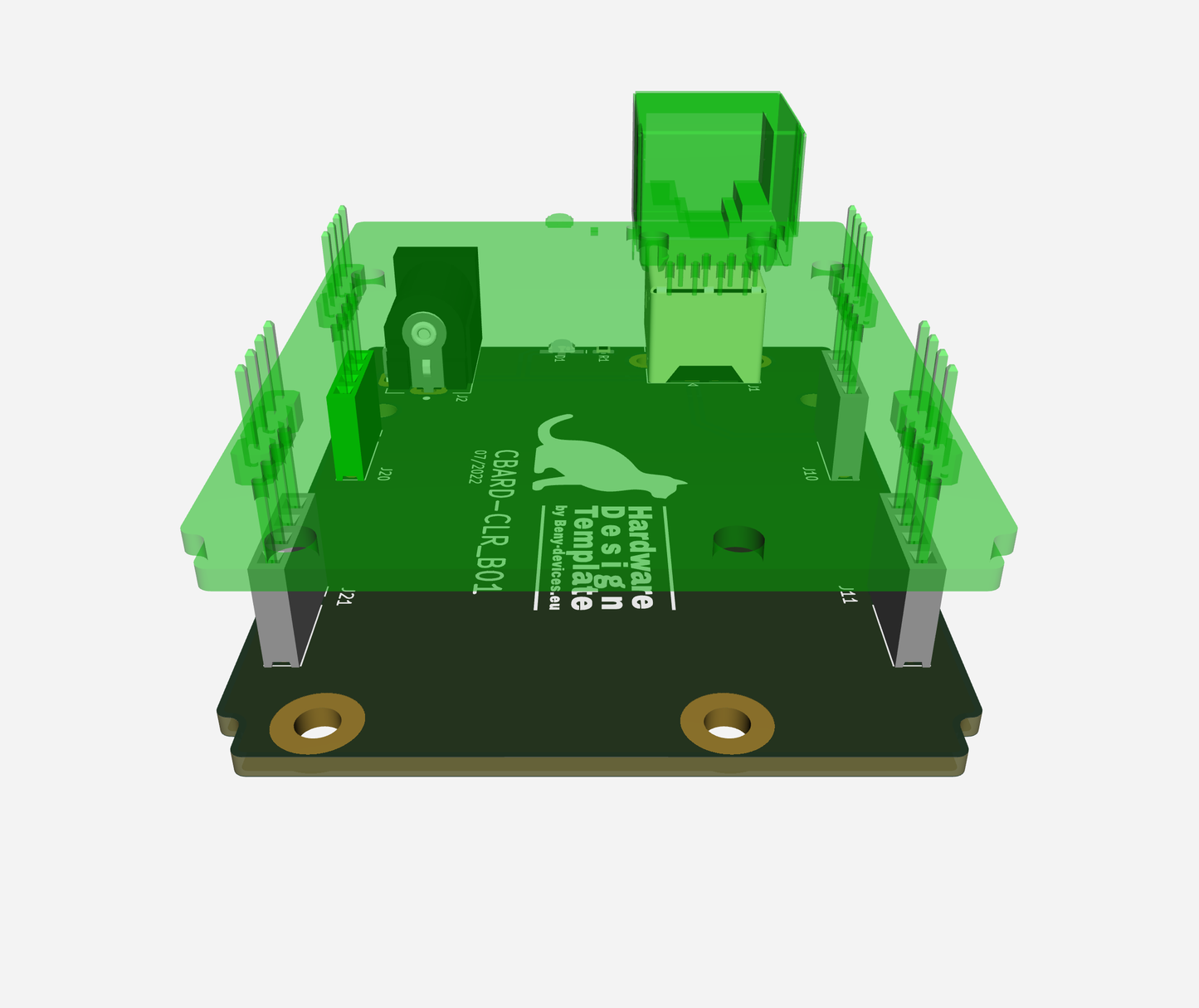

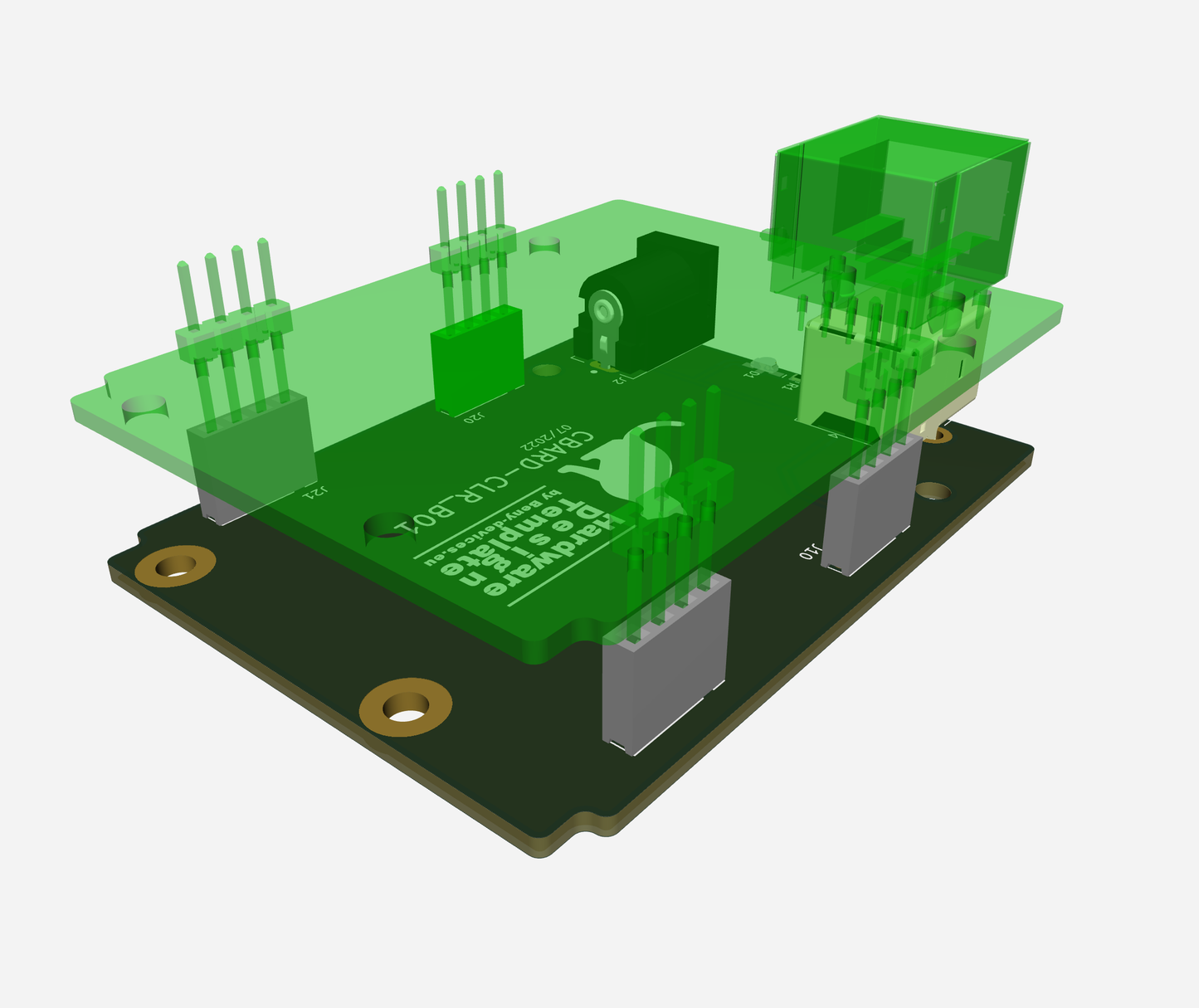

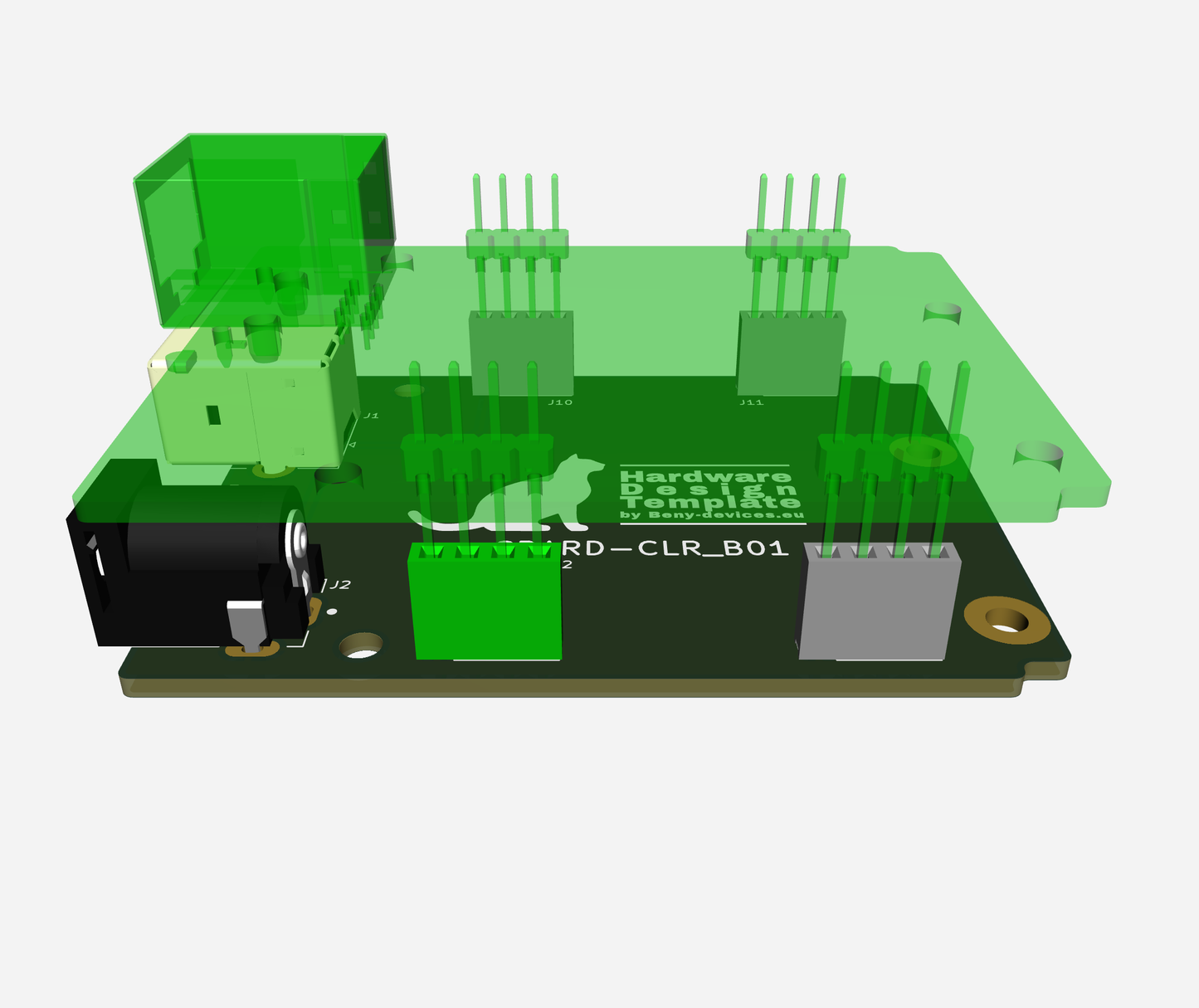

The Hardware Design Template package for the easiest schematic design and PCB layout of an Industrial node, IoT node or similar device.

The Hardware Design Template package contains:

  • Design data of the verified PCB template.
  • A design library of all used symbols.
  • A design library of all used footprints.
  • Clean and easy to order BOM of all components compatible with the enclosure openings.
  • Instructions on how to order the enclosure by yourself.

The Hardware Design Template supports:

  • PoE RJ45 jack
  • USB Type-B receptacle
  • 2.1 mm Barrel DC connector

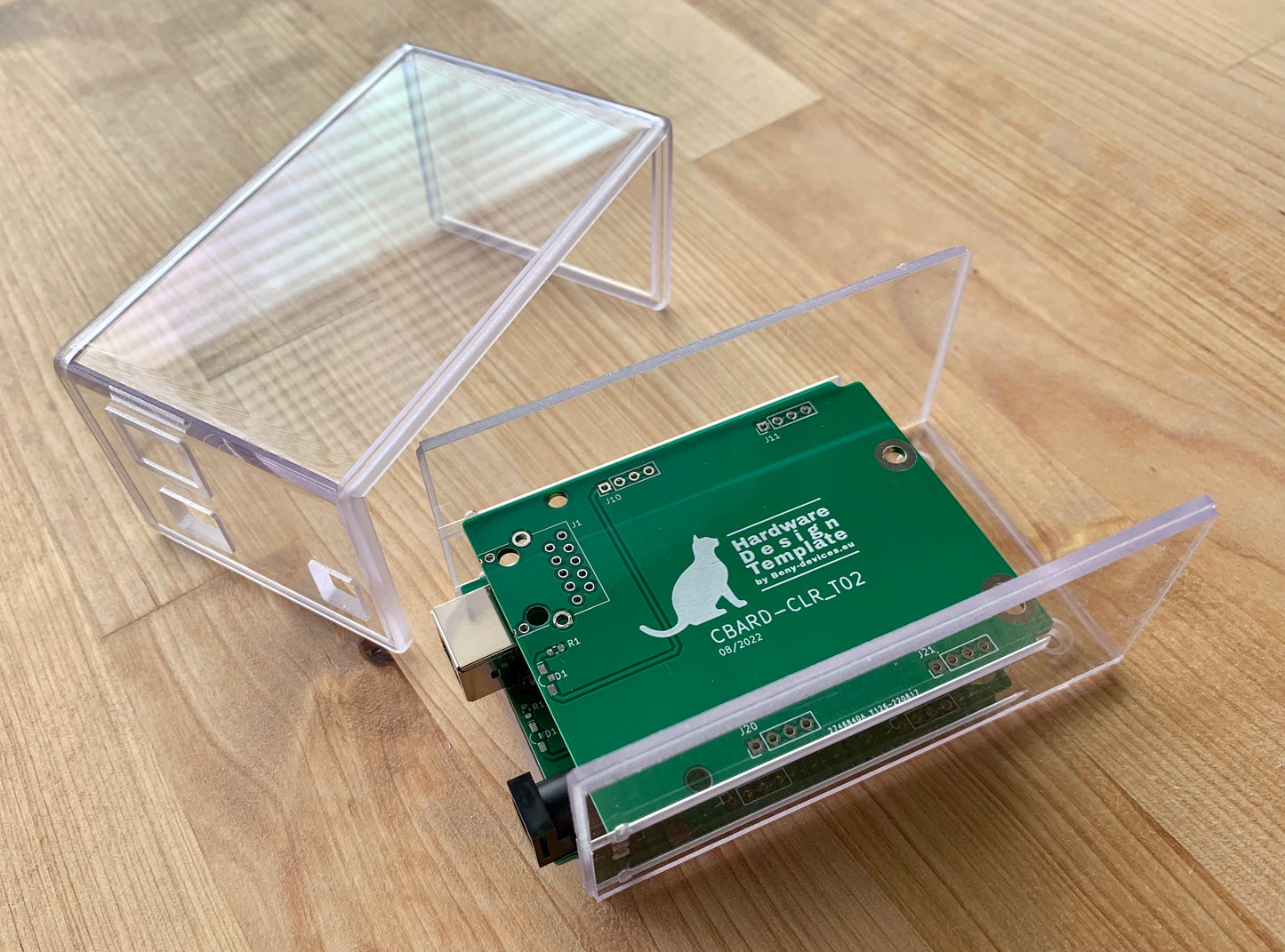

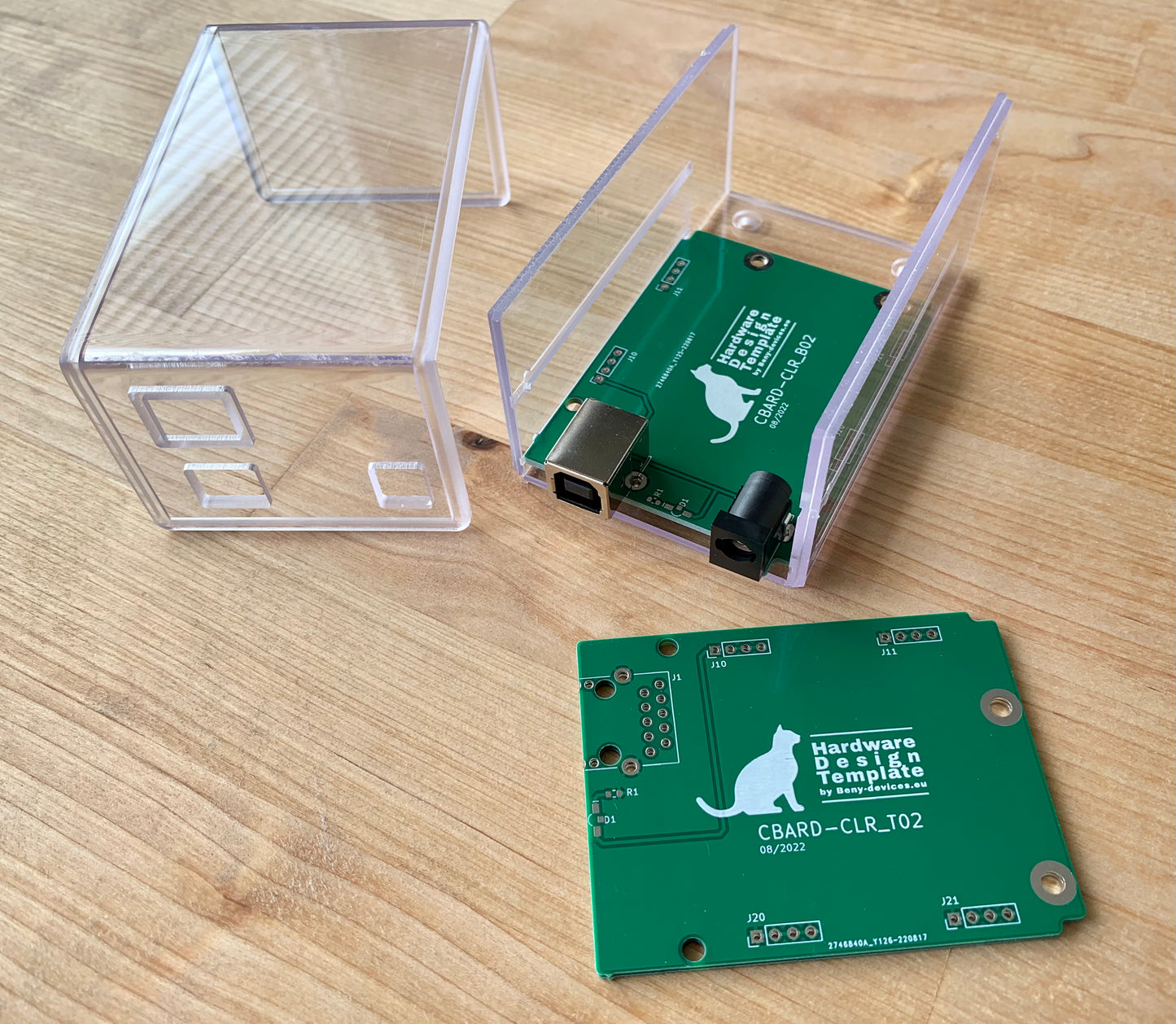

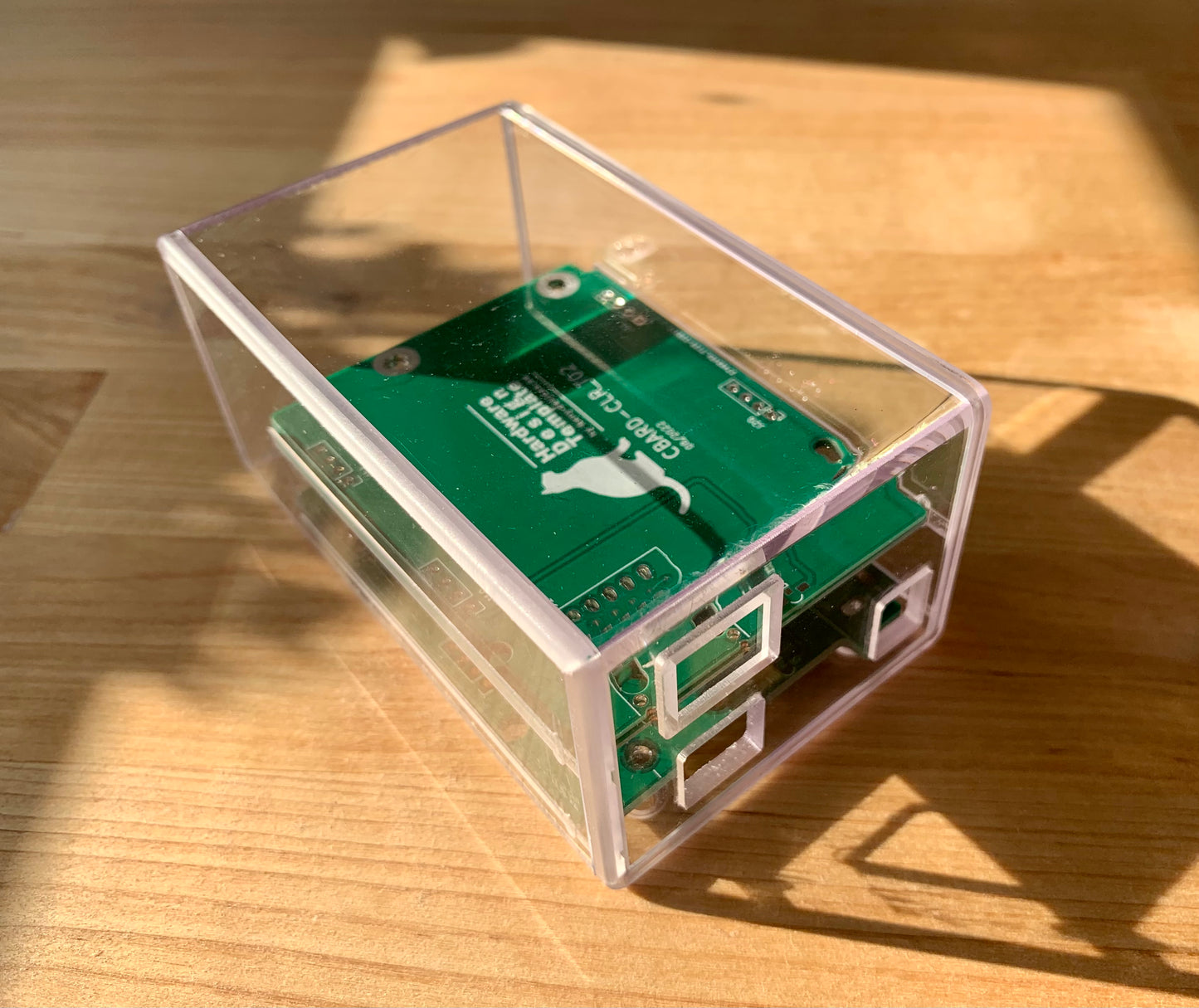

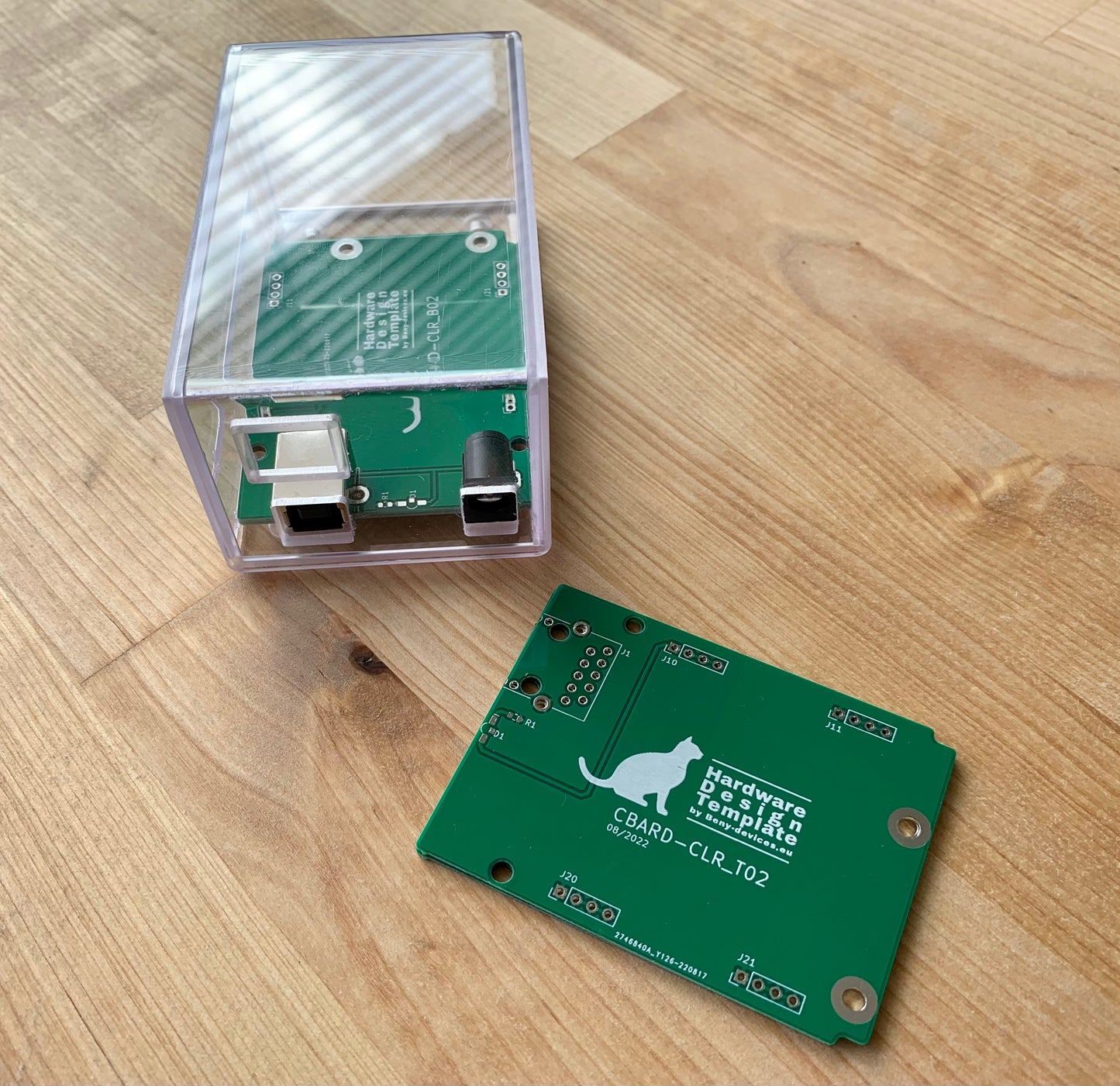

The used enclosure is Camdenboss CBARD-CLR.

What you will not get:

  • Any physical enclosure or any piece of material.

Disclaimer

💾 The Hardware Design Template is a downloadable digital product (delivery policy)

Dimensions

94.9x57.30x44 mm

View full details

A jump start

Mechanical simplicity along with tested components keep you on track to the final product.

  • ECAD project

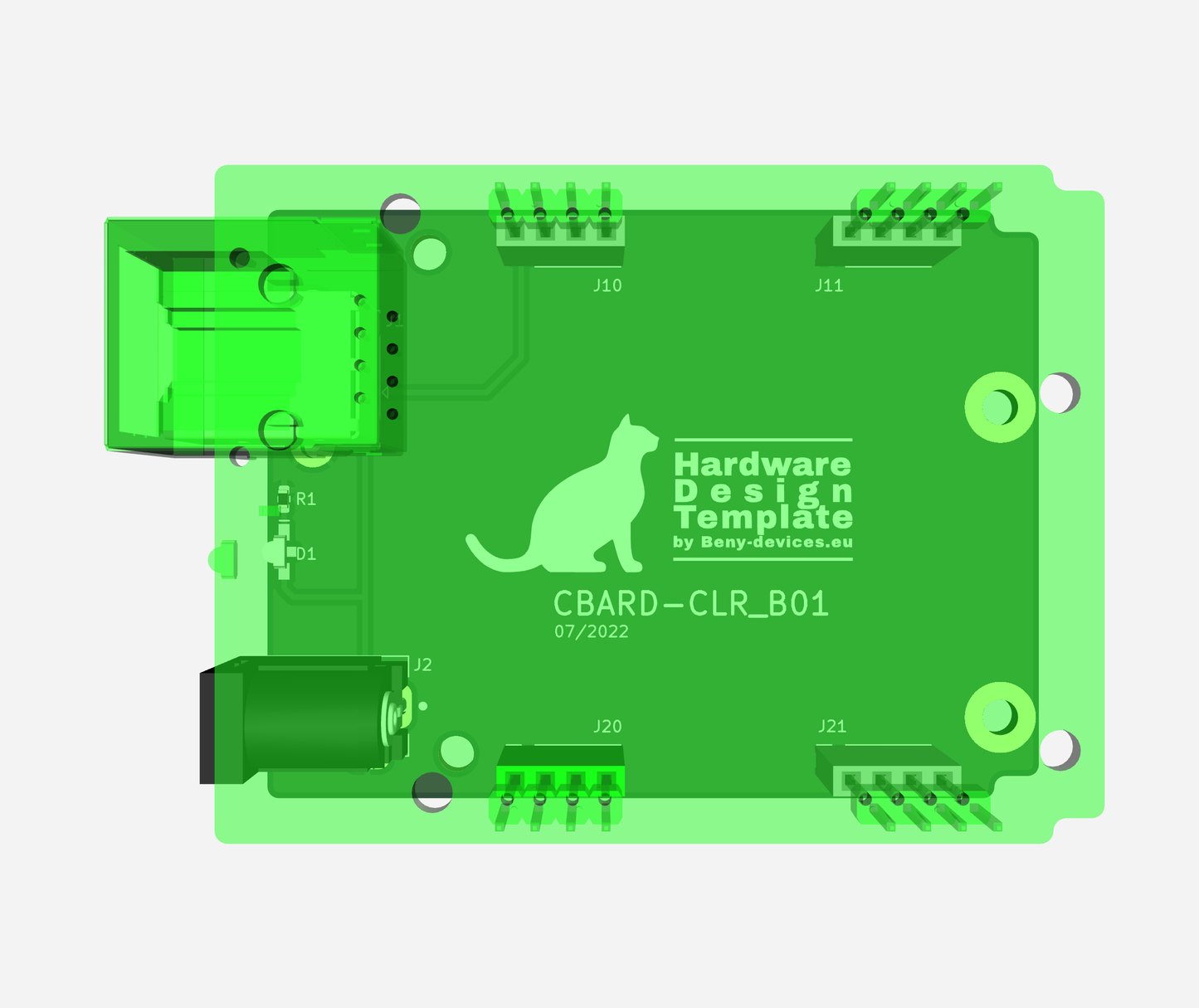

    Simple and clean ECAD project. The size of the PCB is the maximum possible and the shape always follows the enclosure borders.

  • Bill of material

    List of all recommended components that were verified to be perfectly fiting the enclosure openings.
