What you will get:
The Hardware Design Template Schematic package for the most straightforward schematic design.
The Hardware Design Template Schematic package contains the following:

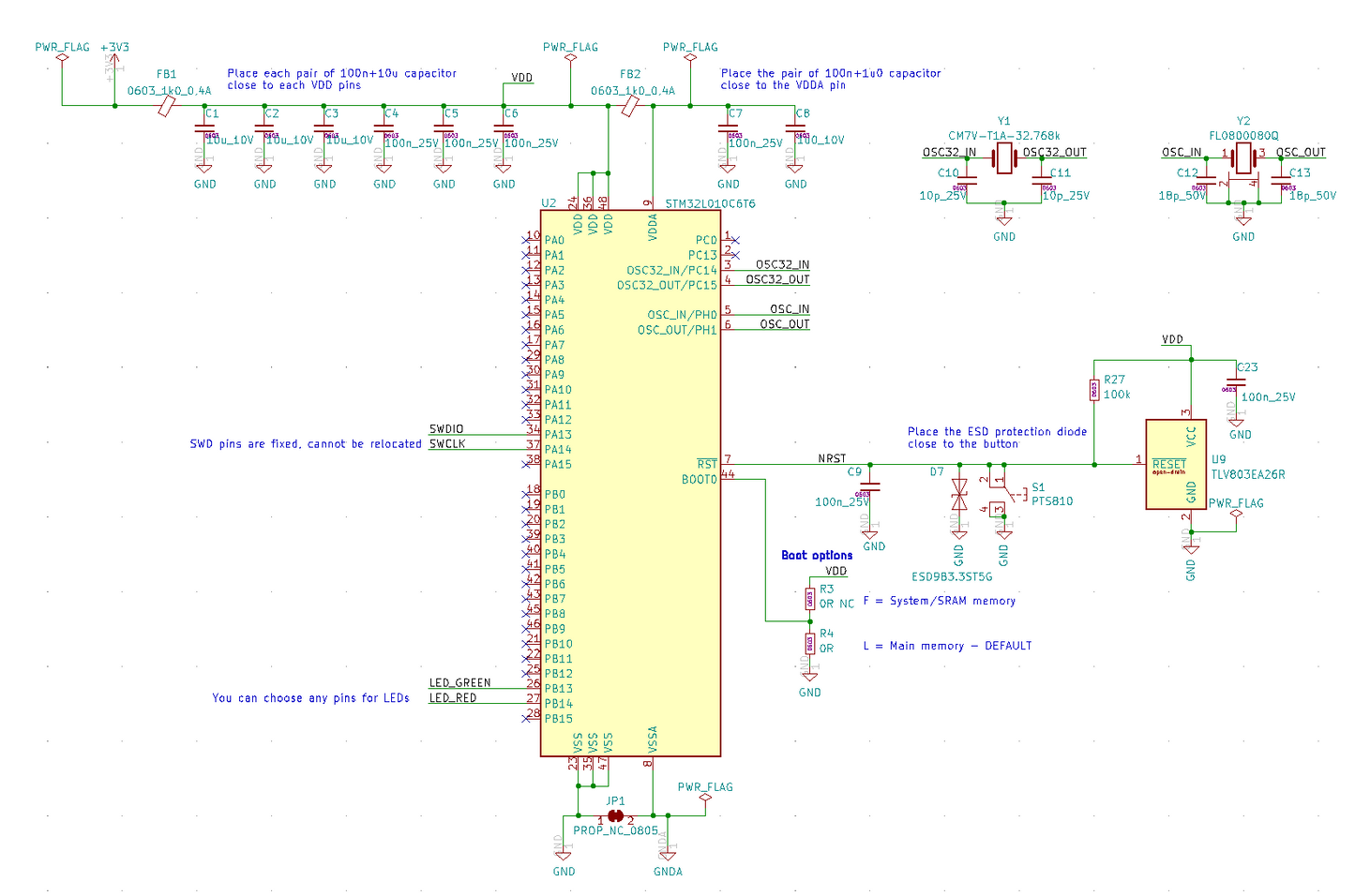

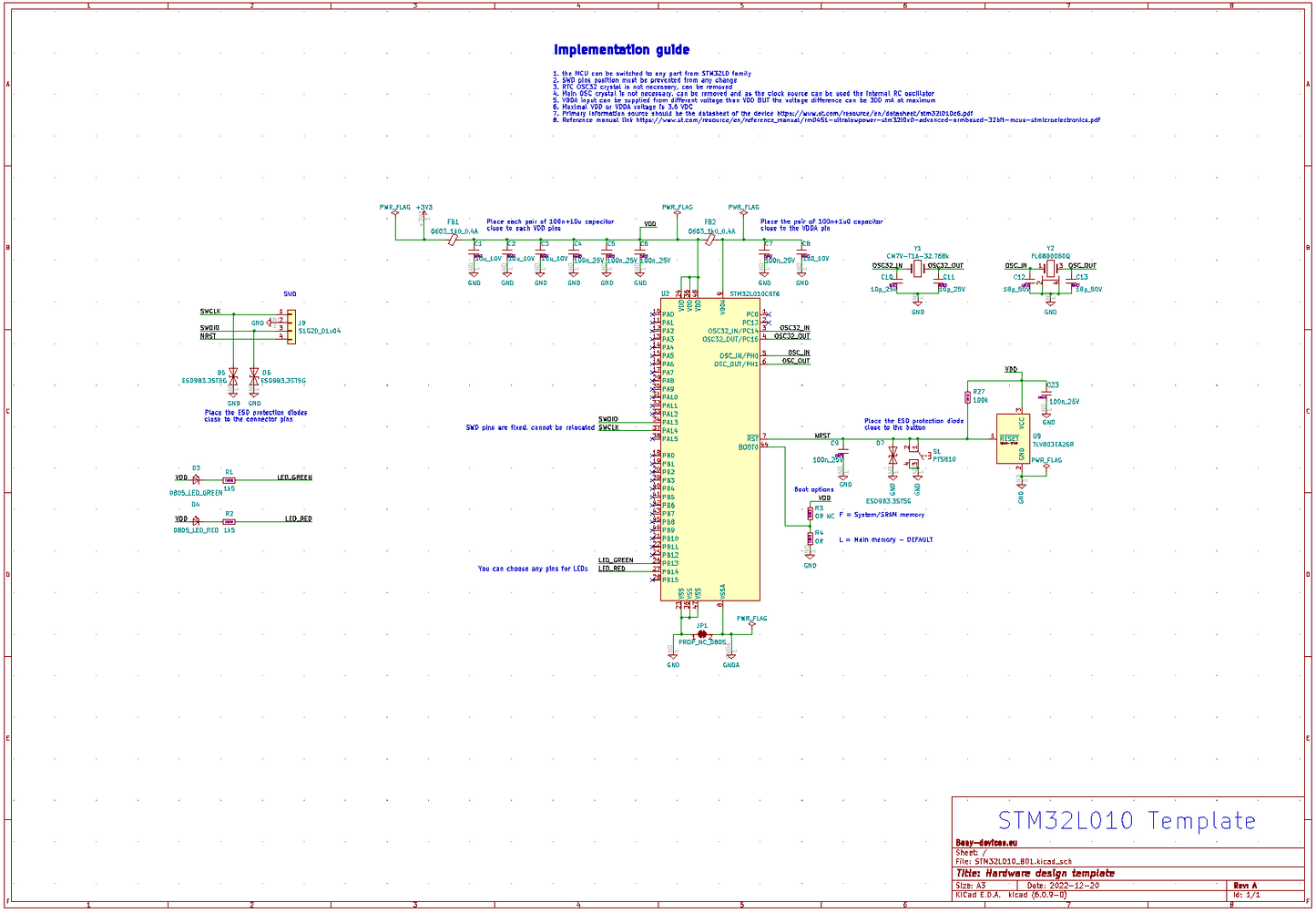

- A minimal but verified and fully functional schematic drawing.
- A design library of all used symbols.
- A design library of all used footprints.
- Clean and easy-to-order BOM of all components used in the schematic.
- Brief but always to the point Implementation guide with notes in the schematic.
The Hardware Design Template Schematic package supports the following:
- Generic usage of STM32L010C6T6 MCU that can be replaced with any MCU from the same L0 family.
- Reset button.
- SWD interface with connector.
- Two status LEDs.
What you will not get:
- Any physical enclosure or any piece of material.
💾 The Hardware Design Template is a downloadable digital product (delivery policy)
A jump start
Mechanical simplicity along with tested components keep you on track to the final product.
Simple and clean ECAD project. The size of the PCB is the maximum possible and the shape always follows the enclosure borders.
Bill of material
List of all recommended components that were verified to be perfectly fiting the enclosure openings.
