Square Art-case type A

Square Art-case type A

Regular price €4,90 EUR
Regular price Sale price €4,90 EUR
Sale Sold out
Tax included.
Data format

What you will get:

The Hardware Design Template package for the easiest schematic design and PCB layout of a Smart home node, IoT node or similar device.

The Hardware Design Template package contains:

  • Design data of the verified PCB template.
  • Instructions on how to order the enclosure by yourself.

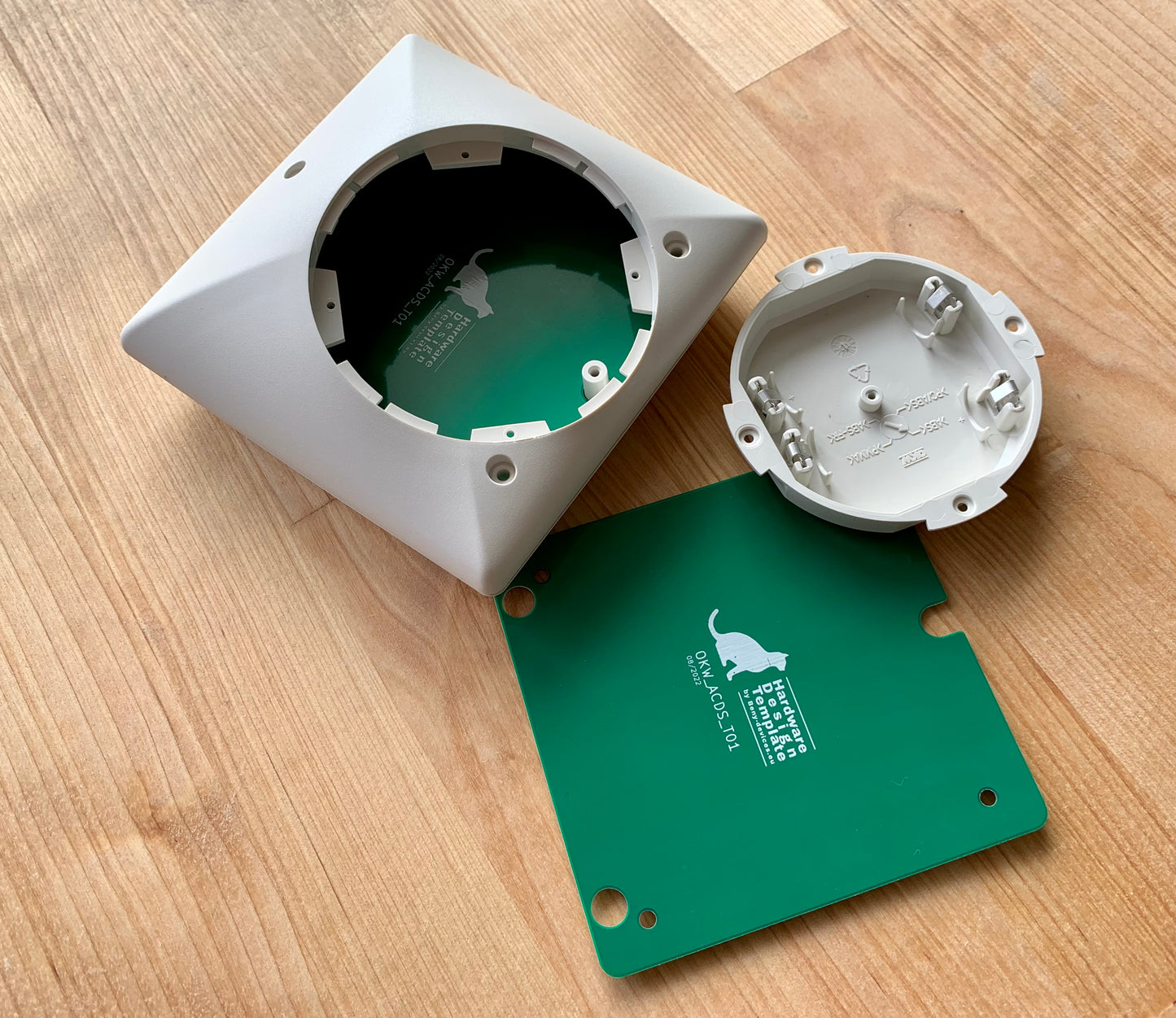

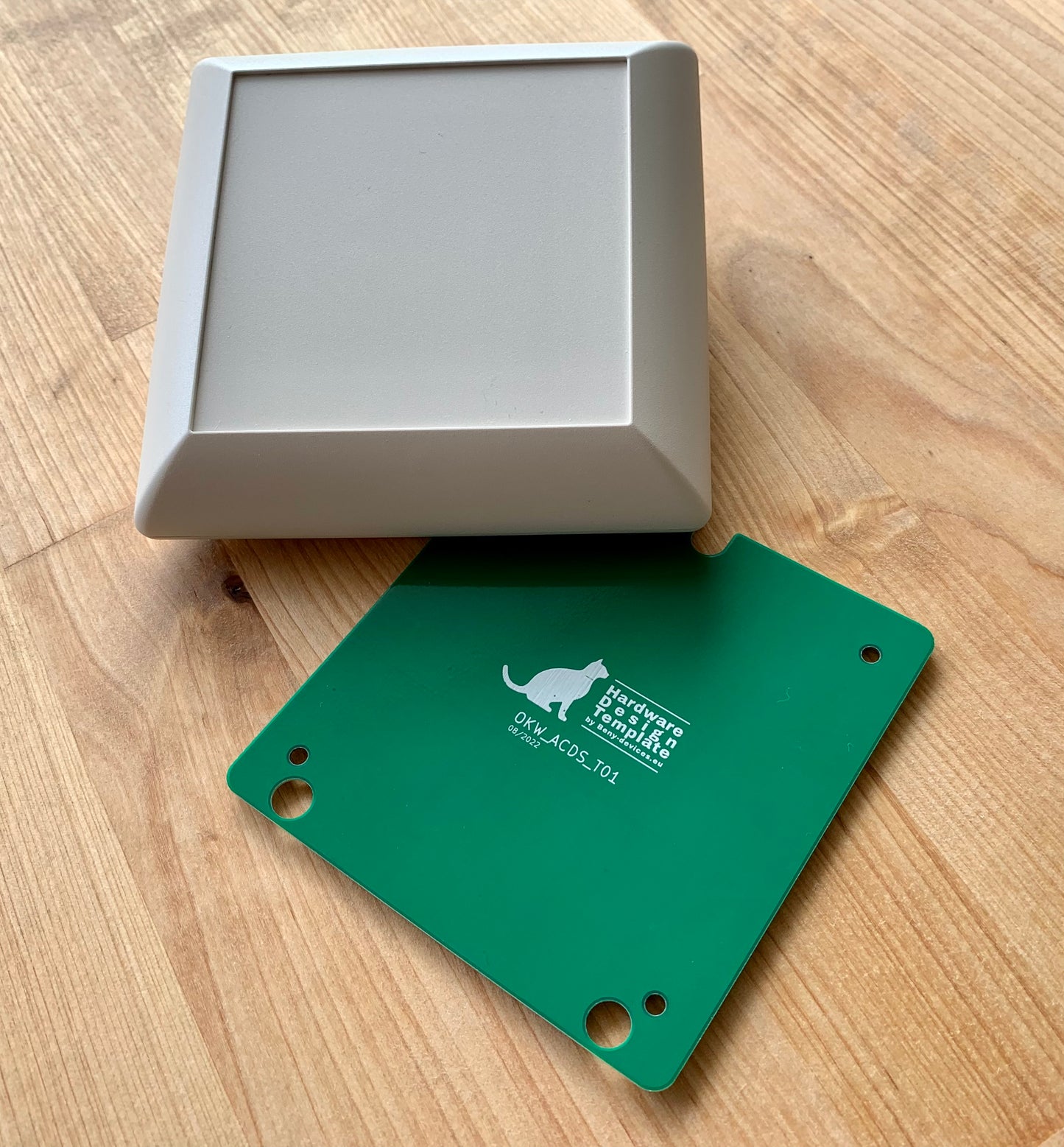

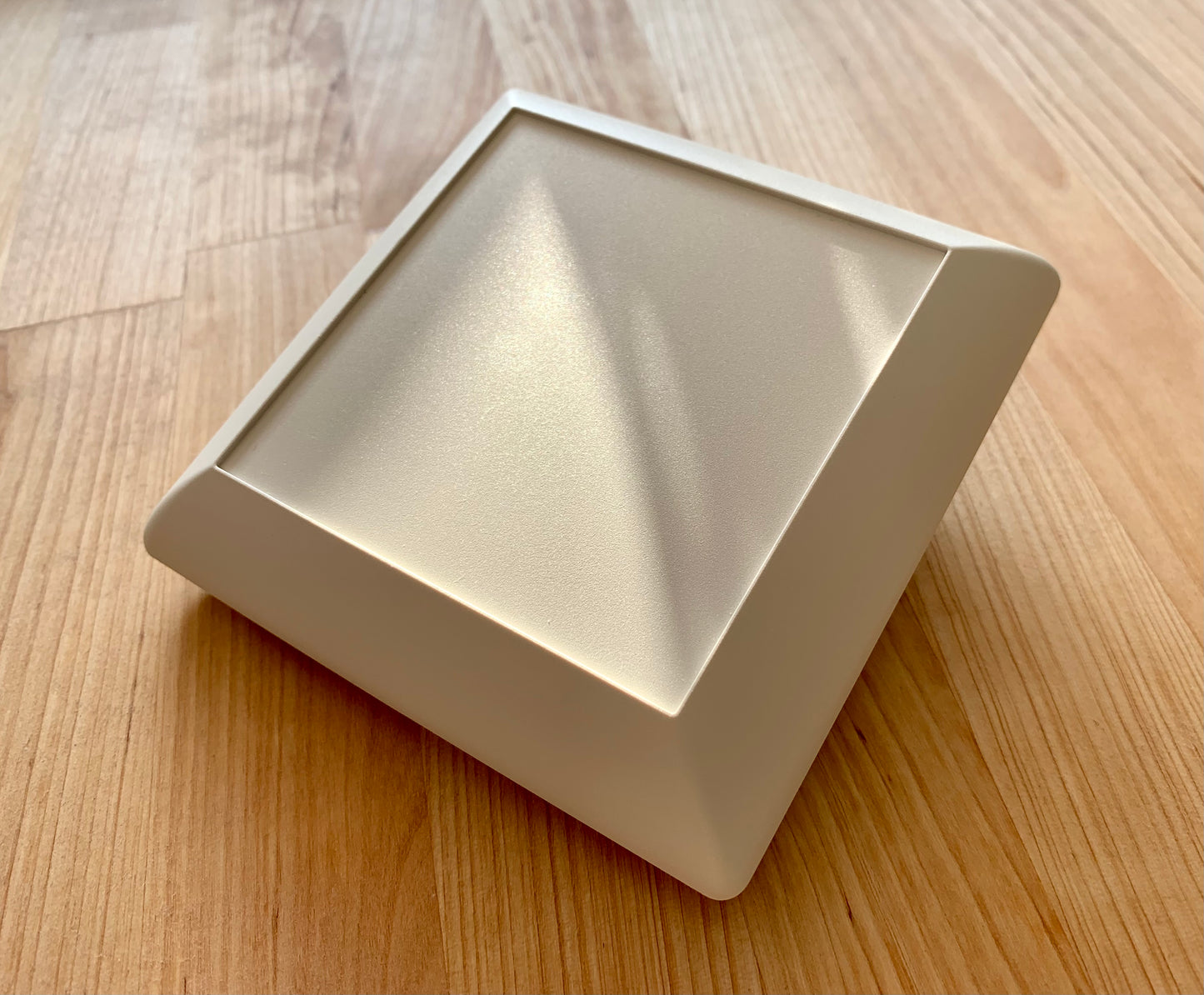

    The used enclosure is OKW ART-CASE S110.

    What you will not get:

    • Any physical enclosure or any piece of material.

    Disclaimer

    💾 The Hardware Design Template is a downloadable digital product (delivery policy)

    Dimensions

    110x110 mm

    View full details

    A jump start

    Mechanical simplicity along with tested components keep you on track to the final product.

    • ECAD project

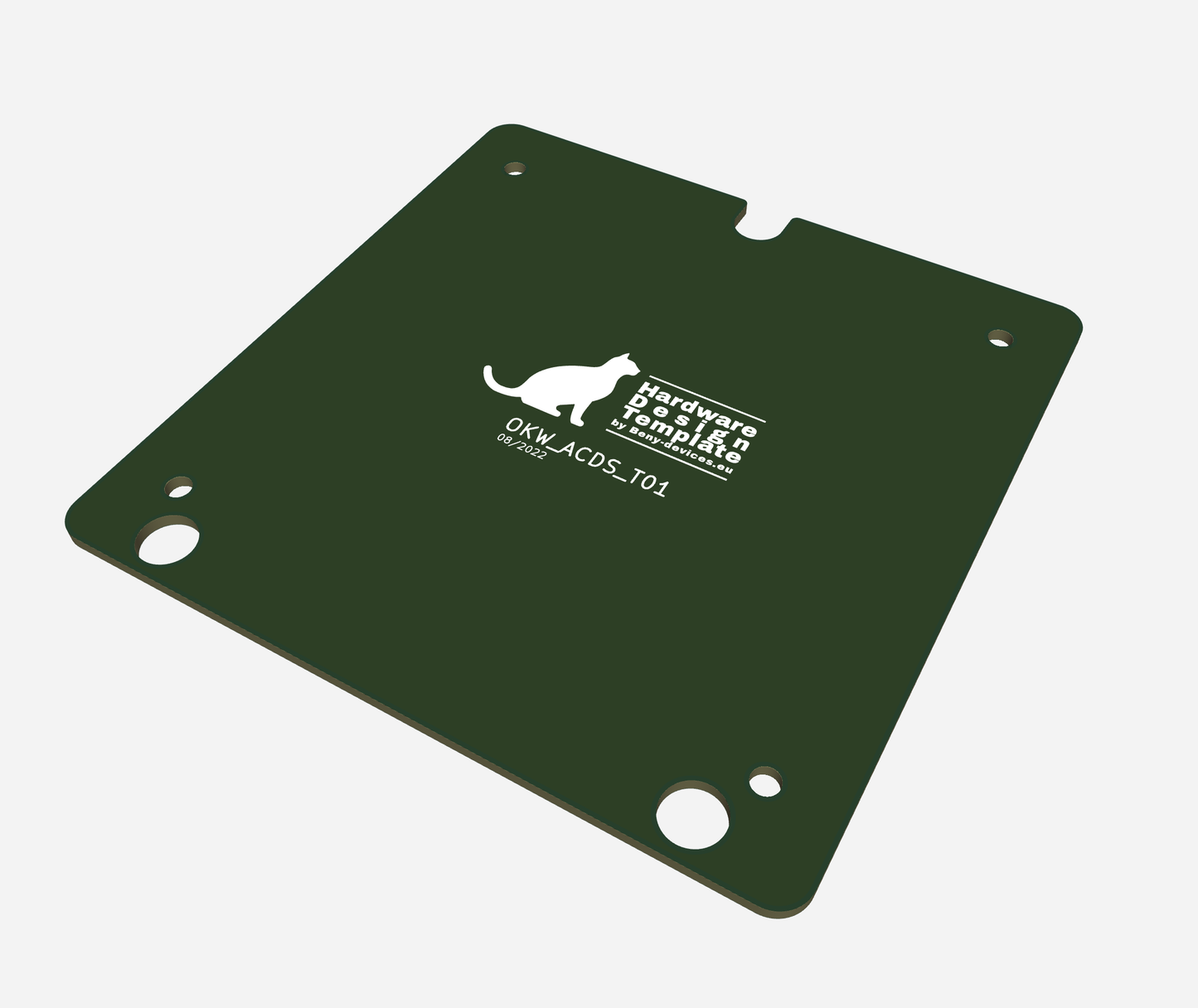

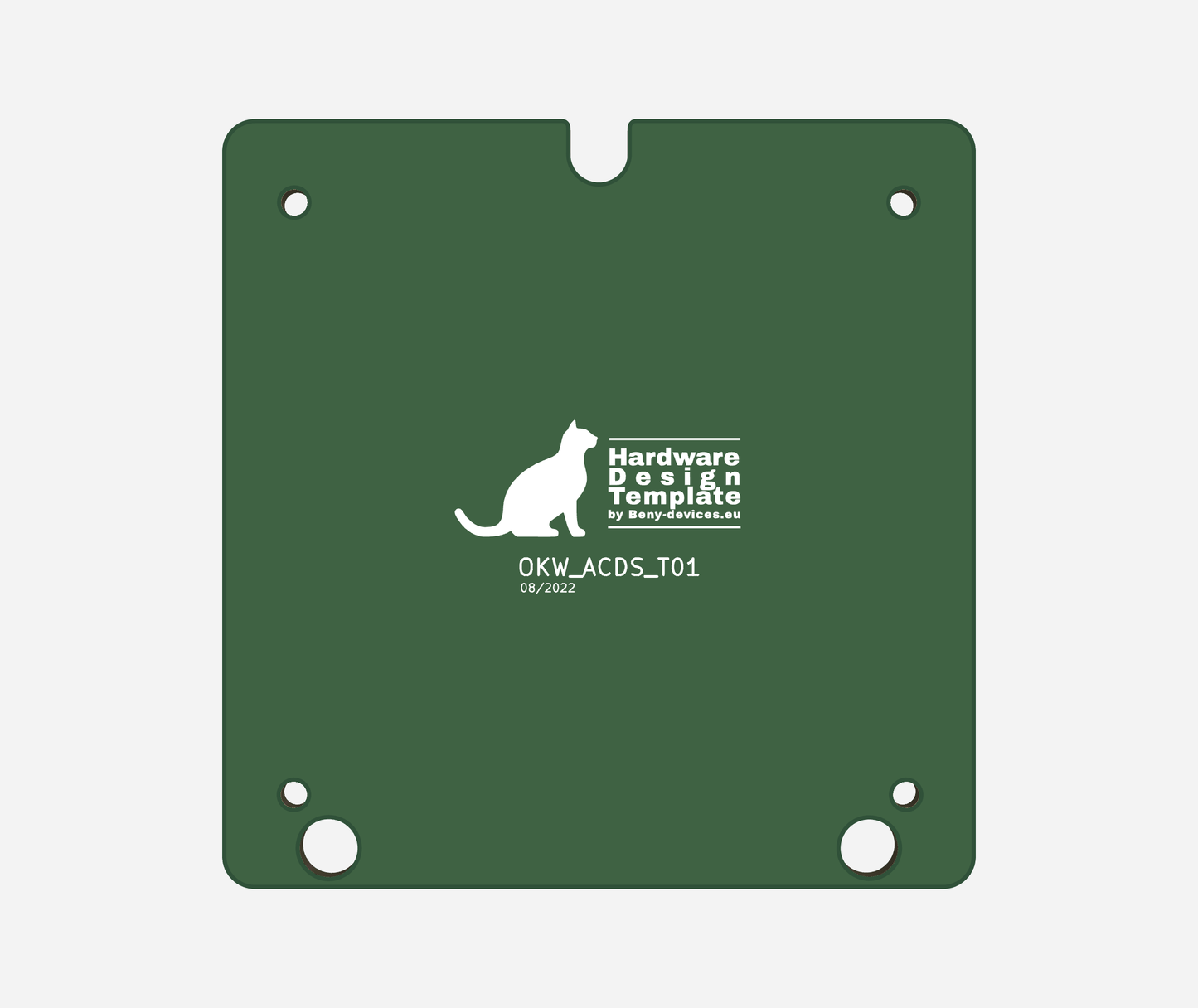

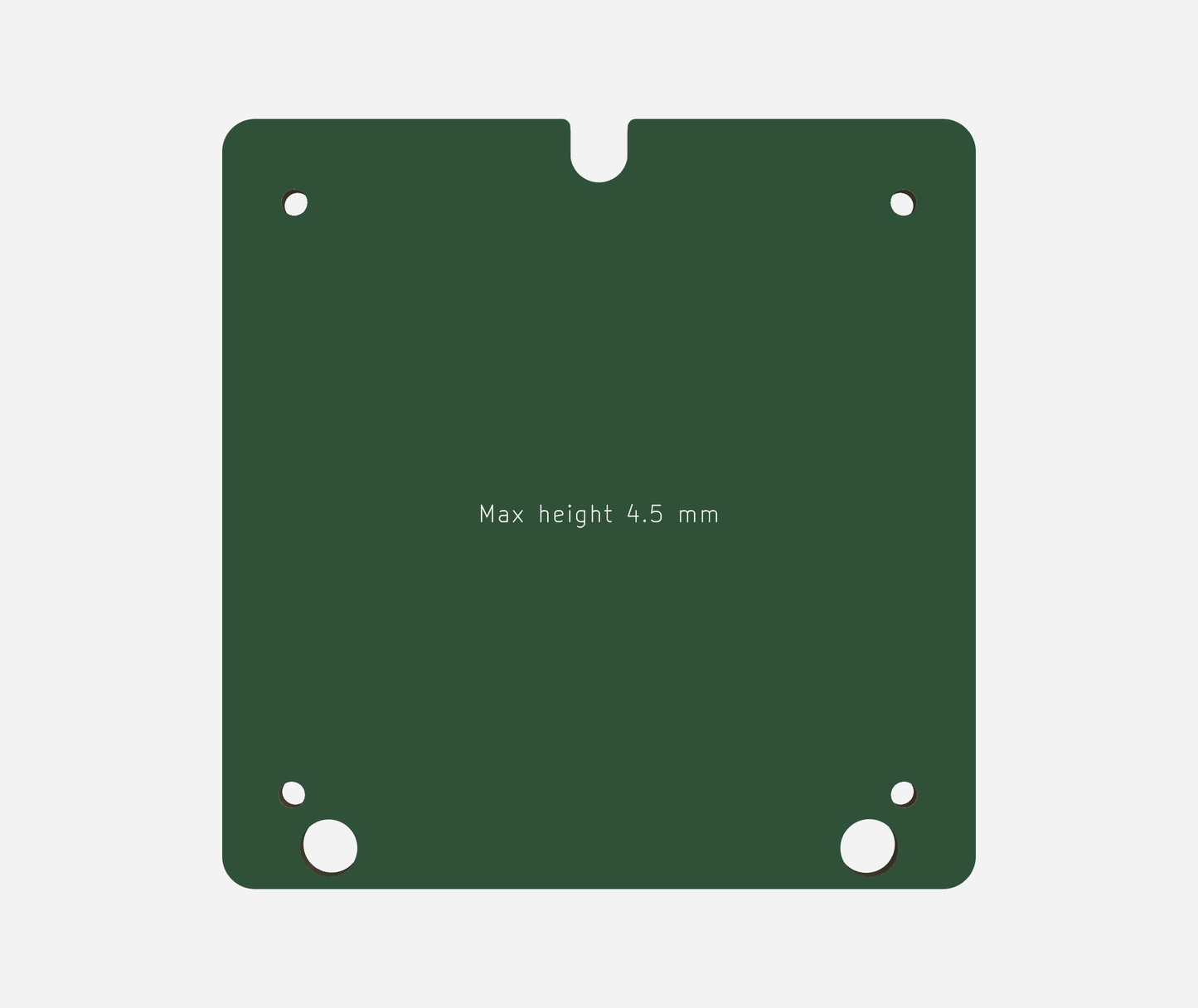

      Simple and clean ECAD project. The size of the PCB is the maximum possible and the shape always follows the enclosure borders.

    • Bill of material

      List of all recommended components that were verified to be perfectly fiting the enclosure openings.
