Data format

What you will get:

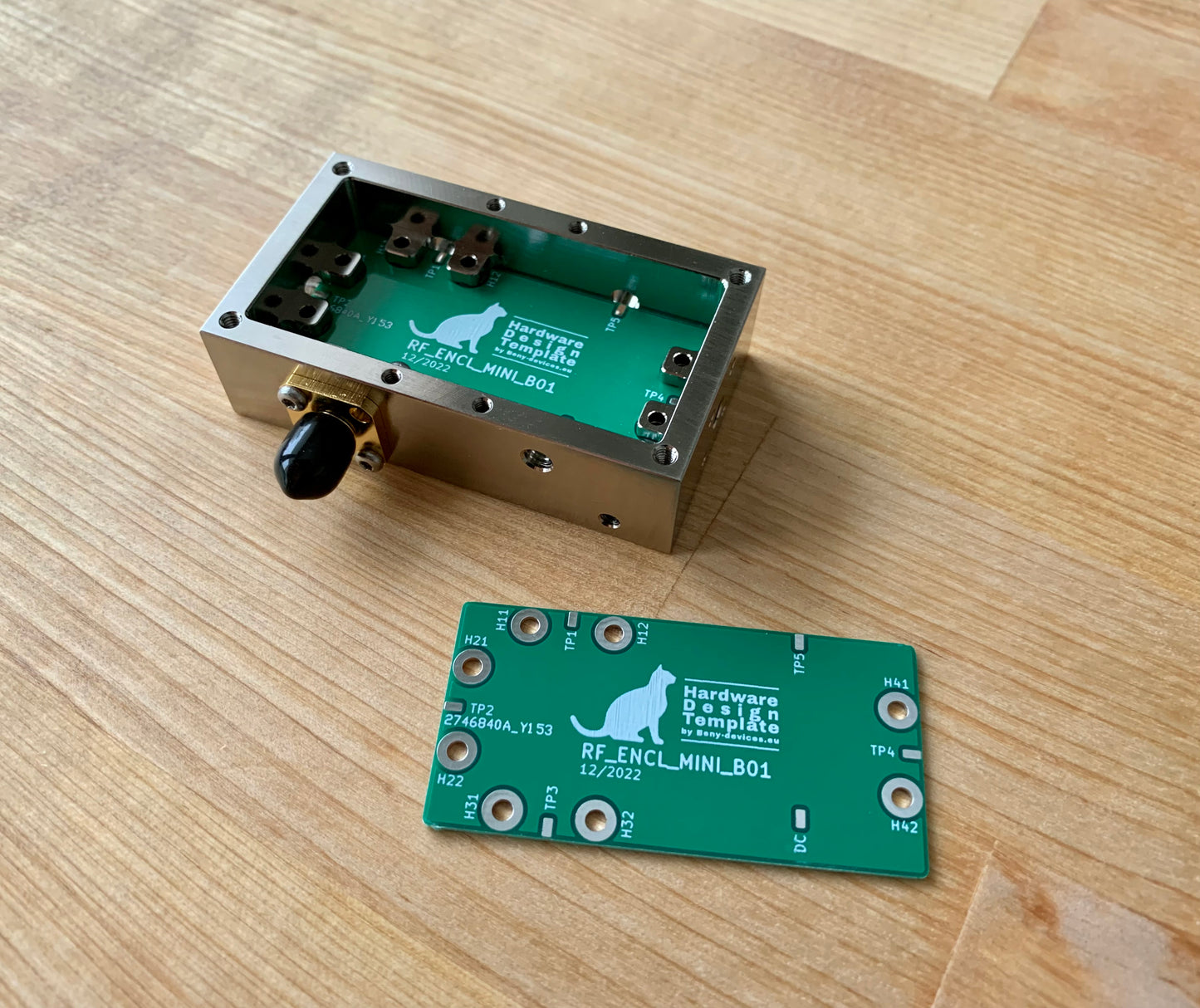

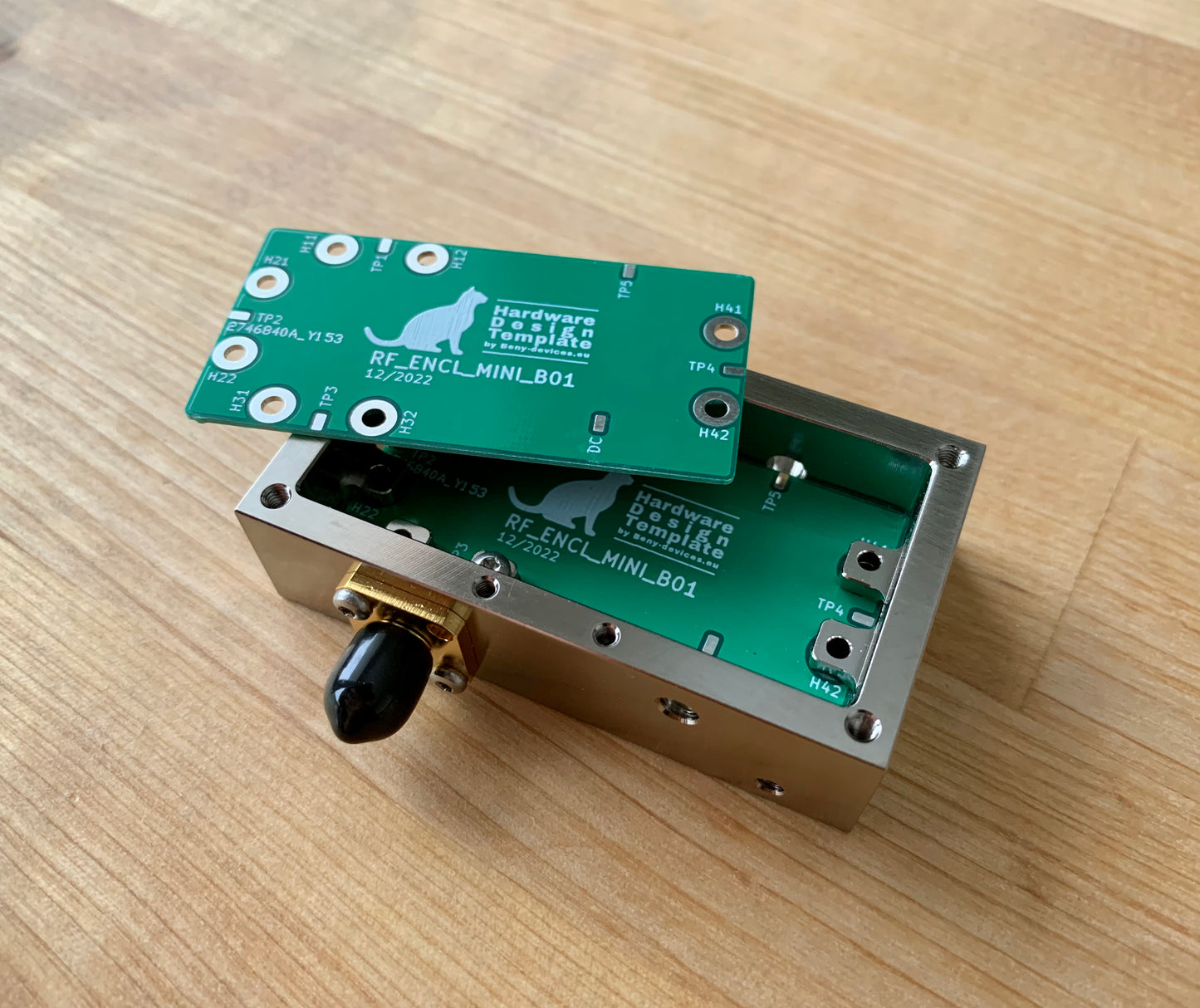

The Hardware Design Template package for the easiest schematic design and PCB layout of an RF instrument for universal aluminium enclosure boards.

The Hardware Design Template package contains the following:

  • Design data of the verified PCB template.
  • A design library of all used symbols.
  • A design library of all used footprints.
  • Clean and easy-to-order BOM of all components compatible with the enclosure openings.
  • Instructions on how to order the enclosure by yourself.

The Hardware Design Template supports the following:

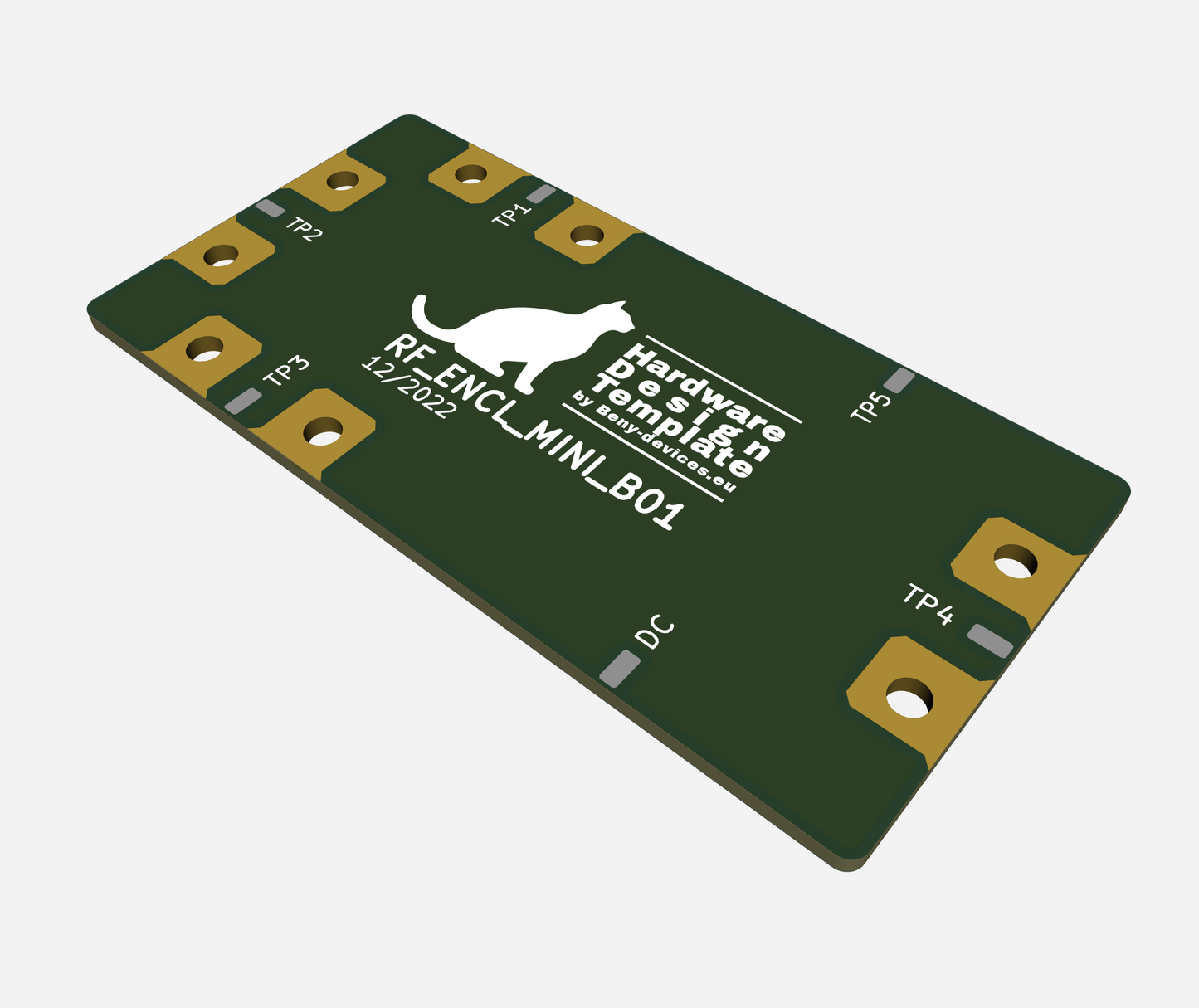

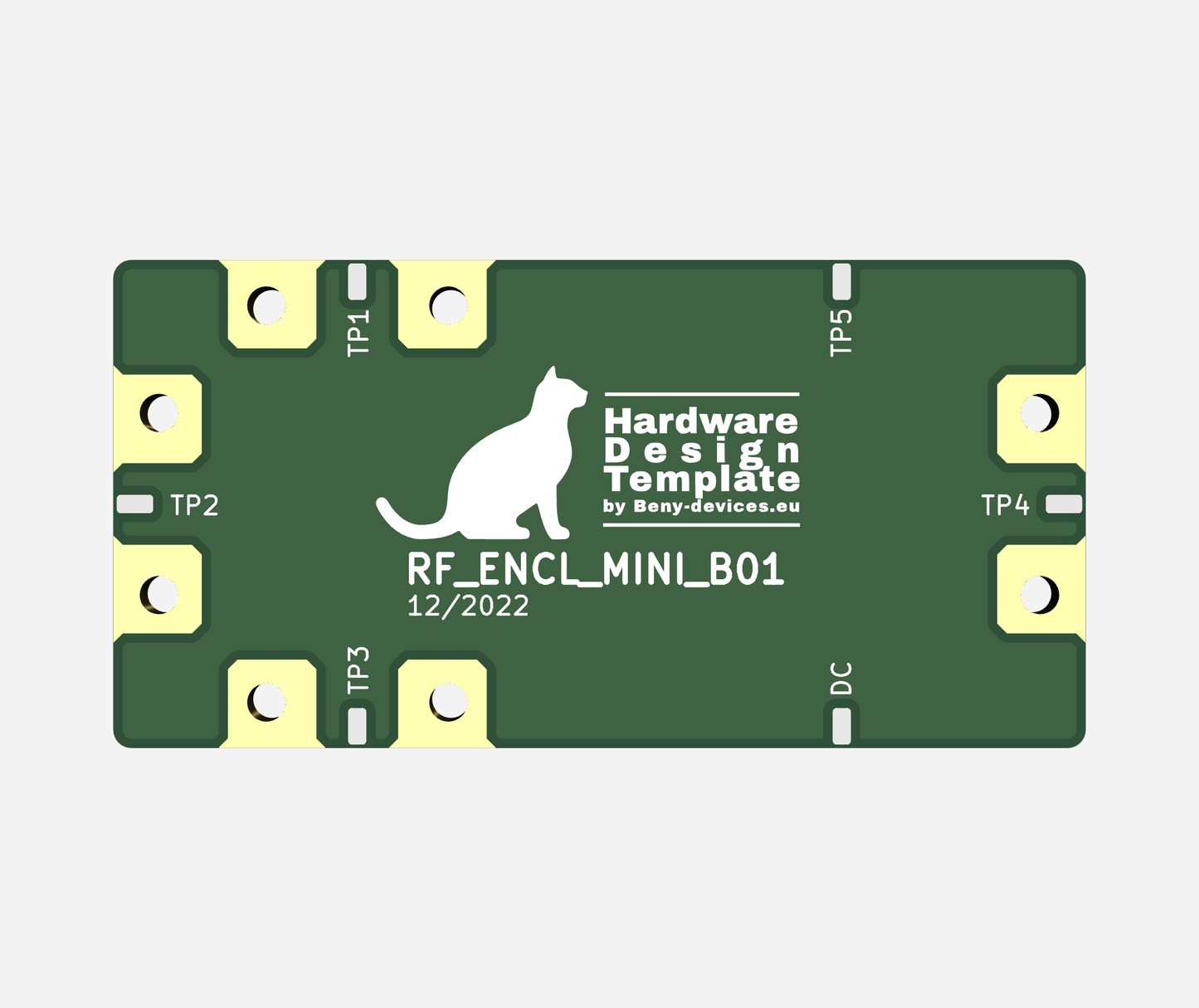

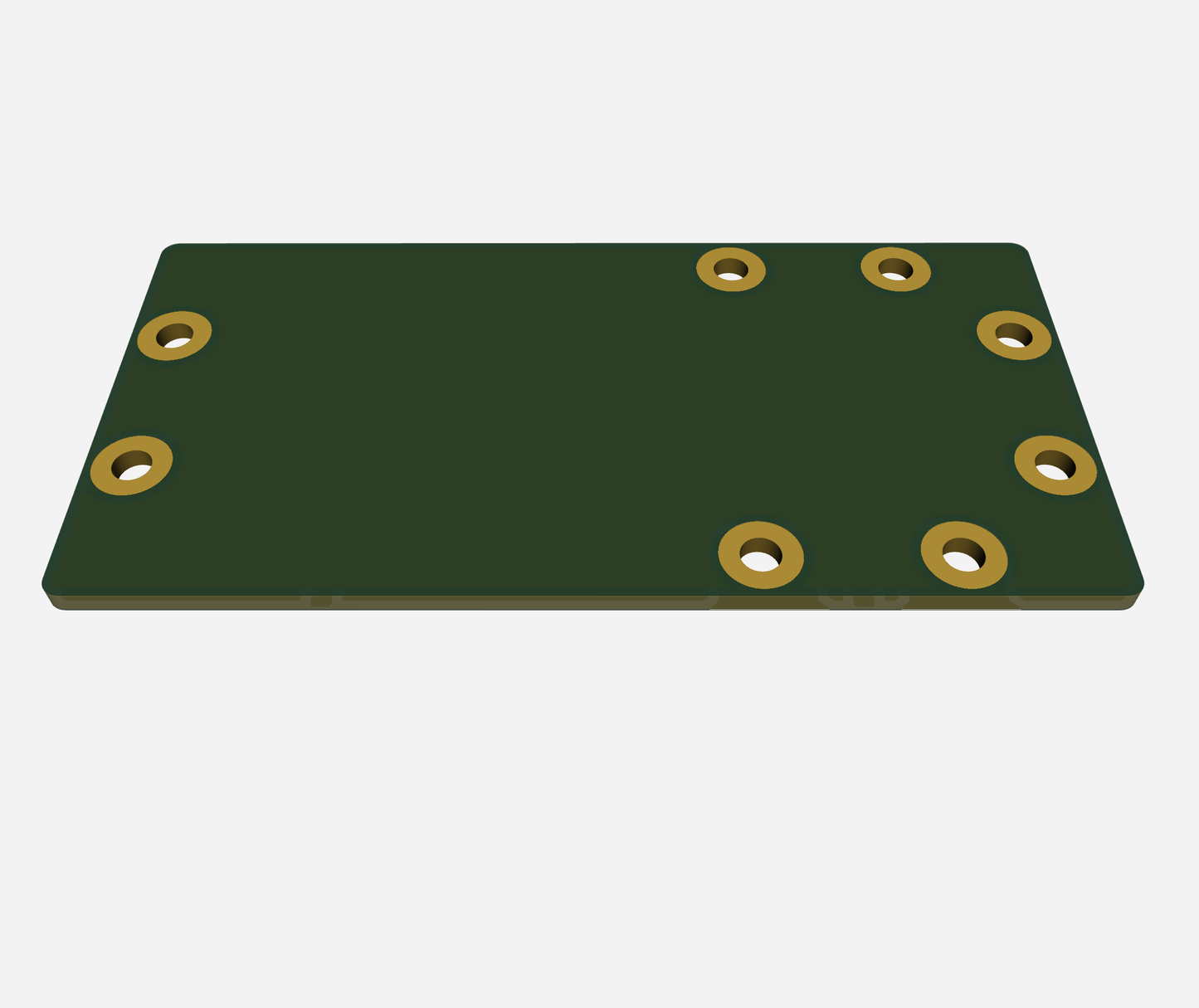

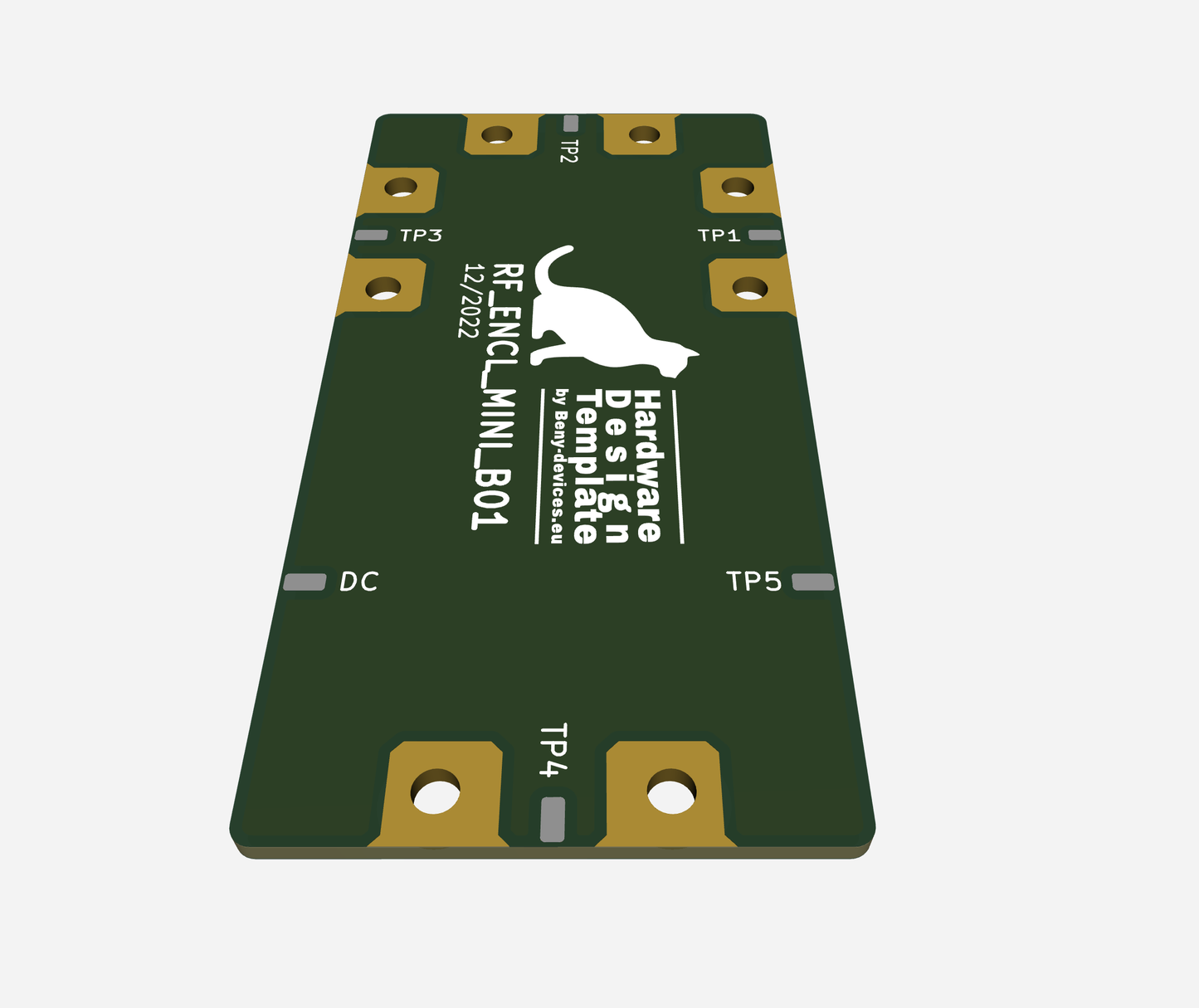

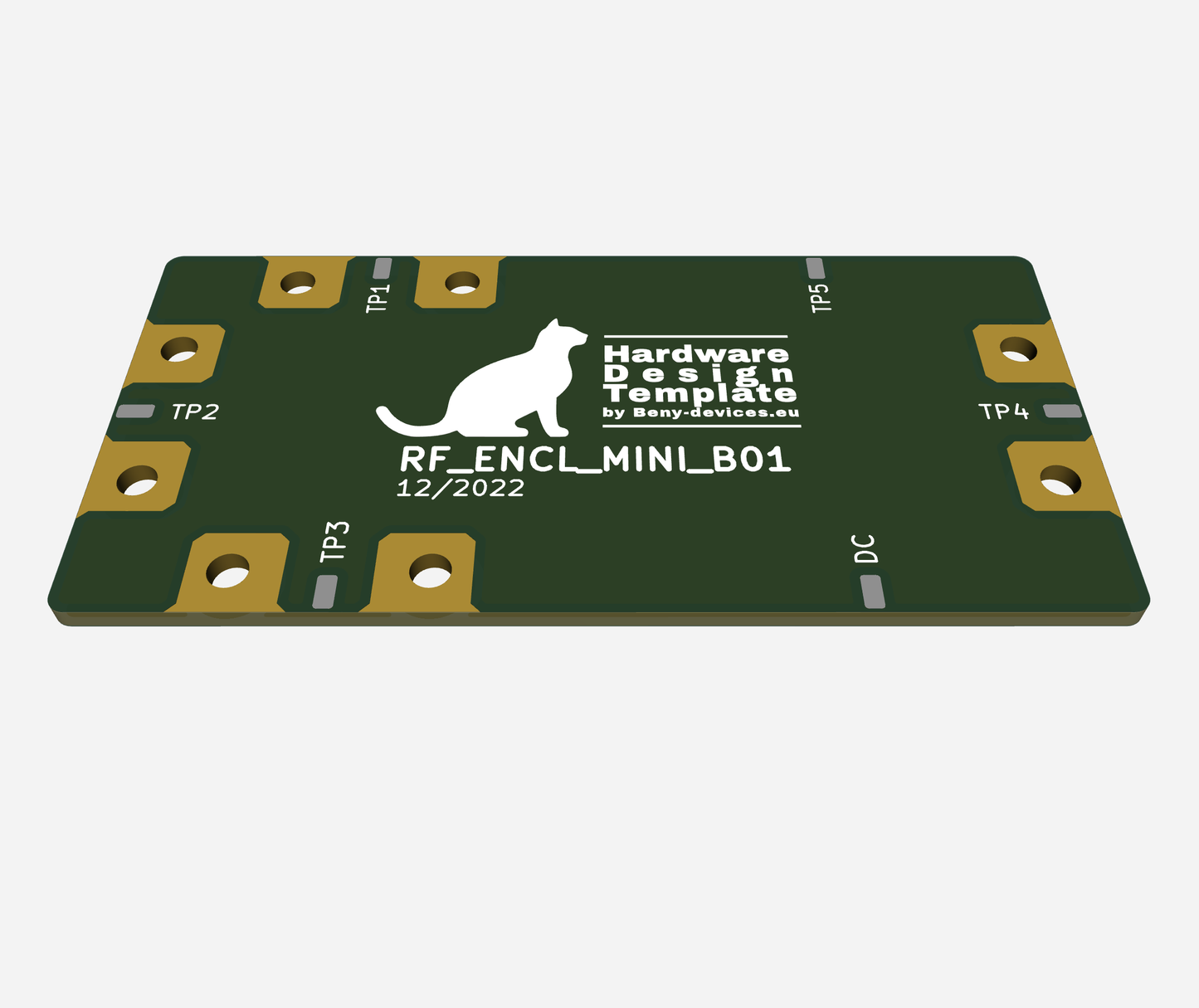

  • one RF board for five RF ports, board dimensions are 53.4 x 26.8 mm
  • DC power supply port
  • grounding port

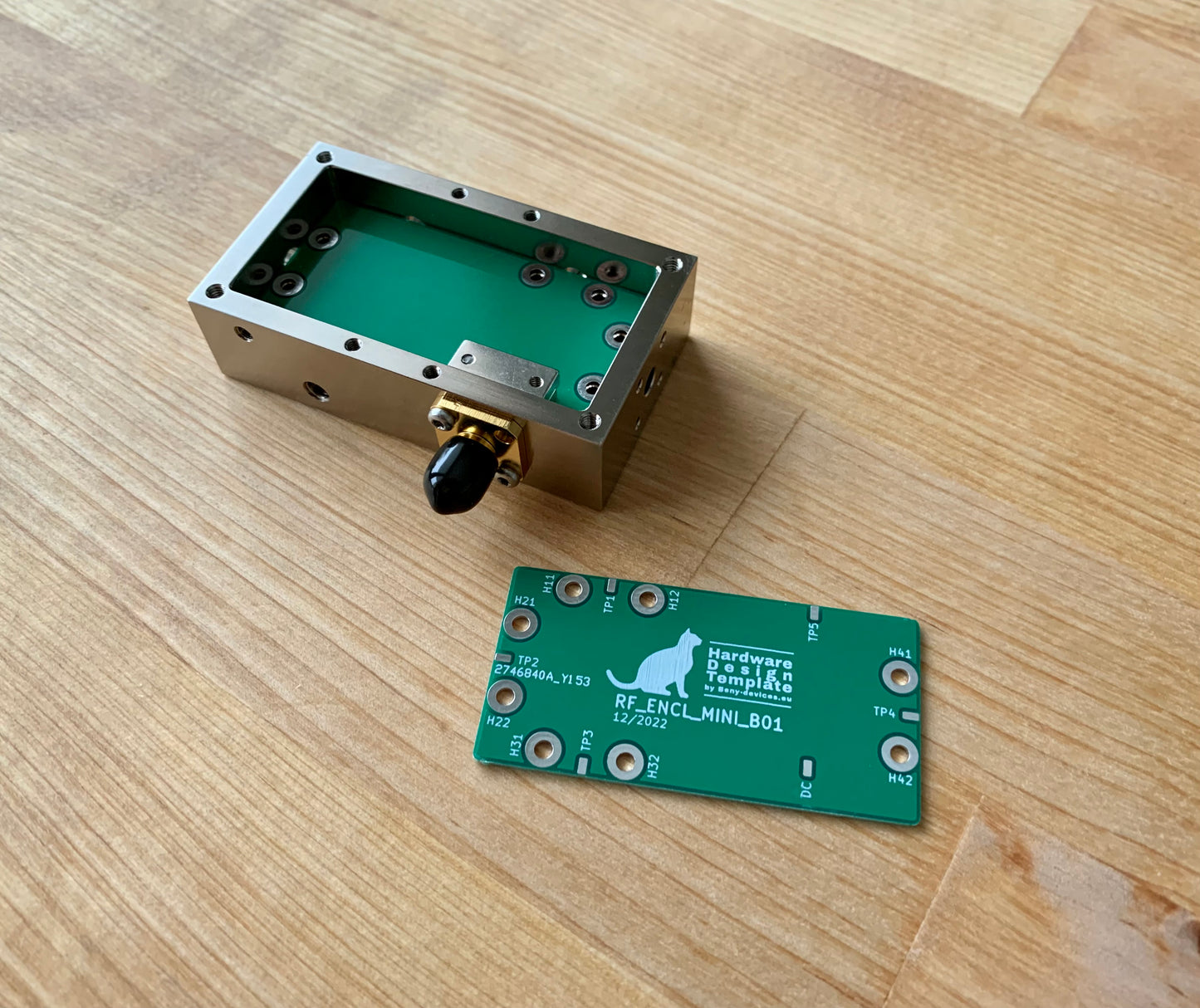

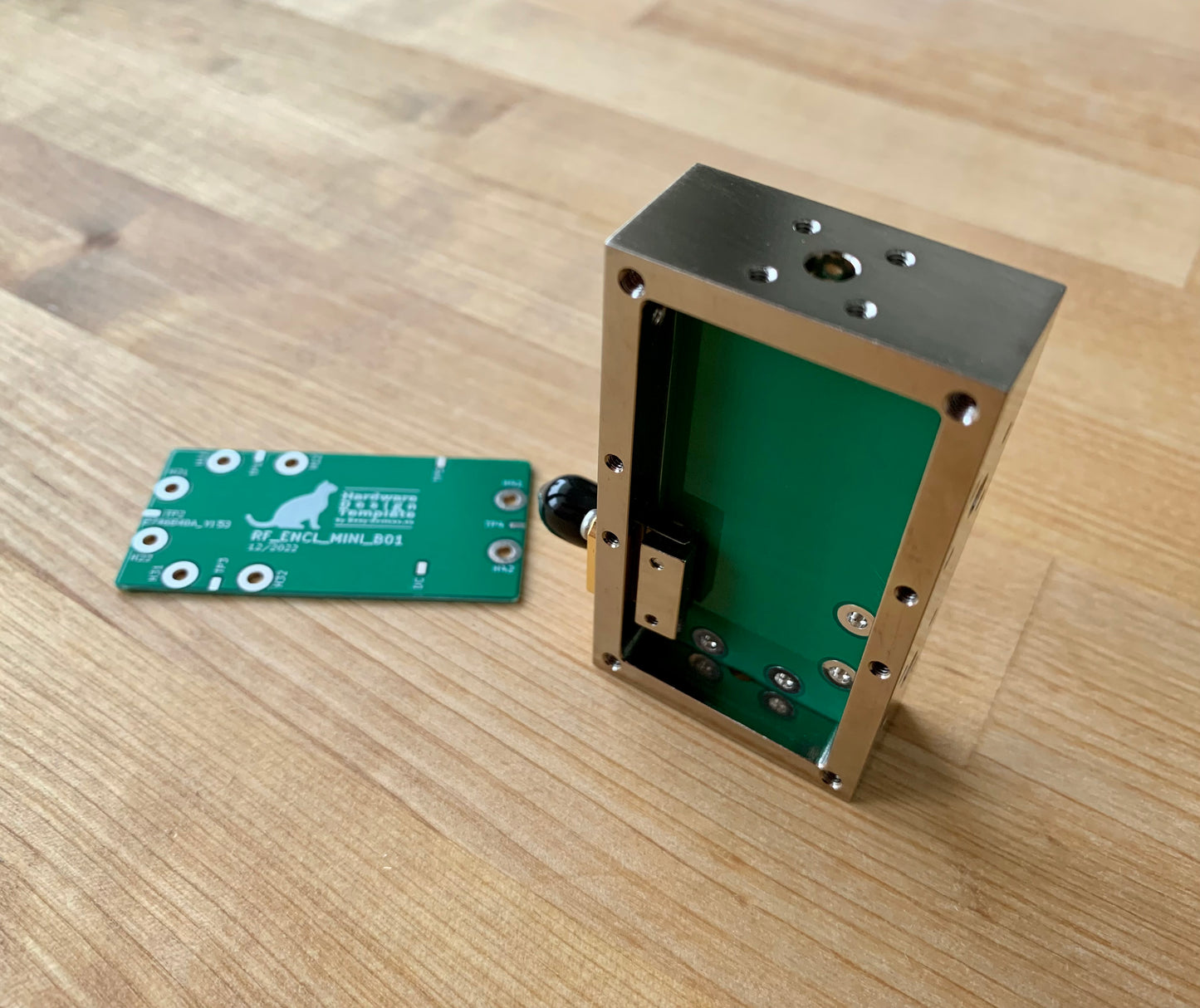

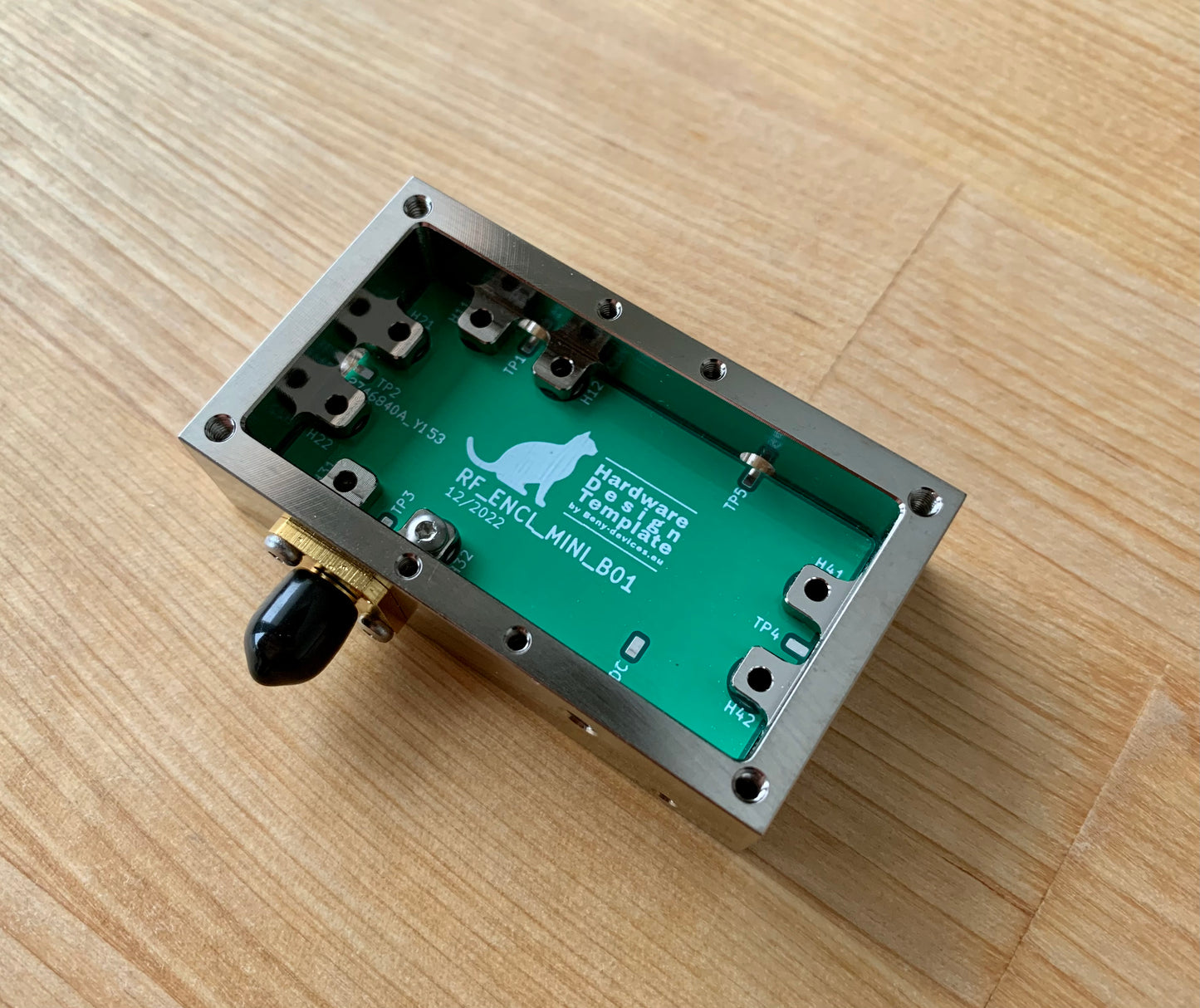

The used enclosure is RF-ENCL-MINI-EXT-FX-YF-01.

What you will not get:

The Hardware Design Template package DOES NOT contain the following:

  • Any physical enclosure or any piece of material.


💾 The Hardware Design Template is a downloadable digital product (delivery policy)


61.6 x 35 x 20.40 mm

View full details

A jump start

Mechanical simplicity along with tested components keep you on track to the final product.

  • ECAD project

    Simple and clean ECAD project. The size of the PCB is the maximum possible and the shape always follows the enclosure borders.

  • Bill of material

    List of all recommended components that were verified to be perfectly fiting the enclosure openings.
