PCI Express Mini Full size

PCI Express Mini Full size

Regular price $17.00 USD
Regular price Sale price $17.00 USD
Sale Sold out
Data format

What you will get:

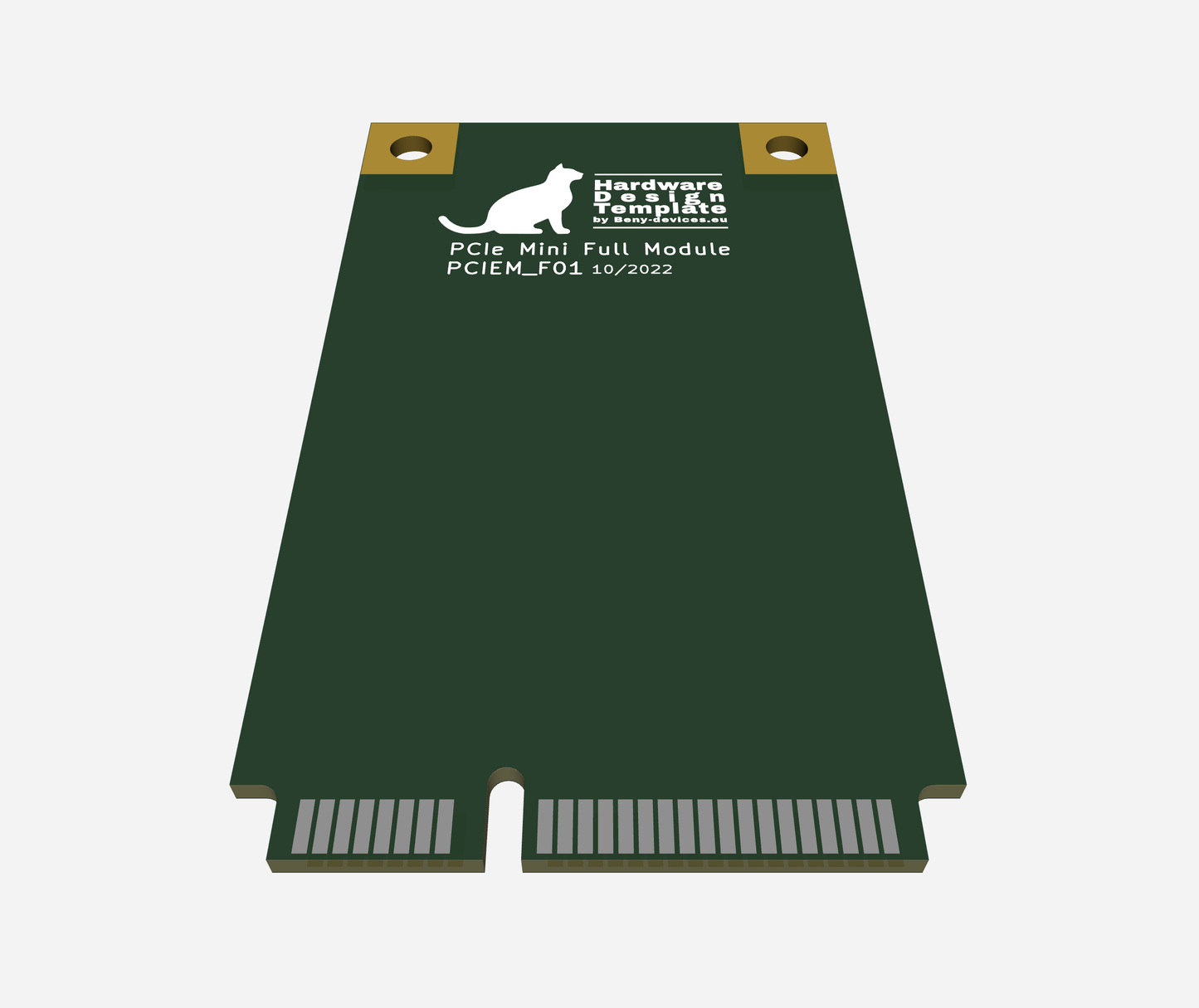

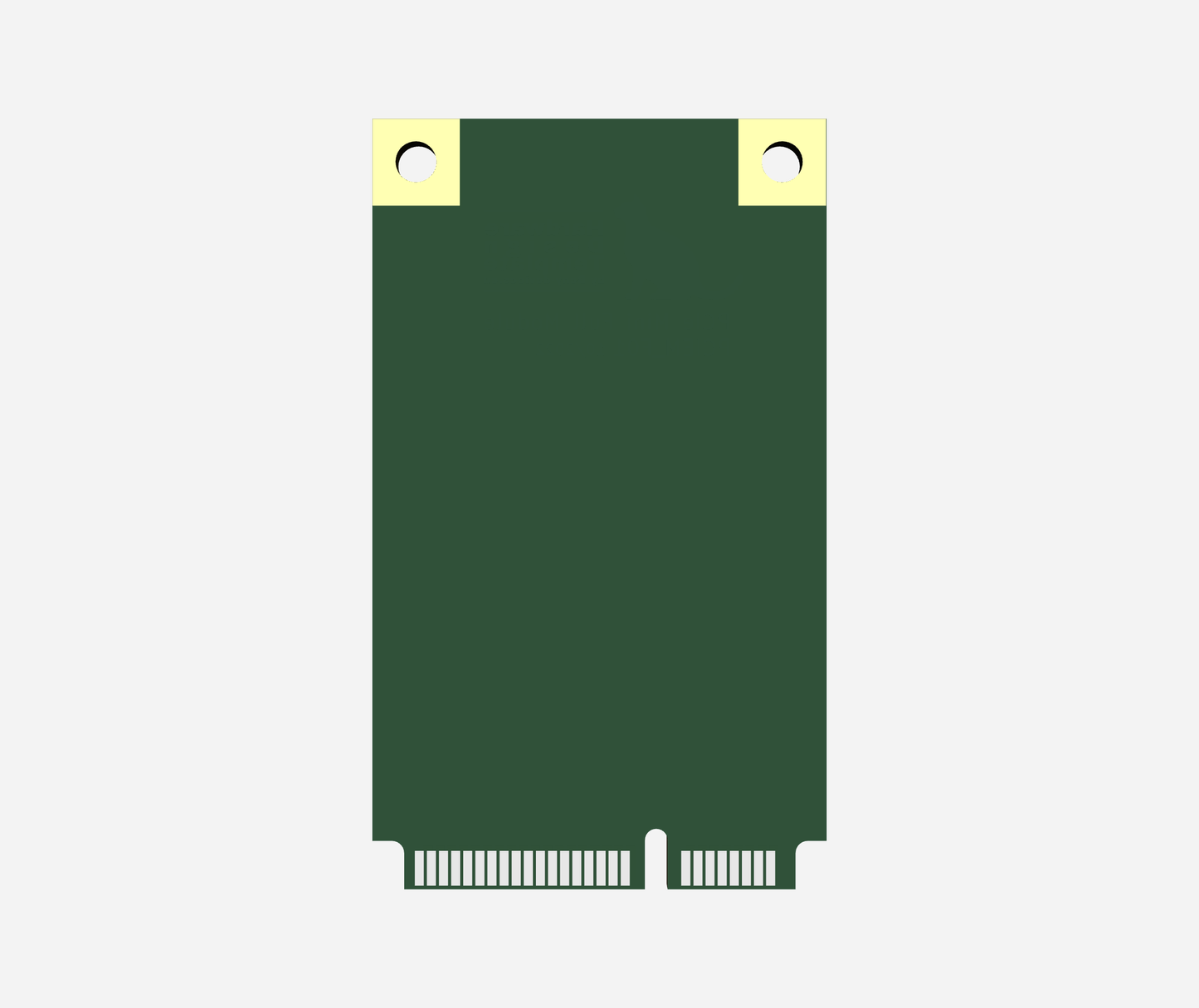

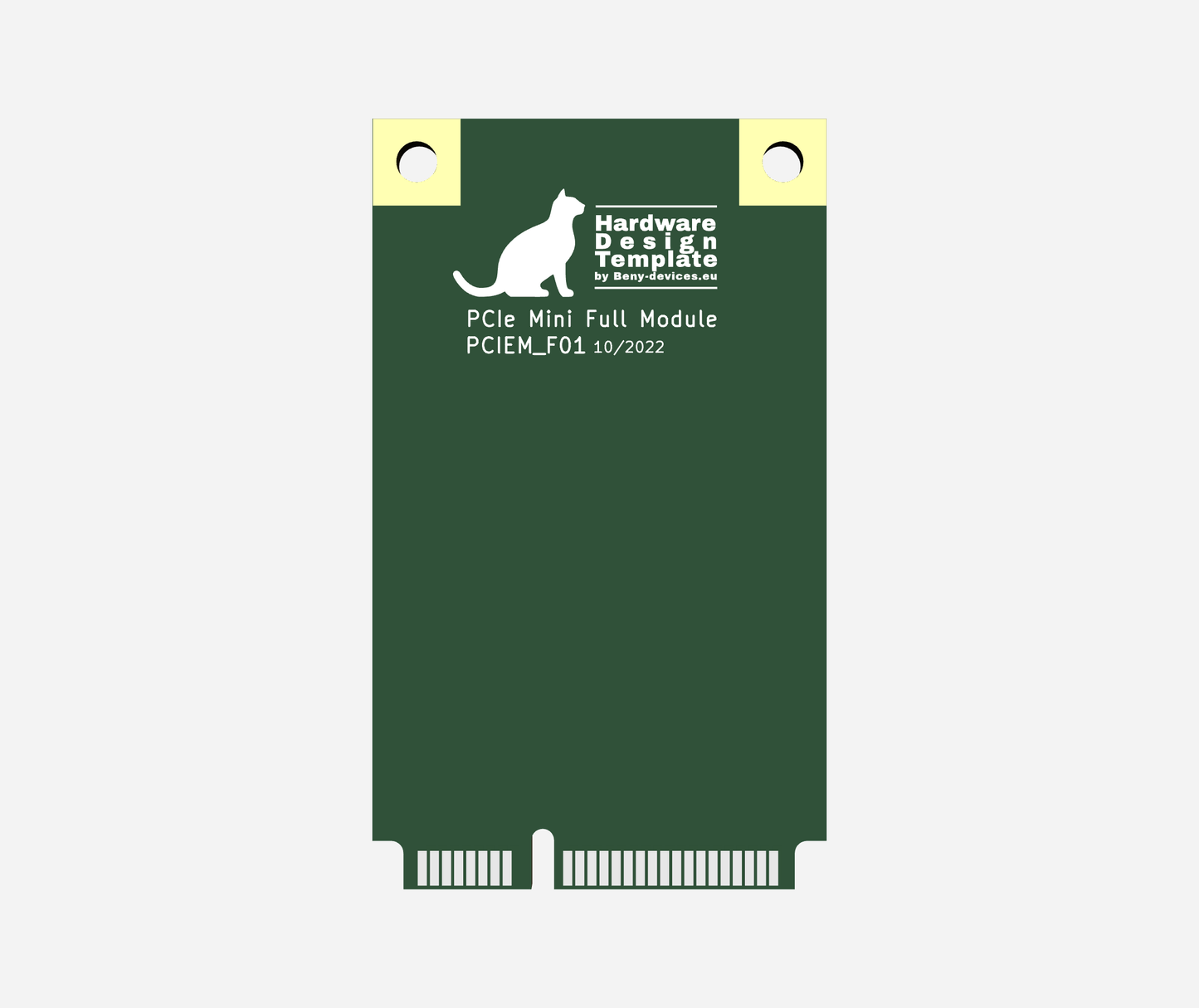

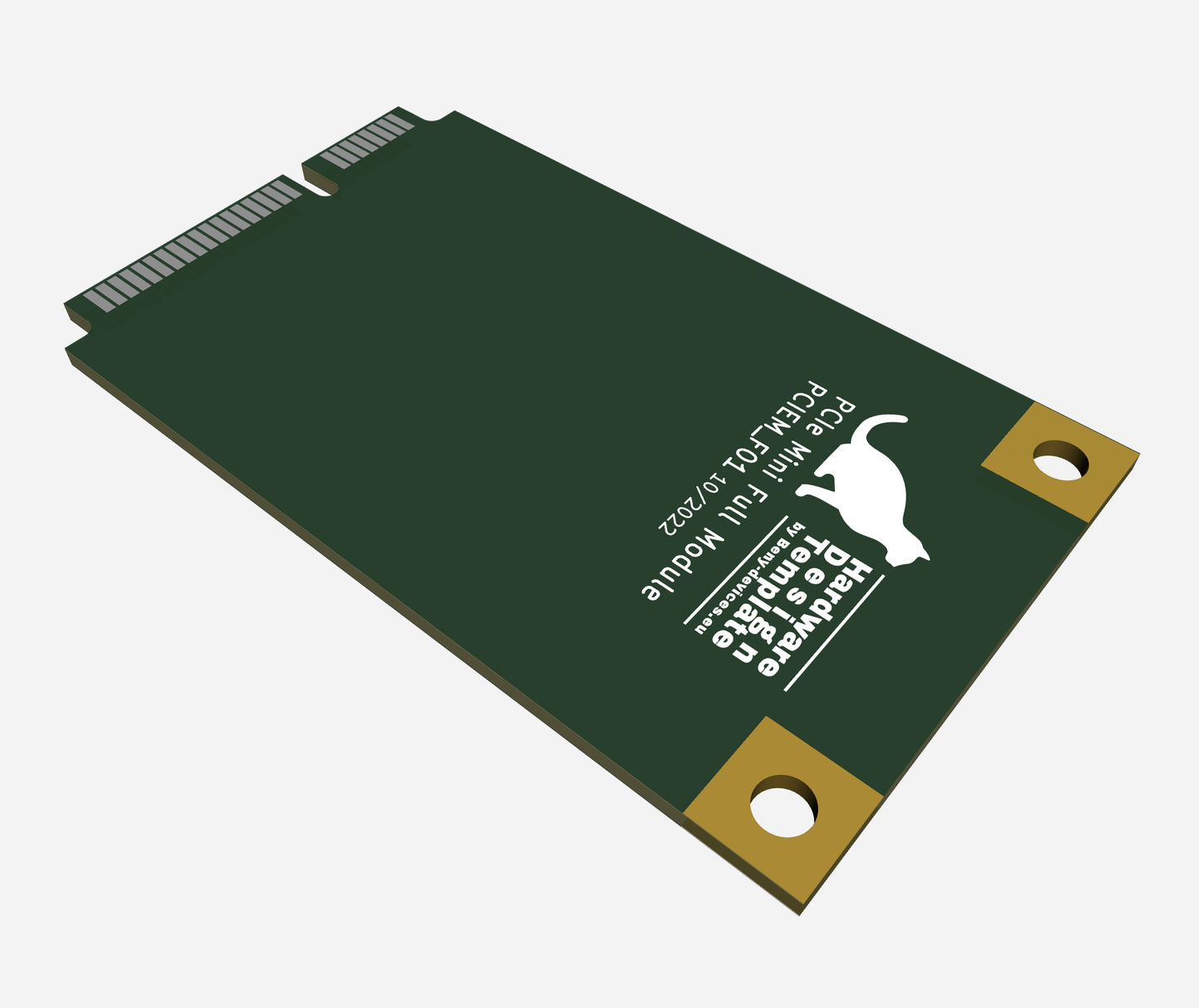

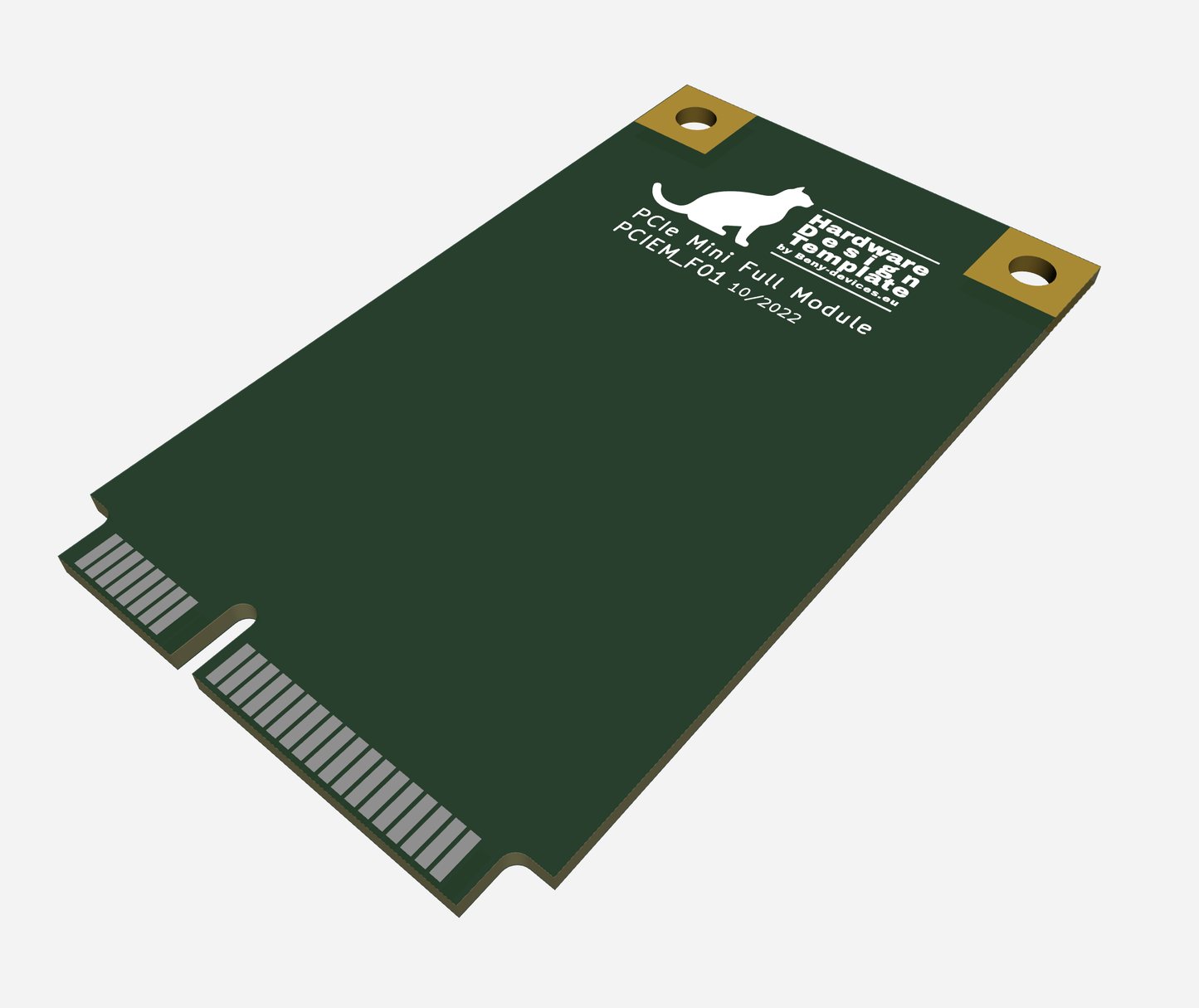

The Hardware Design Template package for the most straightforward schematic design and PCB layout of an Industrial PCIexpress Mini Full size module.

The Hardware Design Template package contains:

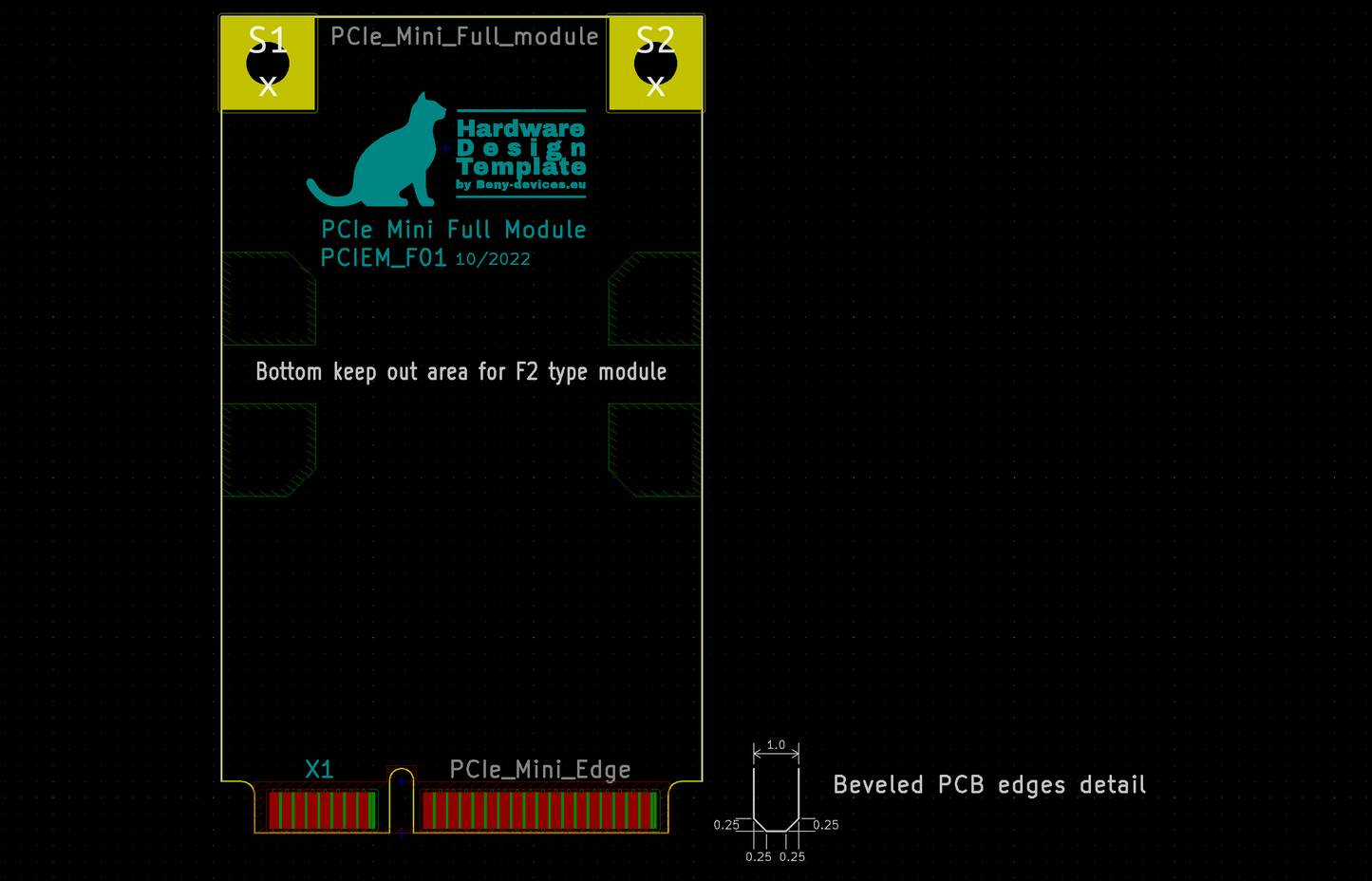

  • Design data of the verified PCB template.
  • A design library of all used symbols.
  • A design library of all used footprints.

The Hardware Design Template supports:

  • PCIexpress Mini Full size module

What you will not get:

  • Any physical enclosure or any piece of material.

Disclaimer

💾 The Hardware Design Template is a downloadable digital product (delivery policy)

Dimensions

30x50.95 mm

View full details

A jump start

Mechanical simplicity along with tested components keep you on track to the final product.

  • ECAD project

    Simple and clean ECAD project. The size of the PCB is the maximum possible and the shape always follows the enclosure borders.

  • Bill of material

    List of all recommended components that were verified to be perfectly fiting the enclosure openings.
