IQS9150 eval design

IQS9150 eval design

€7,90 EUR
€7,90 EUR
Sale Sold out
Tax included.
Data format

What you will get:

The Hardware Design Template Schematic package and PCB layout package for the most straightforward schematic design.

The Hardware Design Template Schematic package contains the following:

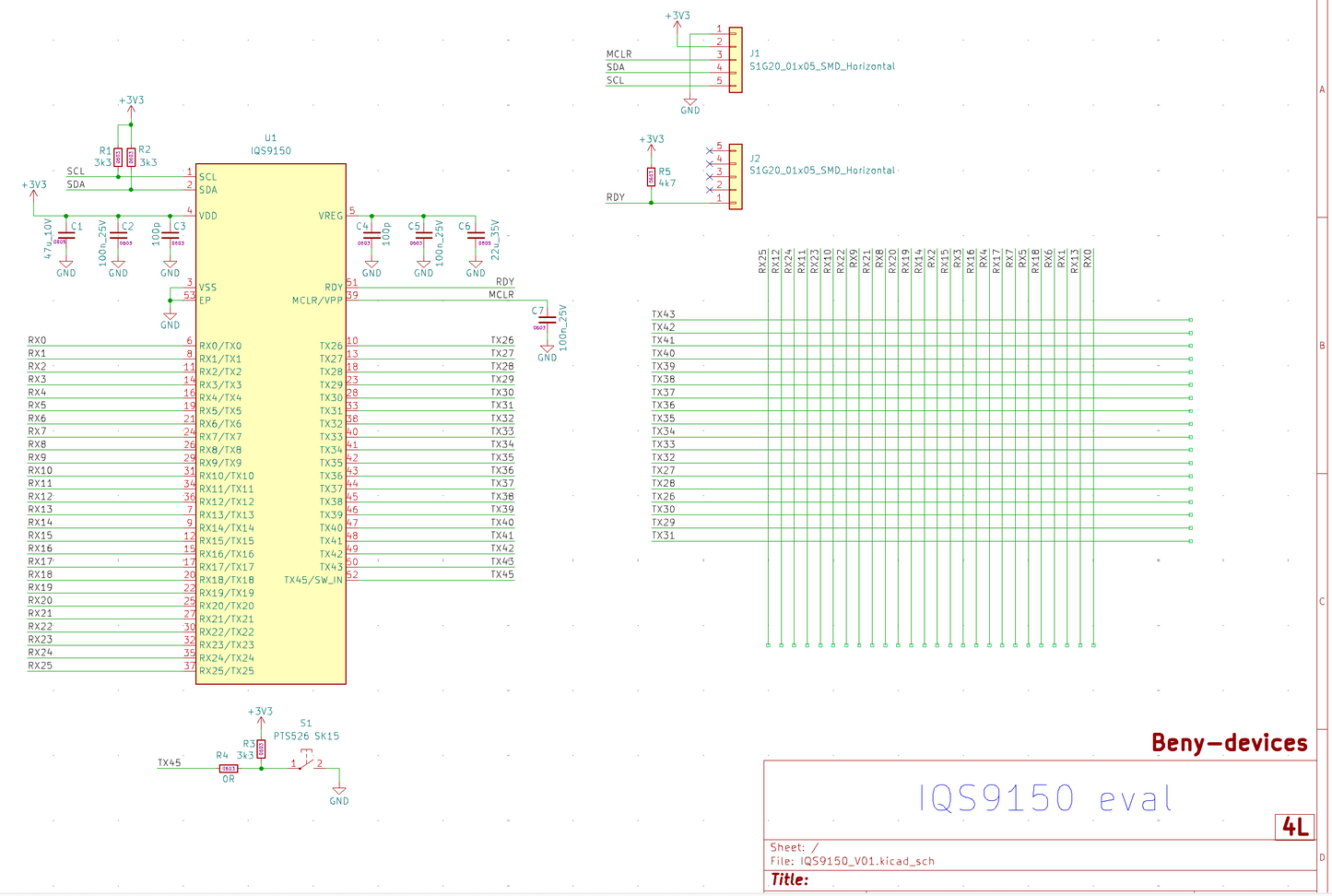

  • A minimal and verified and fully functional schematic drawing.

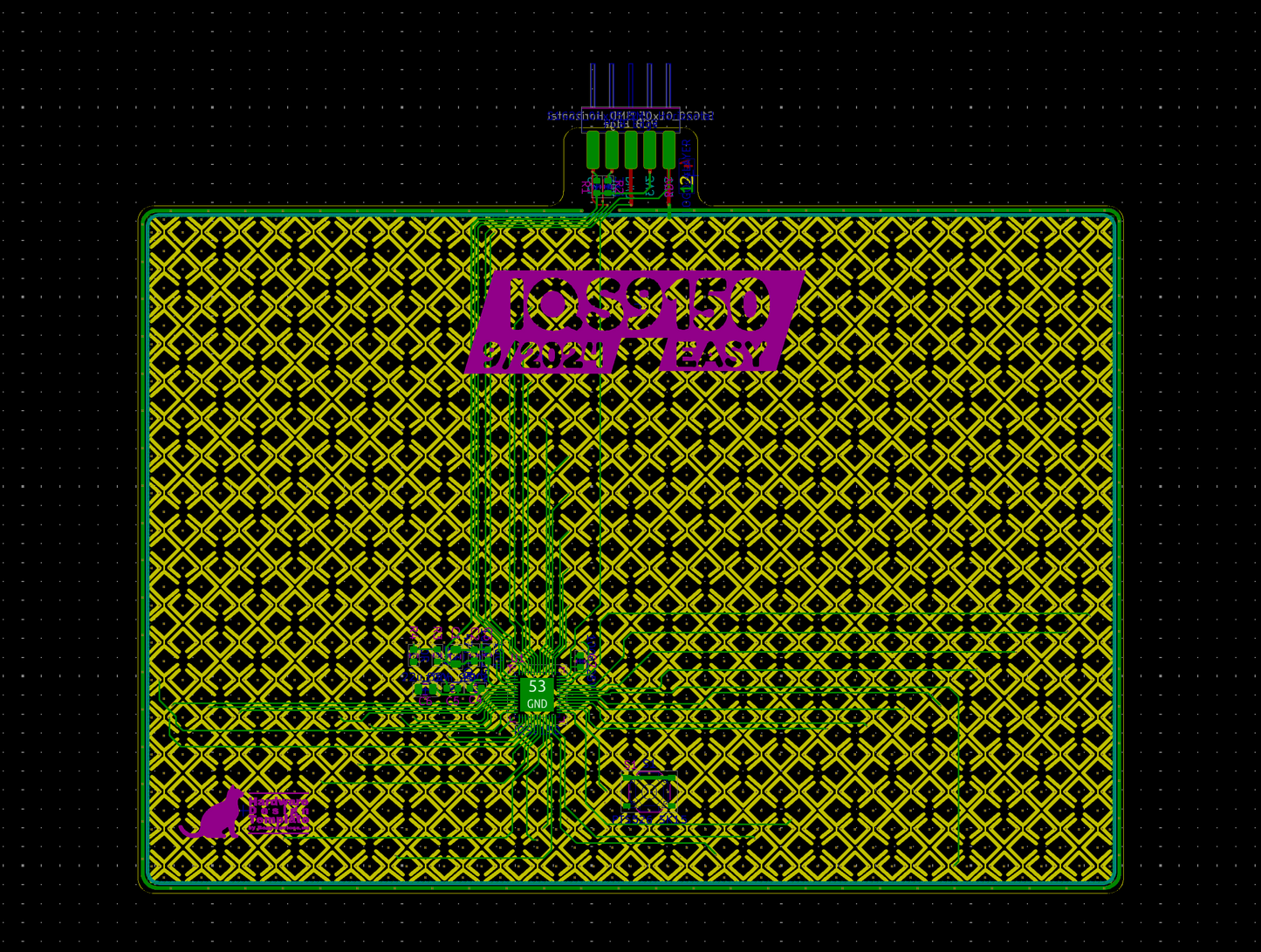

  • A minimal and verified and fully functional PCB layout.
  • Clean and easy-to-order BOM of all components used in the schematic.

The Hardware Design Template Schematic package supports the following:

  • Verified usage of the IQS9150, ProxFusion® IC sensor fusion device.
  • 25x19 capacitive matrix trackpad.
  • Integrated tactile button.

What you will not get:

  • Any physical enclosure or any piece of material.

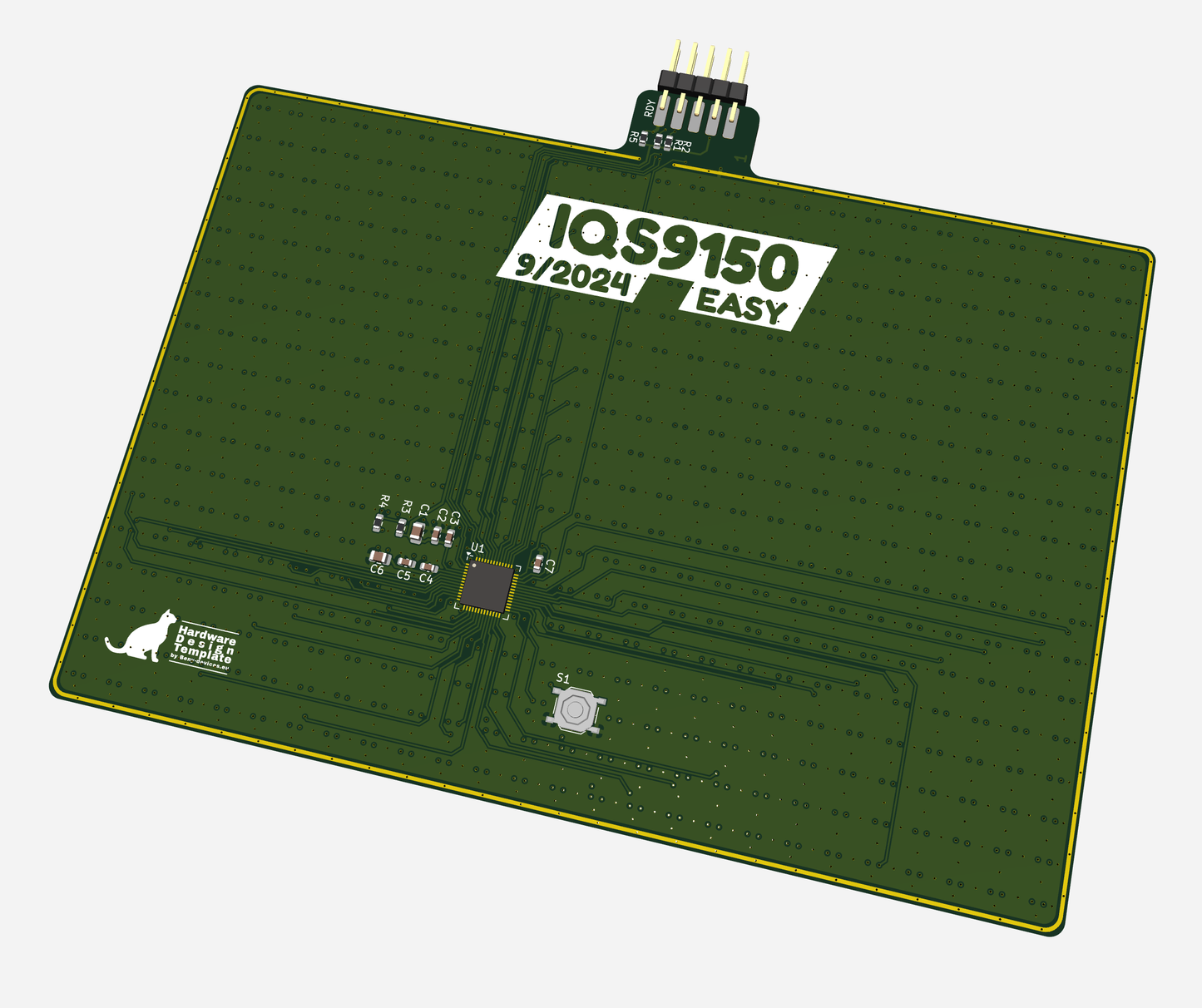

Eval design presentation:

Disclaimer

💾 The Hardware Design Template is a downloadable digital product (delivery policy)


Dimensions

132x102.5 mm

View full details

A jump start

Mechanical simplicity along with tested components keep you on track to the final product.

  • ECAD project

    Simple and clean ECAD project. The size of the PCB is the maximum possible and the shape always follows the enclosure borders.

  • Bill of material

    List of all recommended components that were verified to be perfectly fiting the enclosure openings.
