FPGA Mezzanine LPC

FPGA Mezzanine LPC

Regular price €4,90 EUR
Regular price Sale price €4,90 EUR
Sale Sold out
Tax included.
Data format

What you will get:

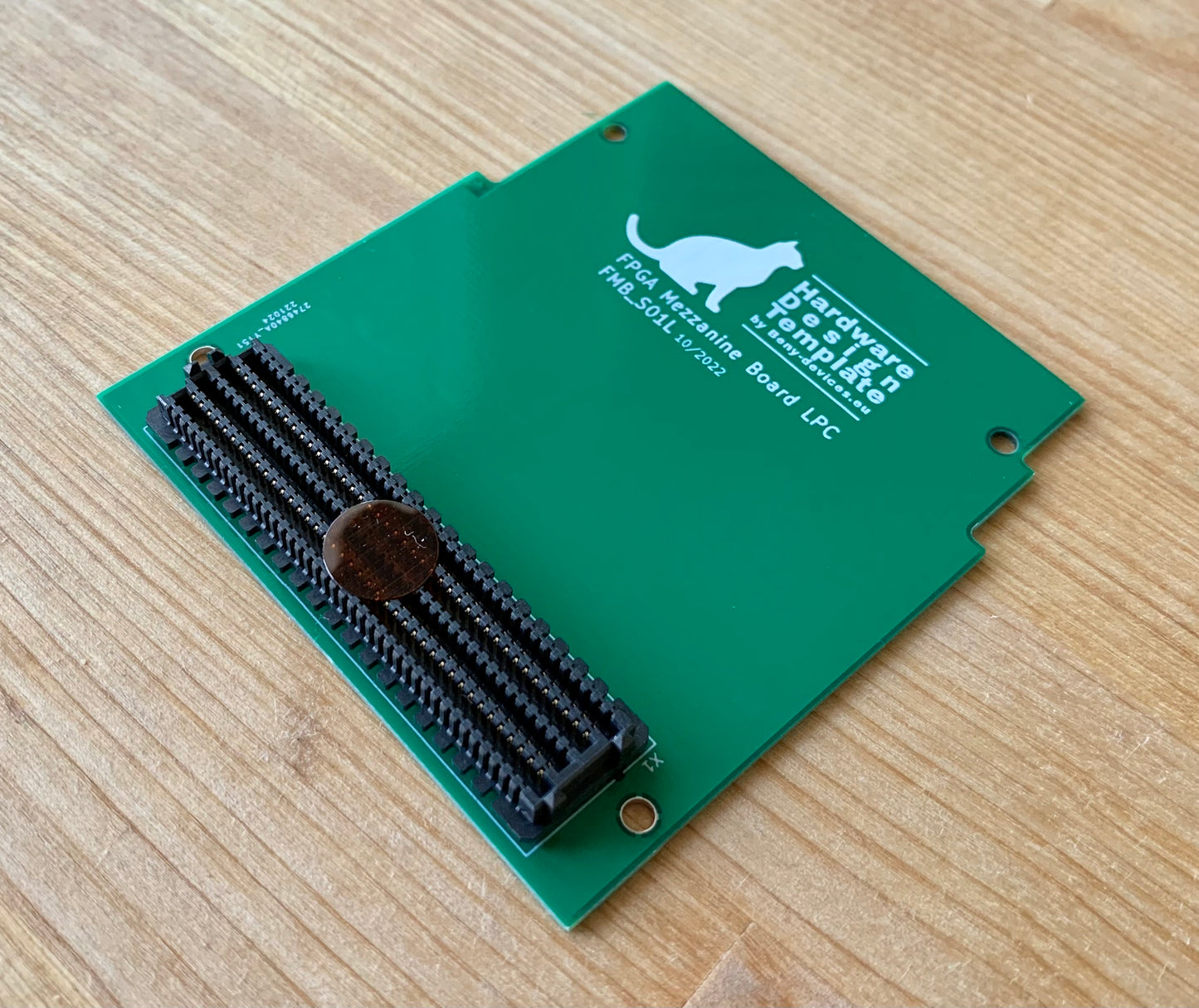

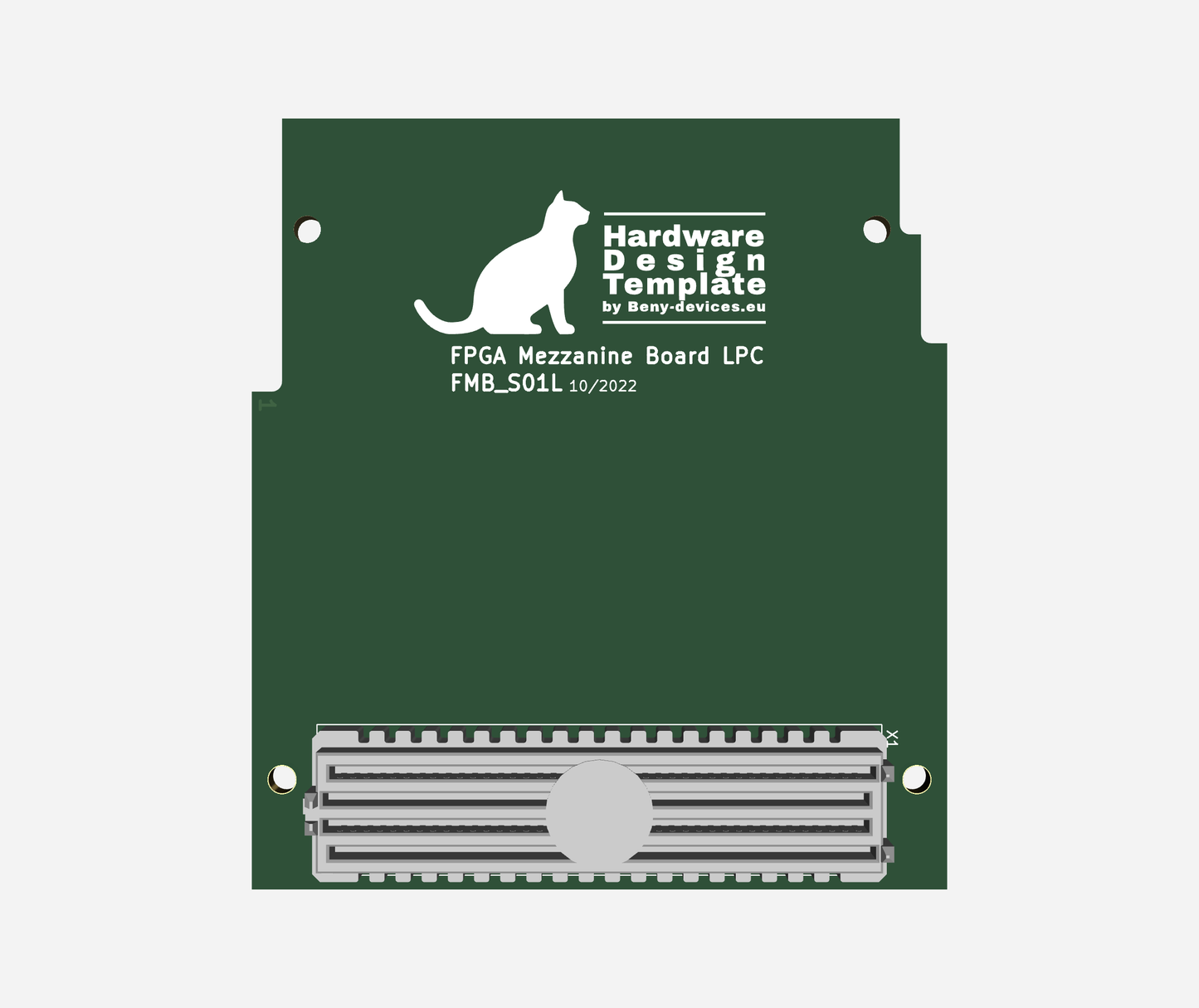

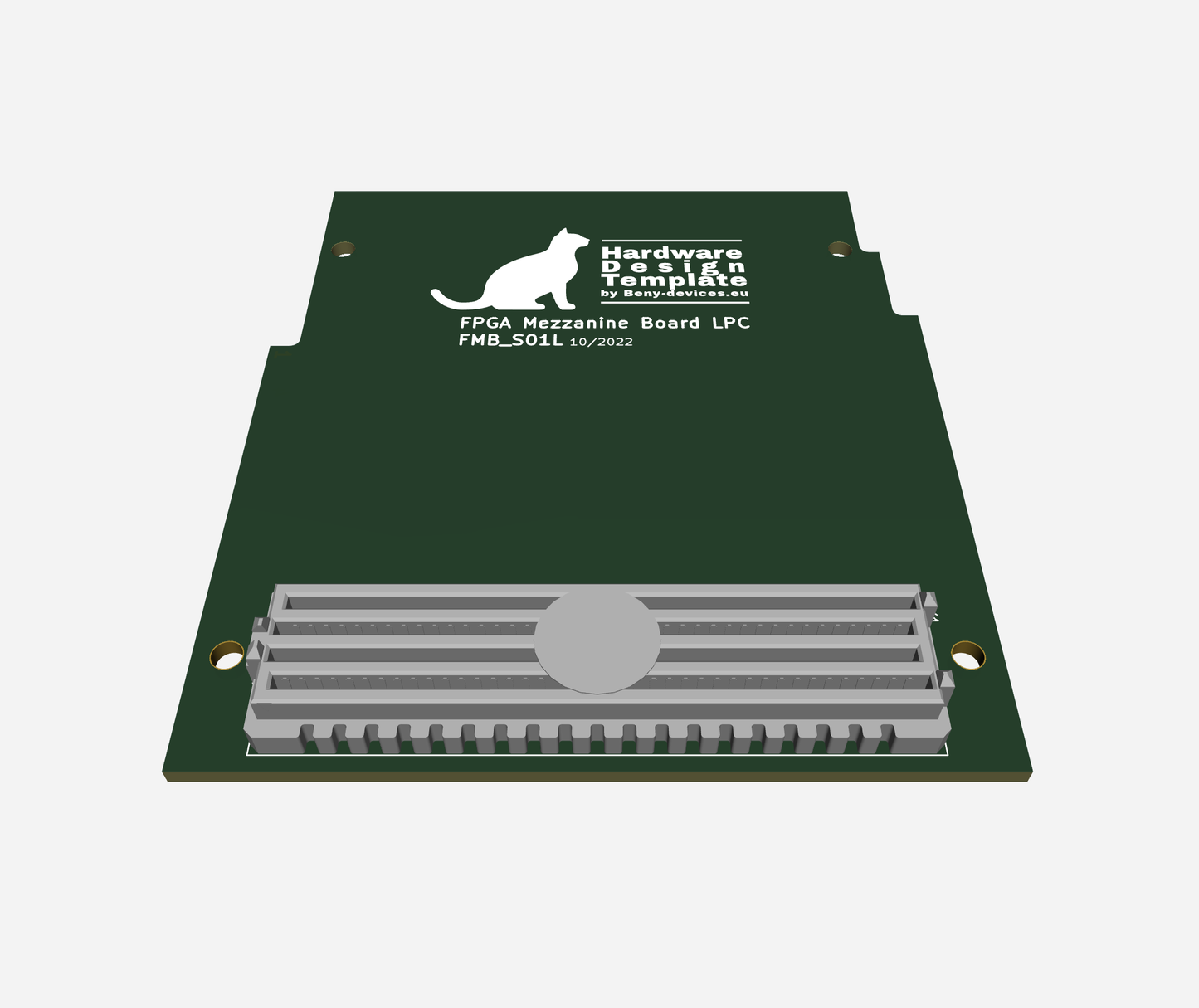

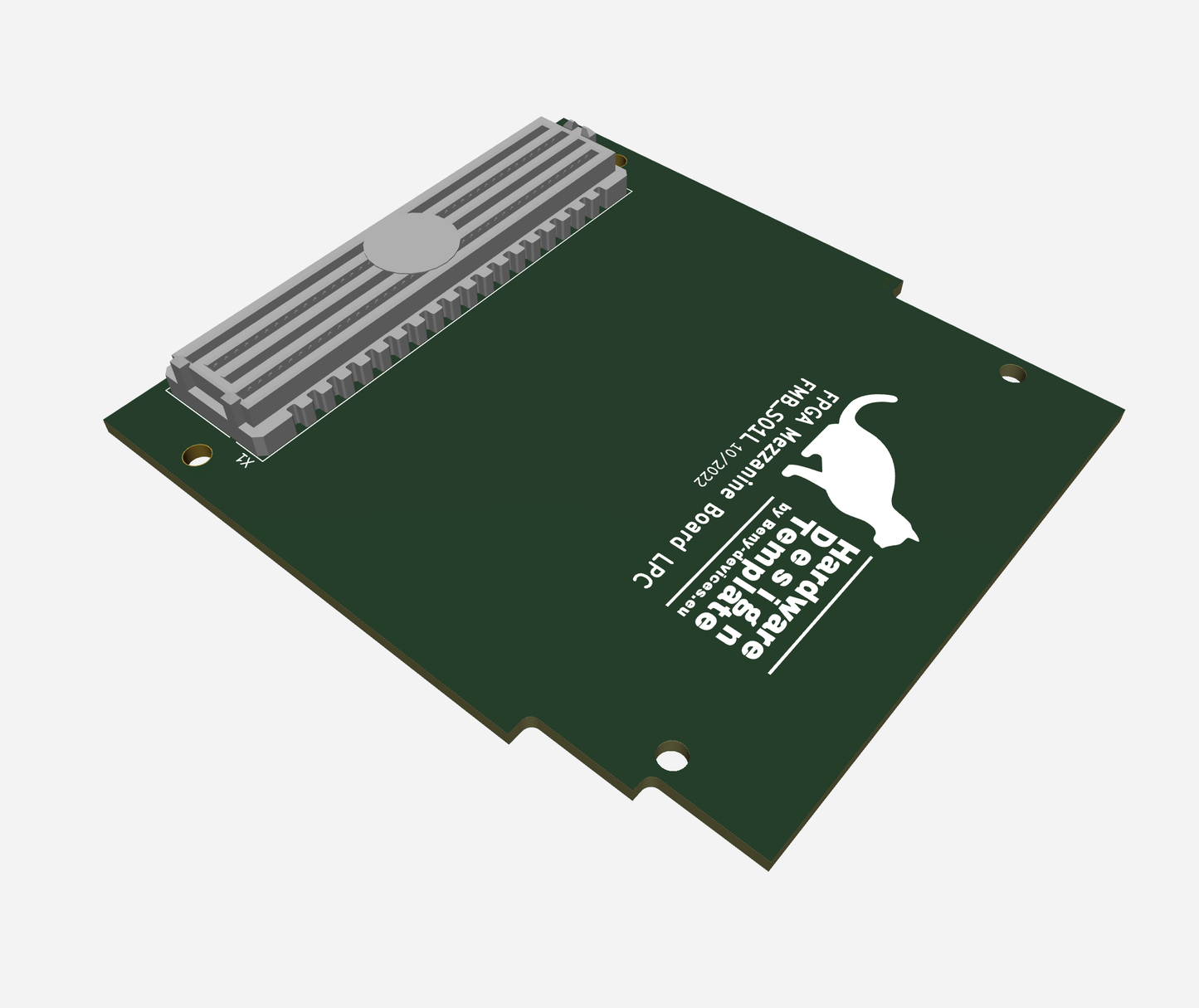

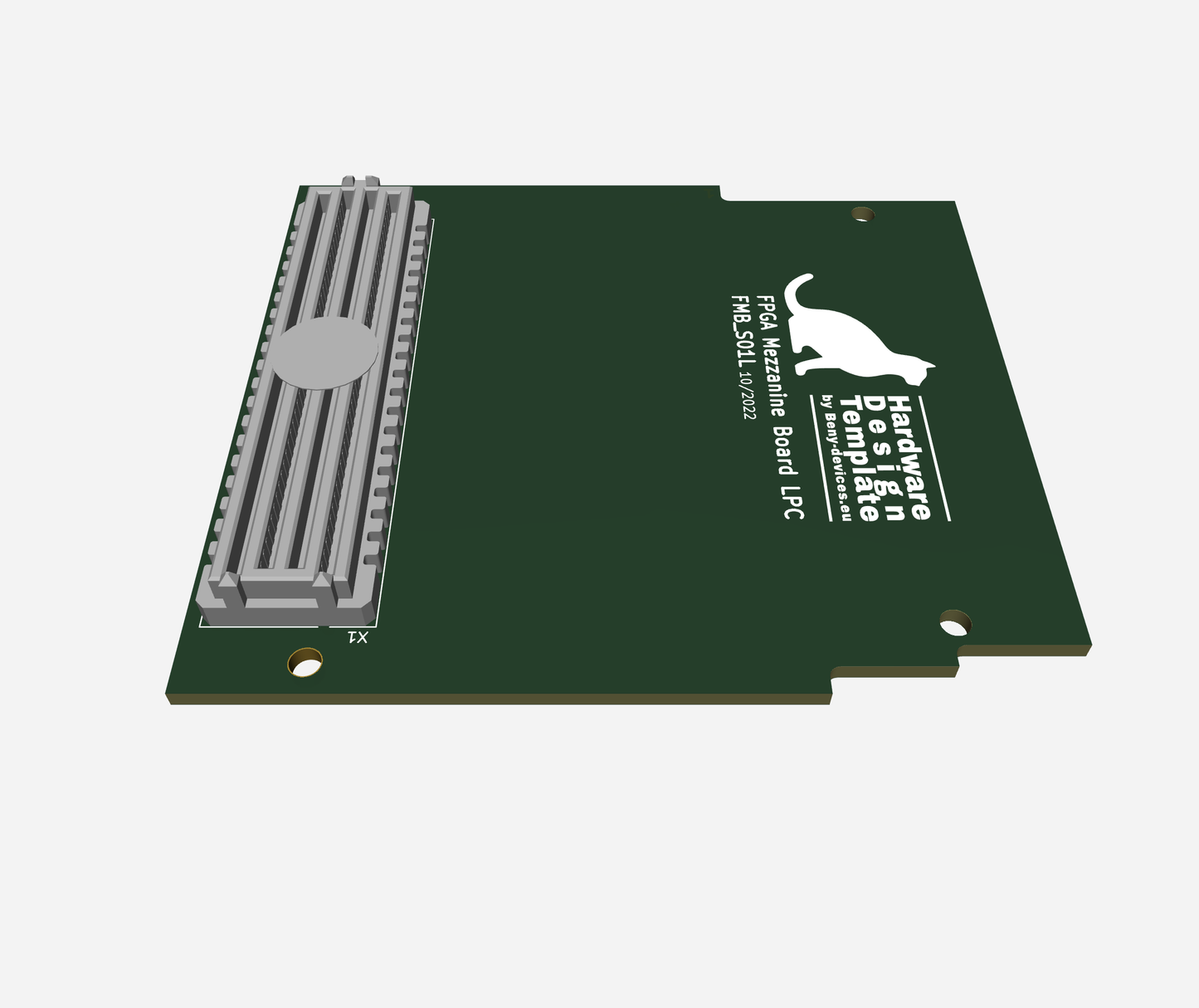

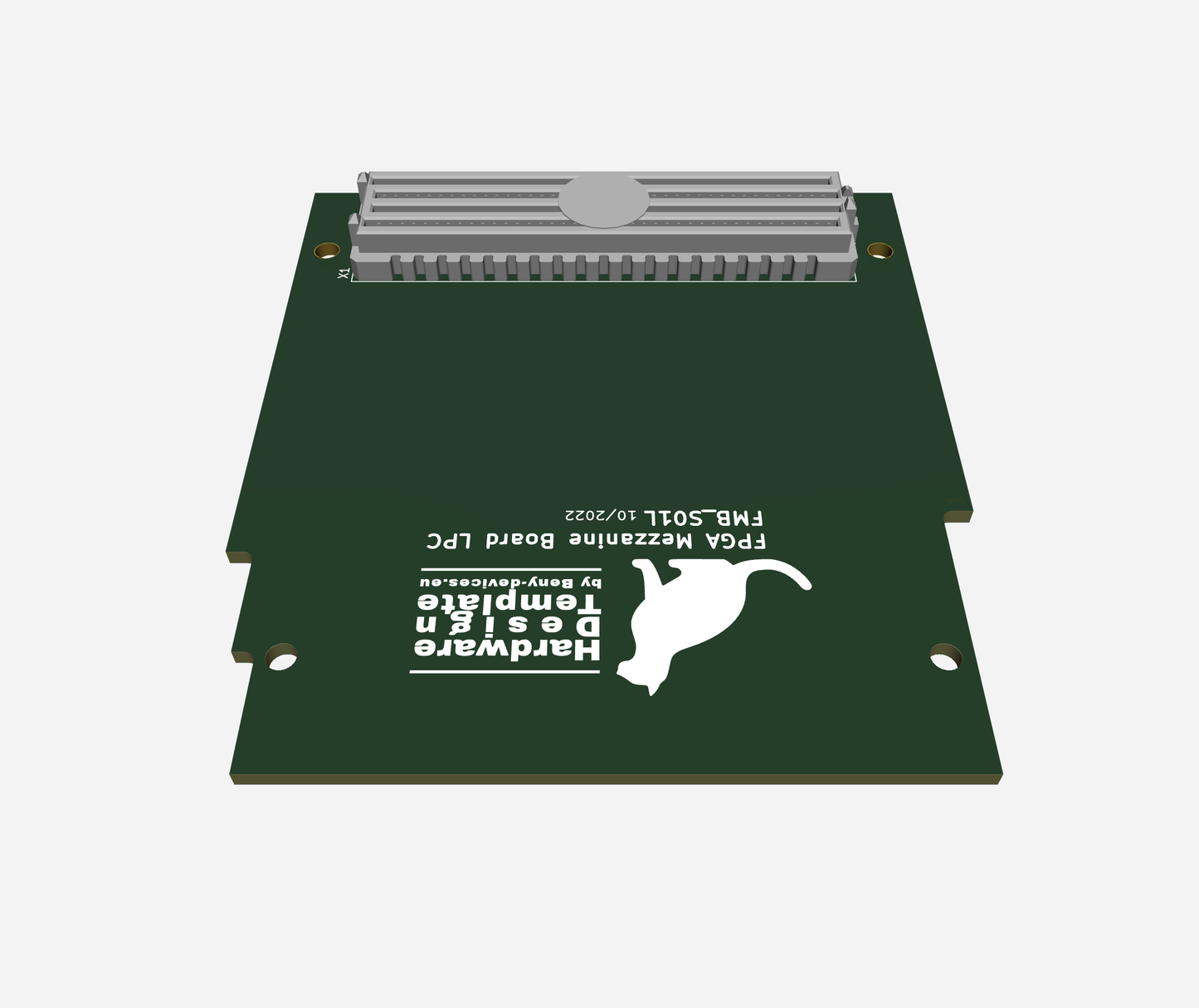

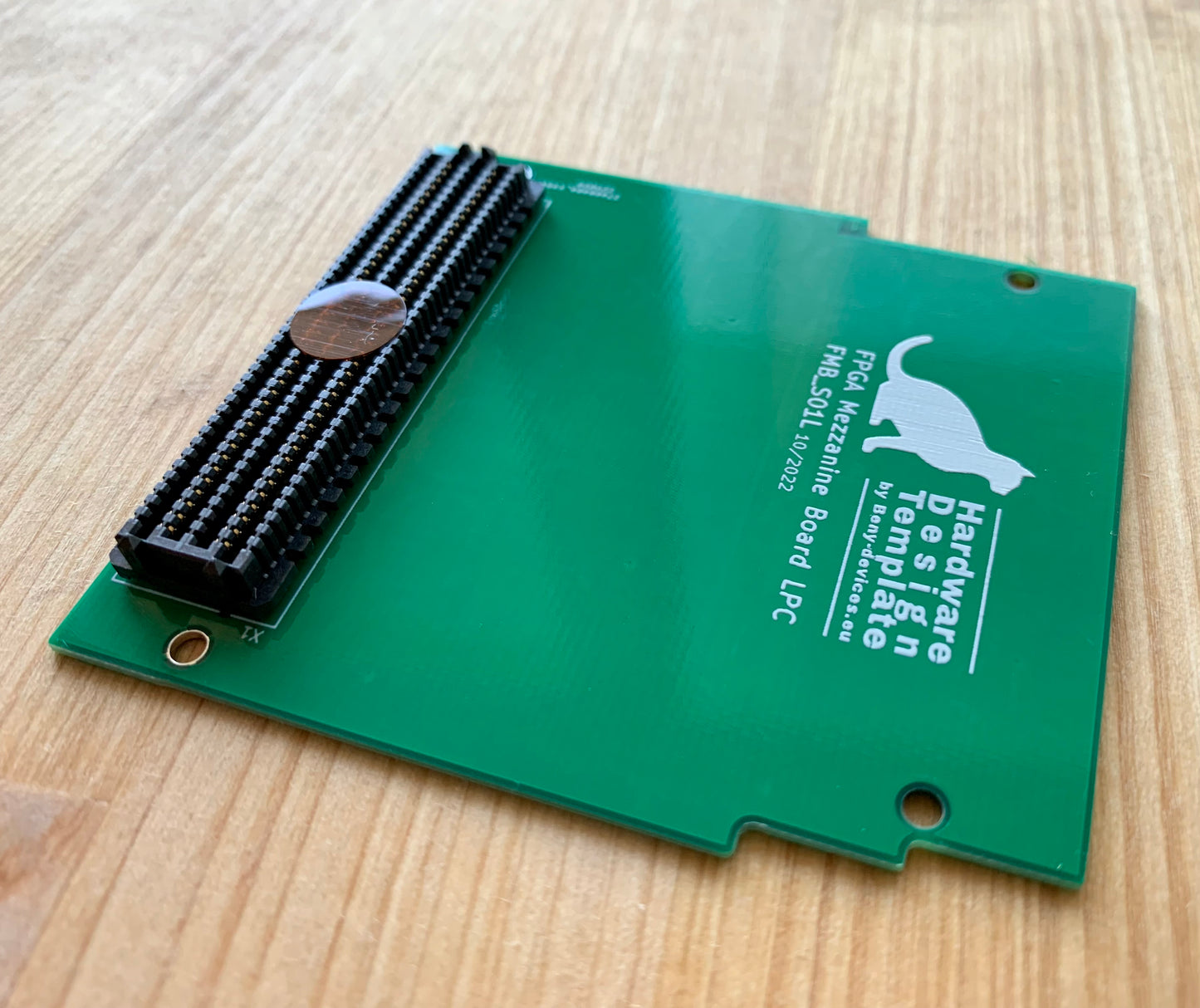

The Hardware Design Template package for the most straightforward schematic design and PCB layout of an Industrial FPGA Mezzanine board with LPC 4x40 pin connector.

The Hardware Design Template package contains:

  • Design data of the verified PCB template.
  • A design library of all used symbols.
  • A design library of all used footprints.
  • Clean and easy to order BOM of all components.

The Hardware Design Template supports:

  • FPGA Mezzanine board single size
  • LPC 4x40 pin connector

What you will not get:

  • Any physical enclosure or any piece of material.


💾 The Hardware Design Template is a downloadable digital product (delivery policy)


76.5x69 mm

View full details

A jump start

Mechanical simplicity along with tested components keep you on track to the final product.

  • ECAD project

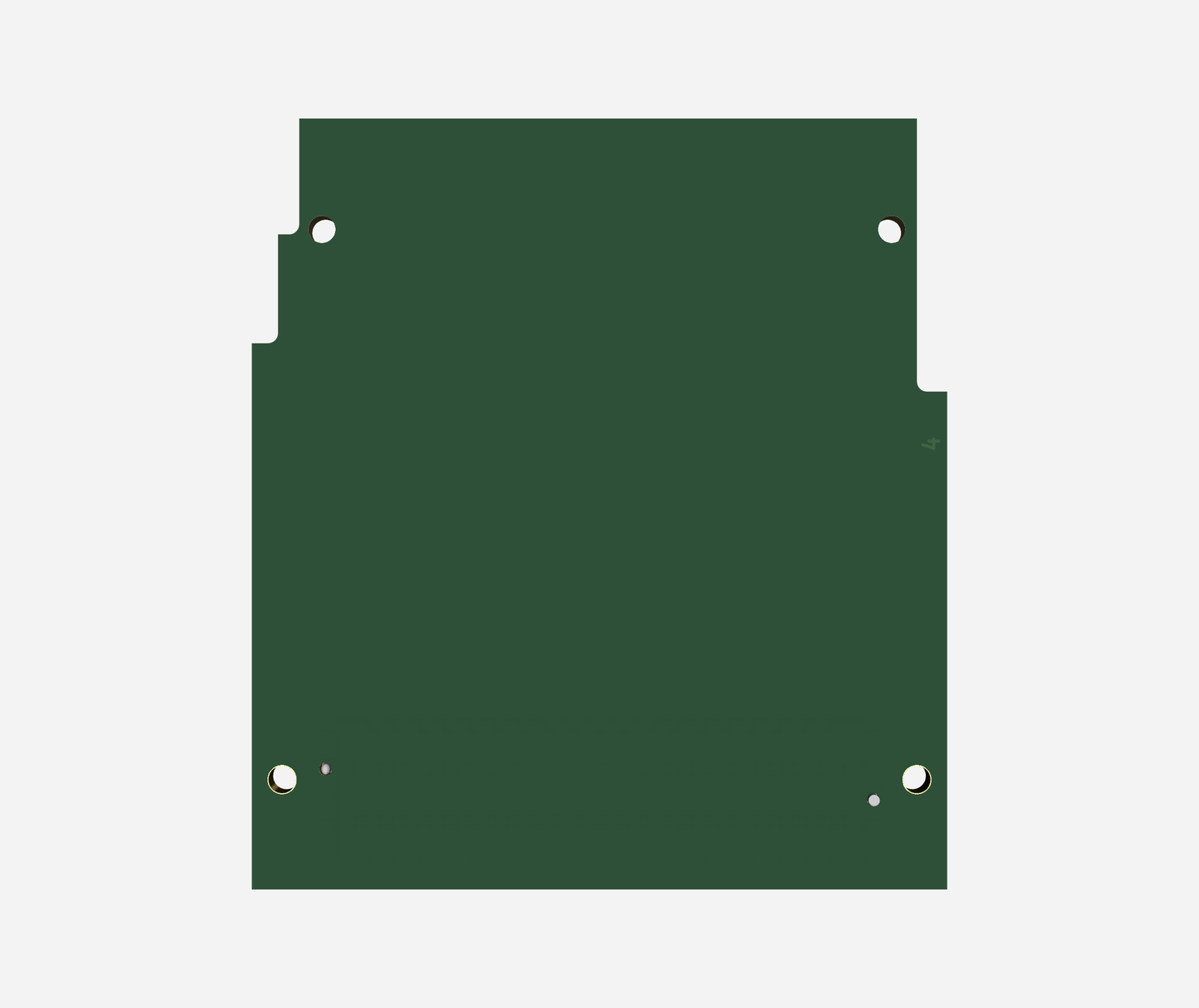

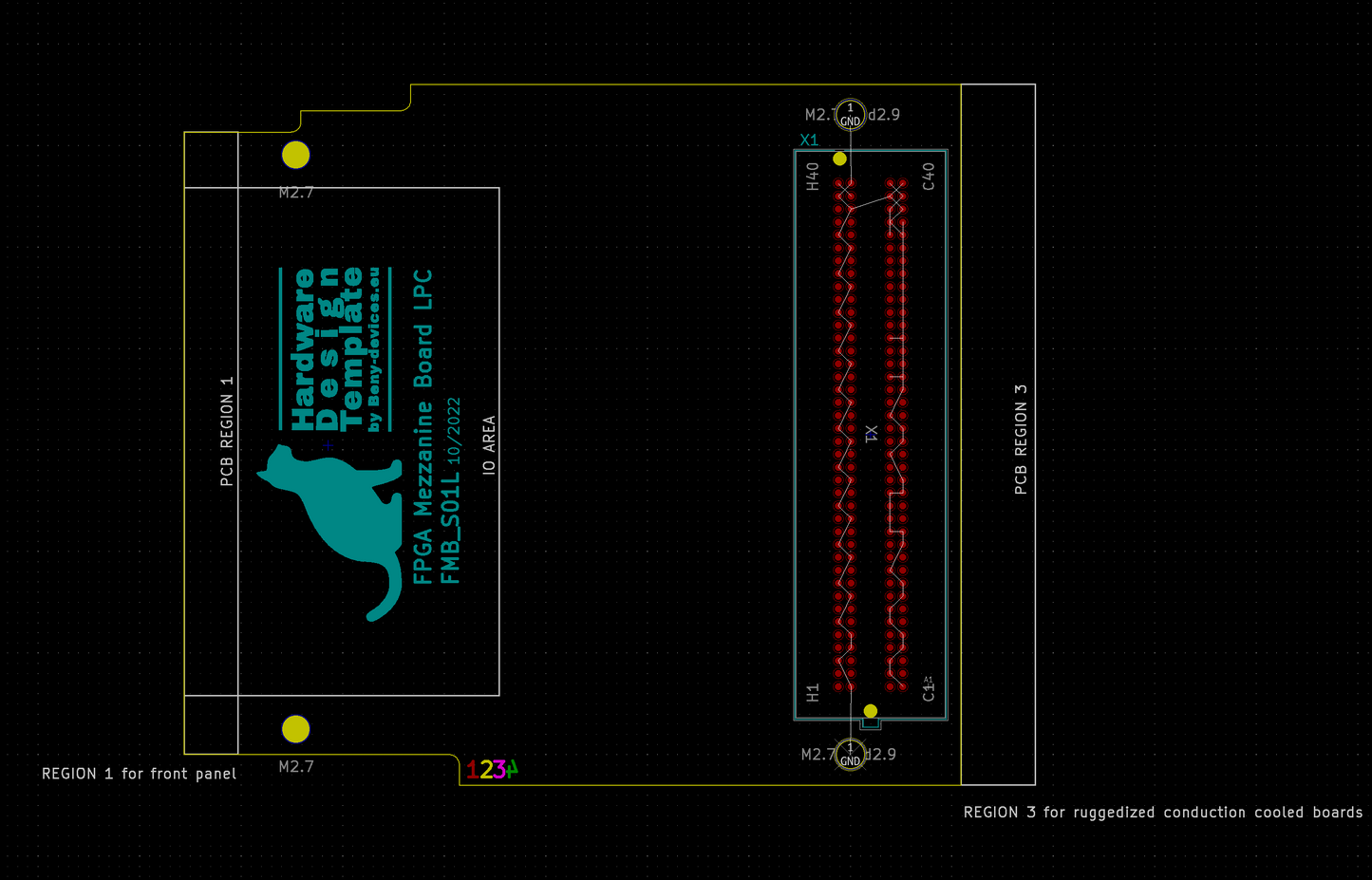

    Simple and clean ECAD project. The size of the PCB is the maximum possible and the shape always follows the enclosure borders.

  • Bill of material

    List of all recommended components that were verified to be perfectly fiting the enclosure openings.
