DIY Torch eval design

DIY Torch eval design

€4,90 EUR
€4,90 EUR
Sale Sold out
Tax included.
Data format

What you will get:

The Hardware Design Template Schematic package and PCB layout package for the most straightforward schematic design.

The Hardware Design Template Schematic package contains the following:

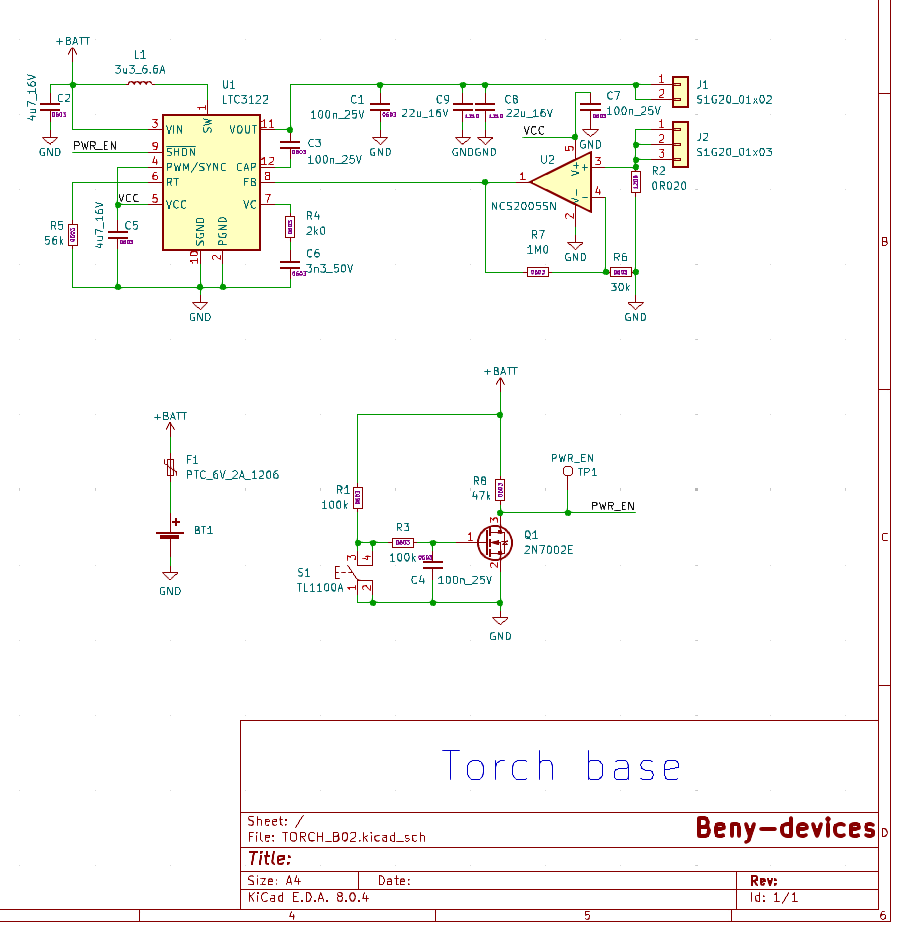

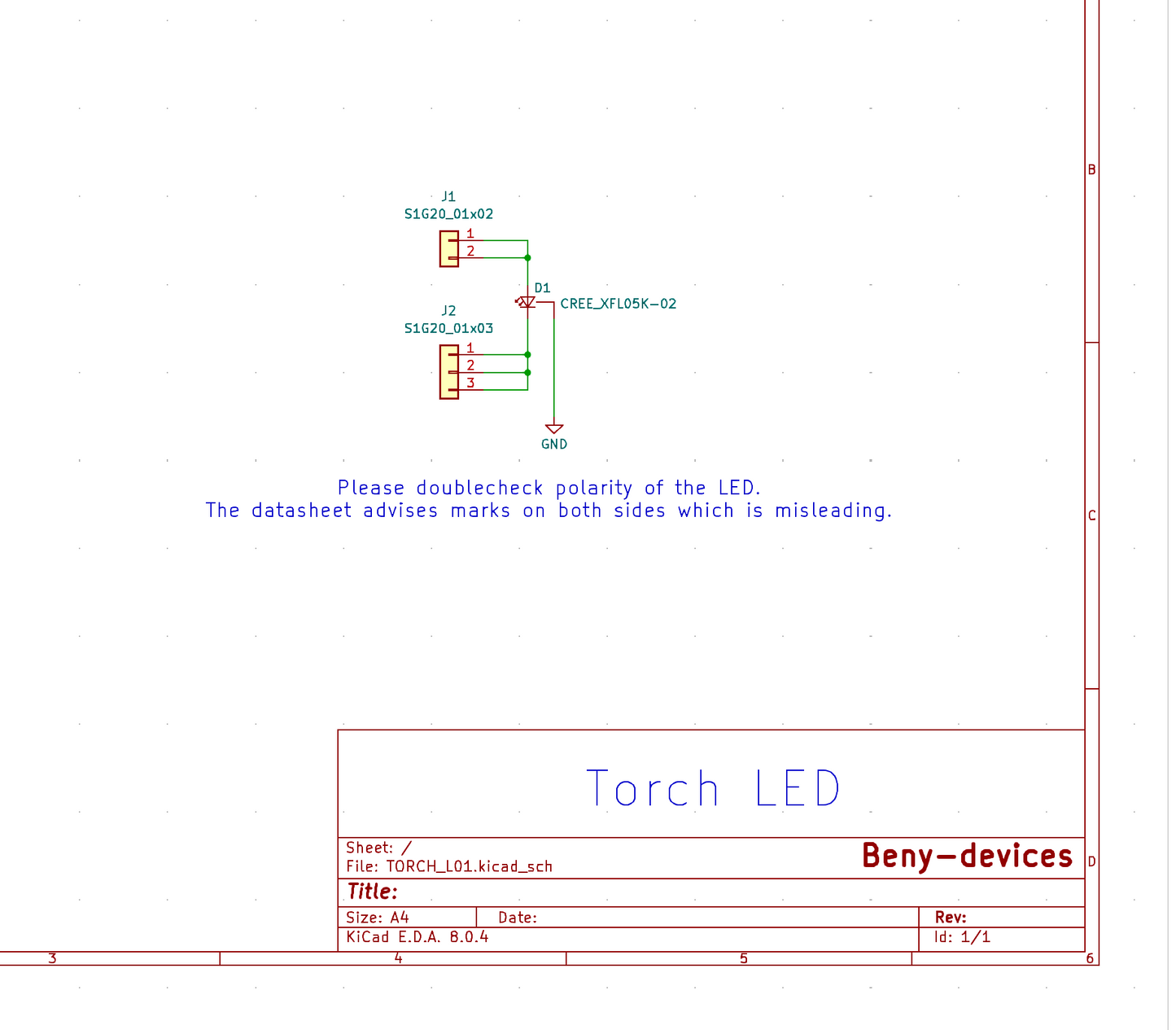

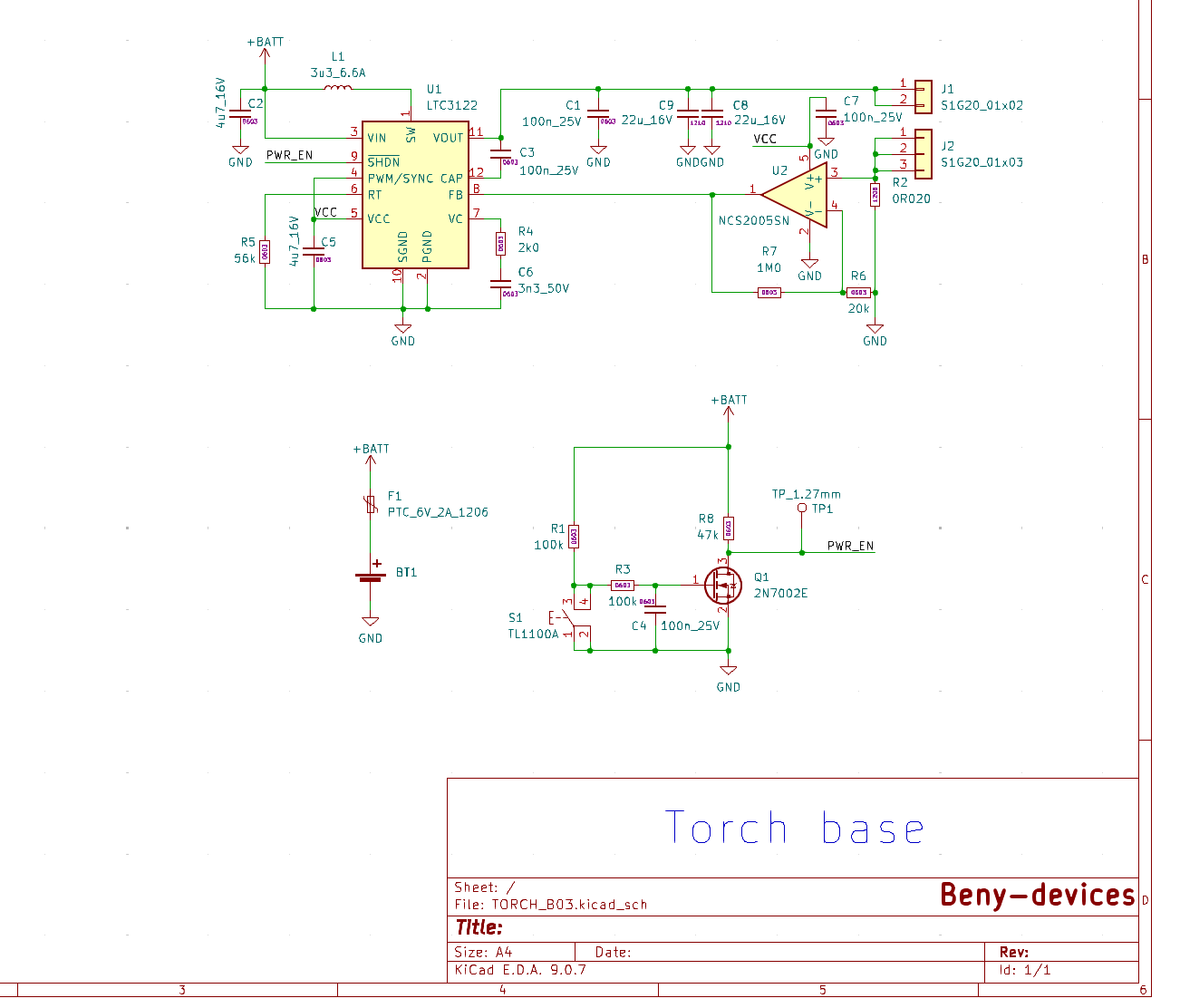

  • A minimal and verified and fully functional schematic drawing.

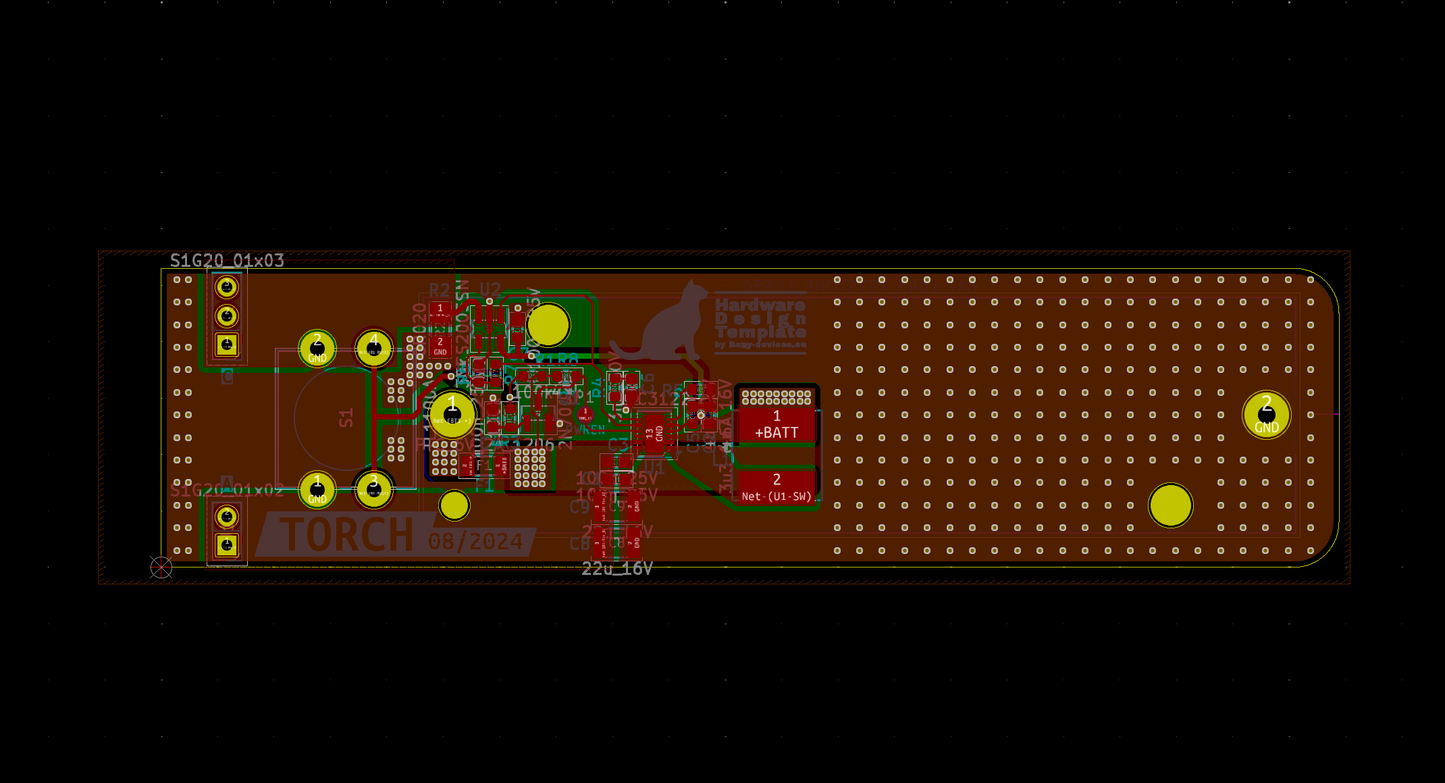

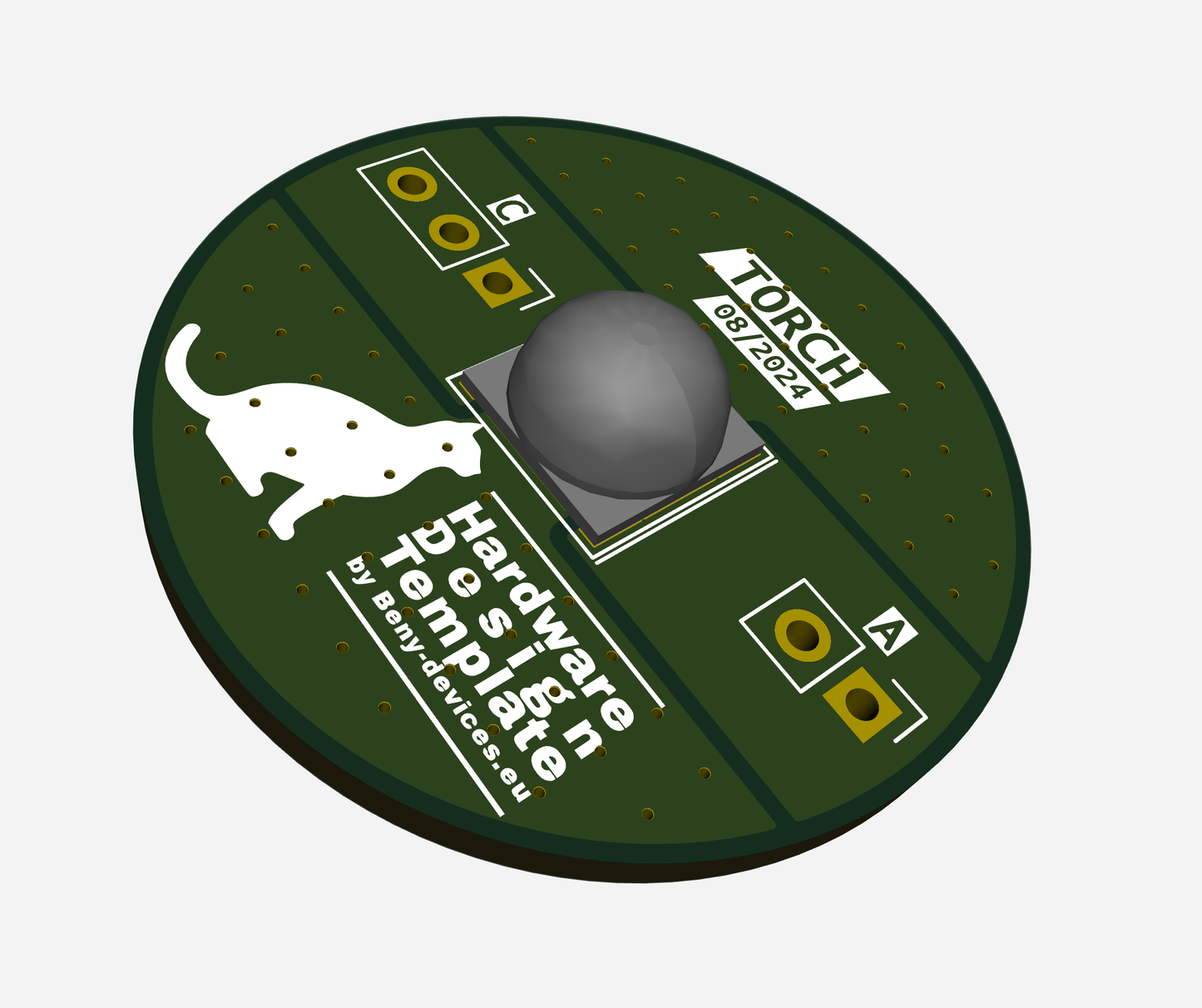

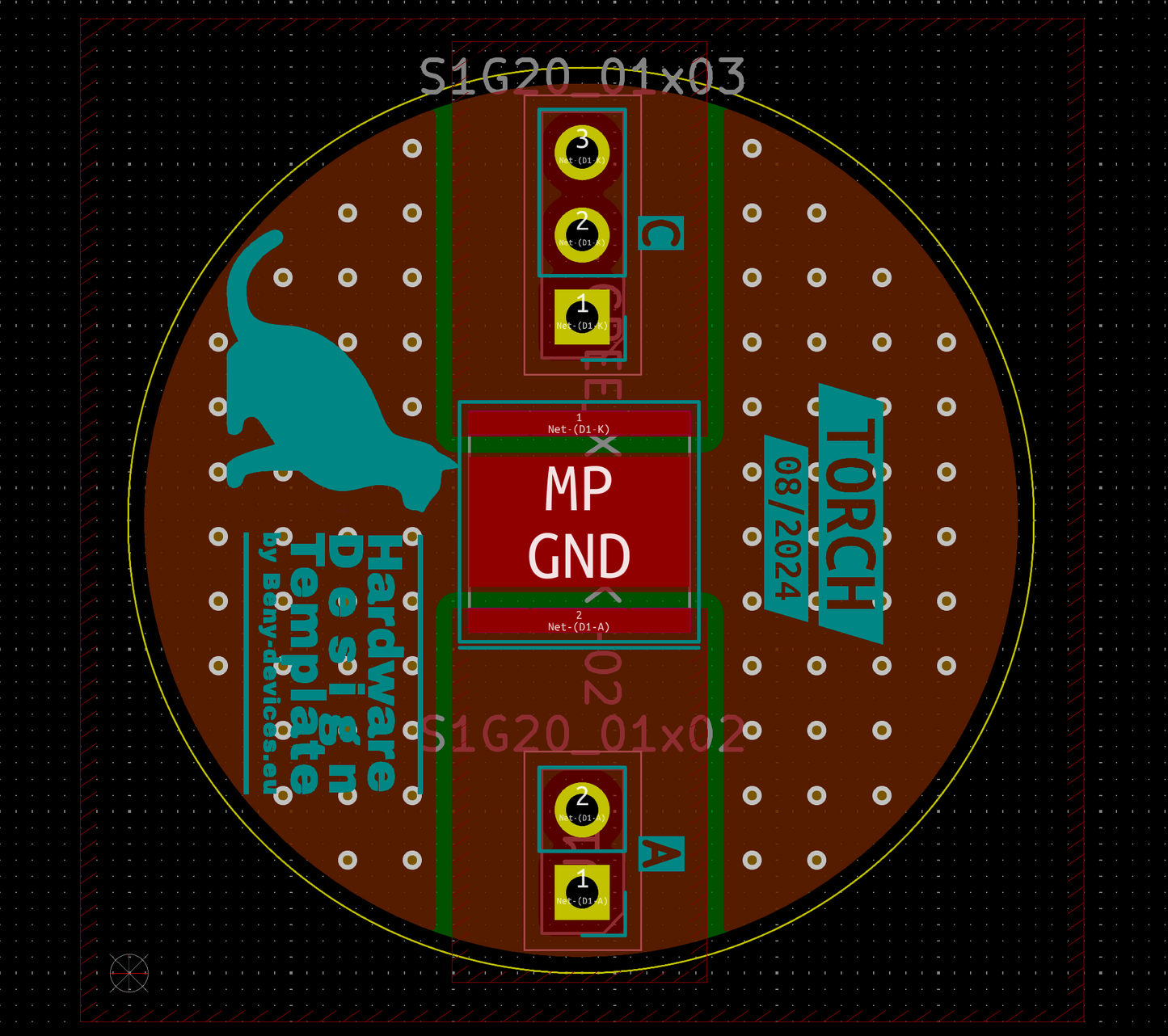

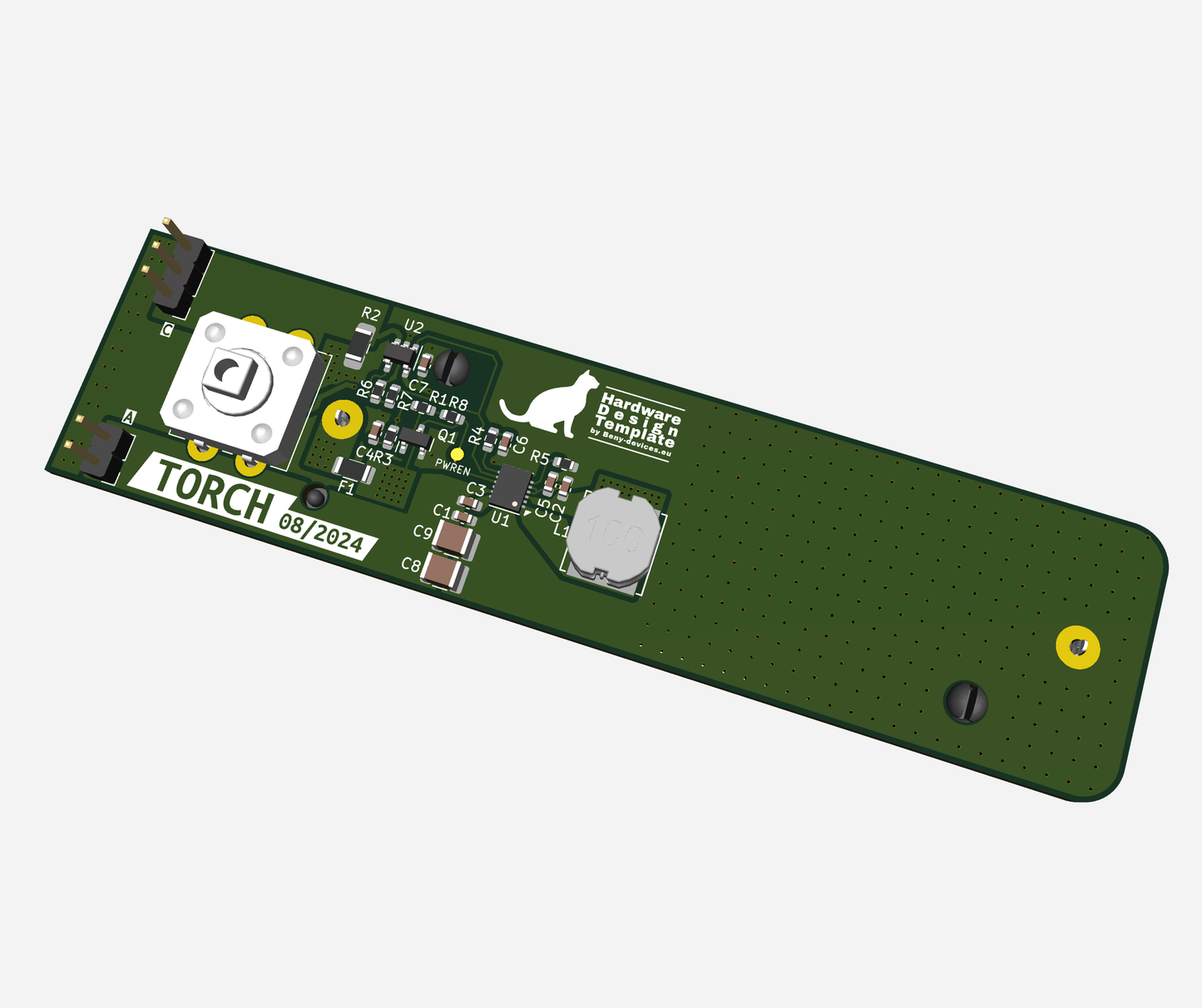

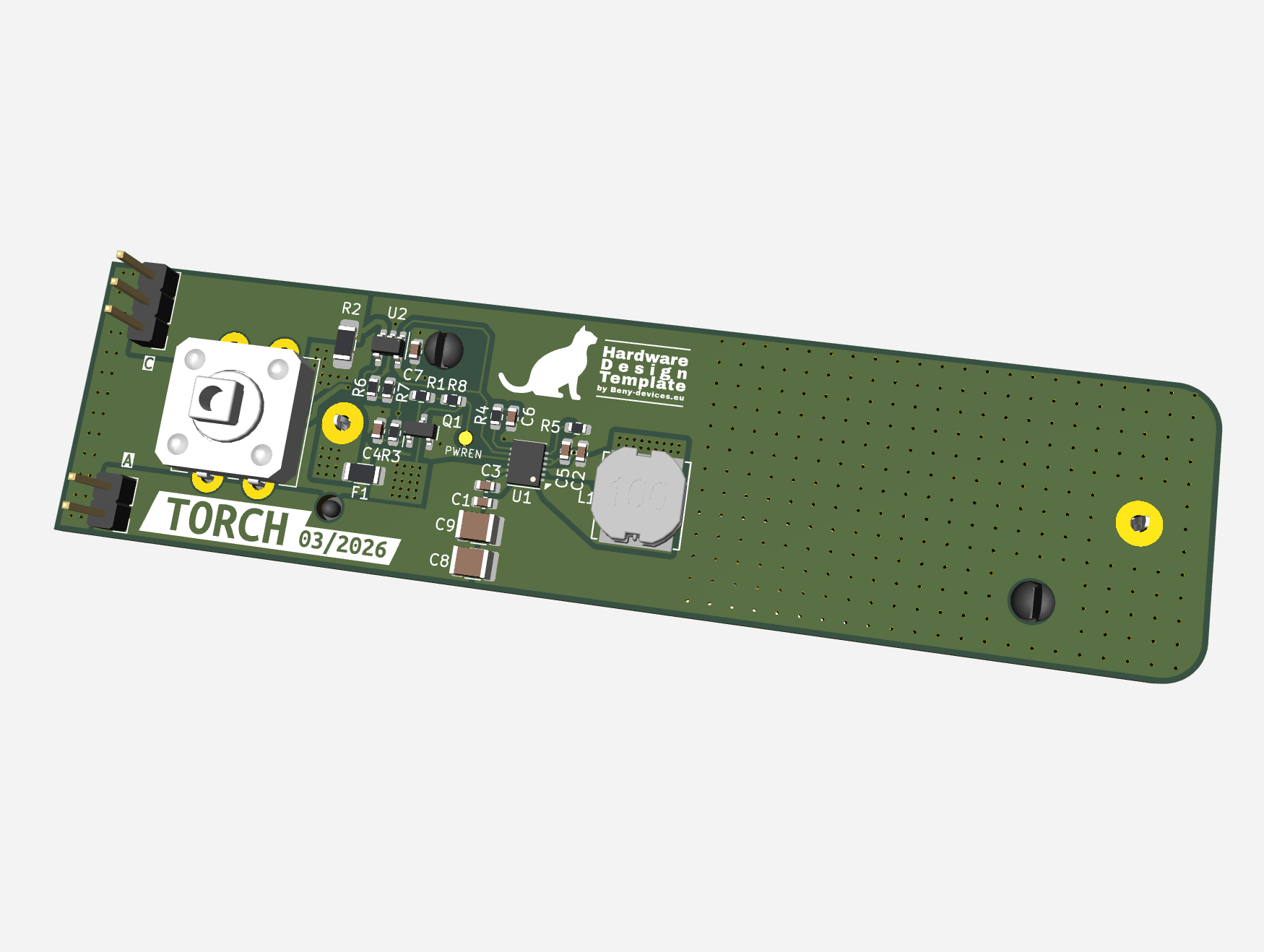

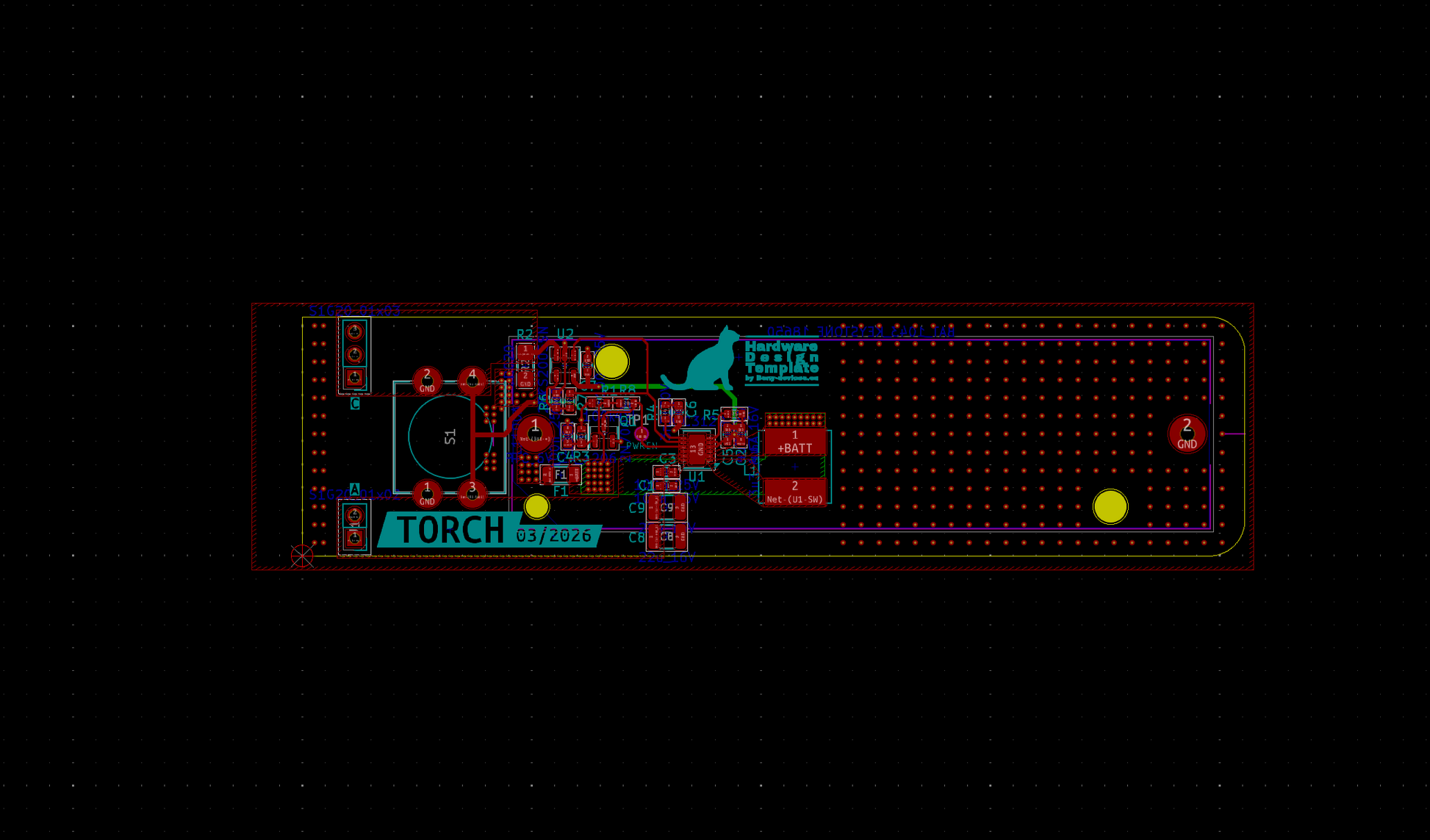

  • A minimal and verified and fully functional PCB layout.
  • Clean and easy-to-order BOM of all components used in the schematic.
  • 3D-printable STL file of the lens bracket.

The Hardware Design Template Schematic package supports the following:

  • LED XFL05K-02-0000-0B0B0A0E2
  • Lens LL01CR-BLU03L06-M2
  • Inductor SRN8040TA-3R3Y
  • OpAmp NCS2005SN1T1G
  • SMPS LTC3122EDE#PBF
  • Switch TL1100AF160Q
  • PTC 0ZCJ0200FF2C
  • Battery holder 1043
  • FET 2N7002

What you will not get:

  • Any physical enclosure or any piece of material.

Eval design presentation:

Disclaimer

💾 The Hardware Design Template is a downloadable digital product (delivery policy)


Dimensions

Not applicable

View full details

A jump start

Mechanical simplicity along with tested components keep you on track to the final product.

  • ECAD project

    Simple and clean ECAD project. The size of the PCB is the maximum possible and the shape always follows the enclosure borders.

  • Bill of material

    List of all recommended components that were verified to be perfectly fiting the enclosure openings.
