Round sensor node type B

Round sensor node type B

Regular price €4,90 EUR
Regular price Sale price €4,90 EUR
Sale Sold out
Tax included.
Size

What you will get:

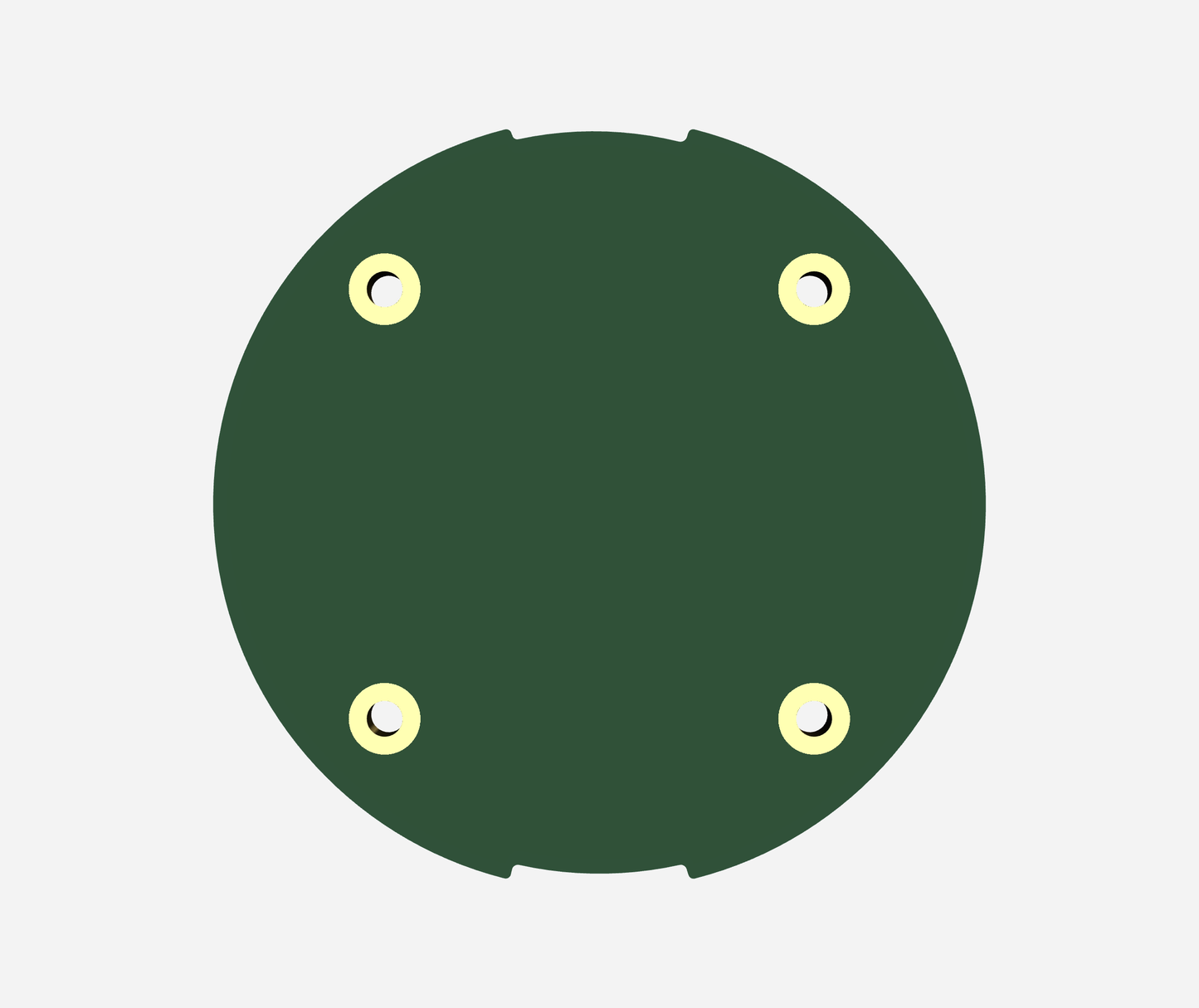

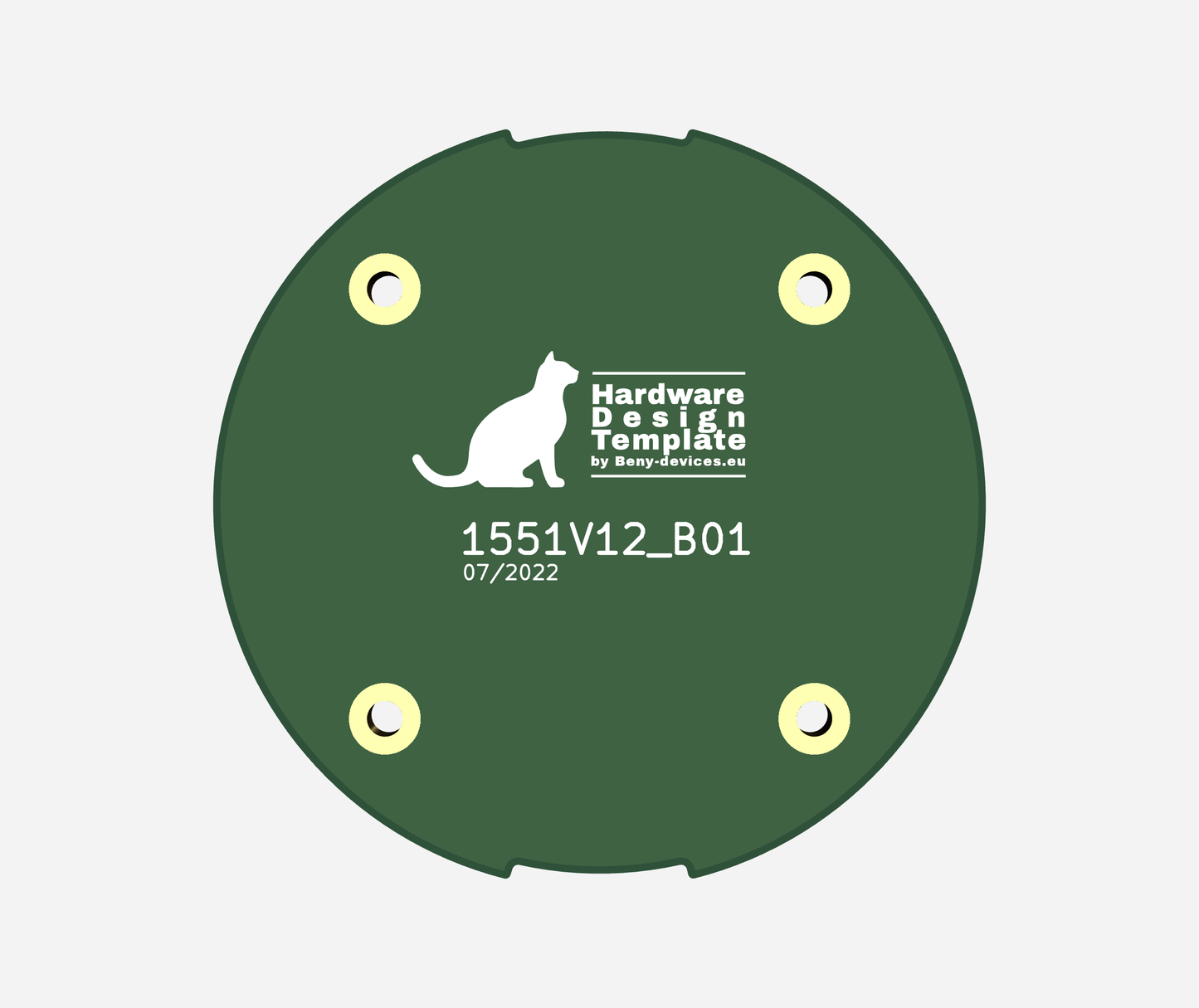

The Hardware Design Template package for the easiest schematic design and PCB layout of a sensor node, thermometer or similar device.

The Hardware Design Template package contains:

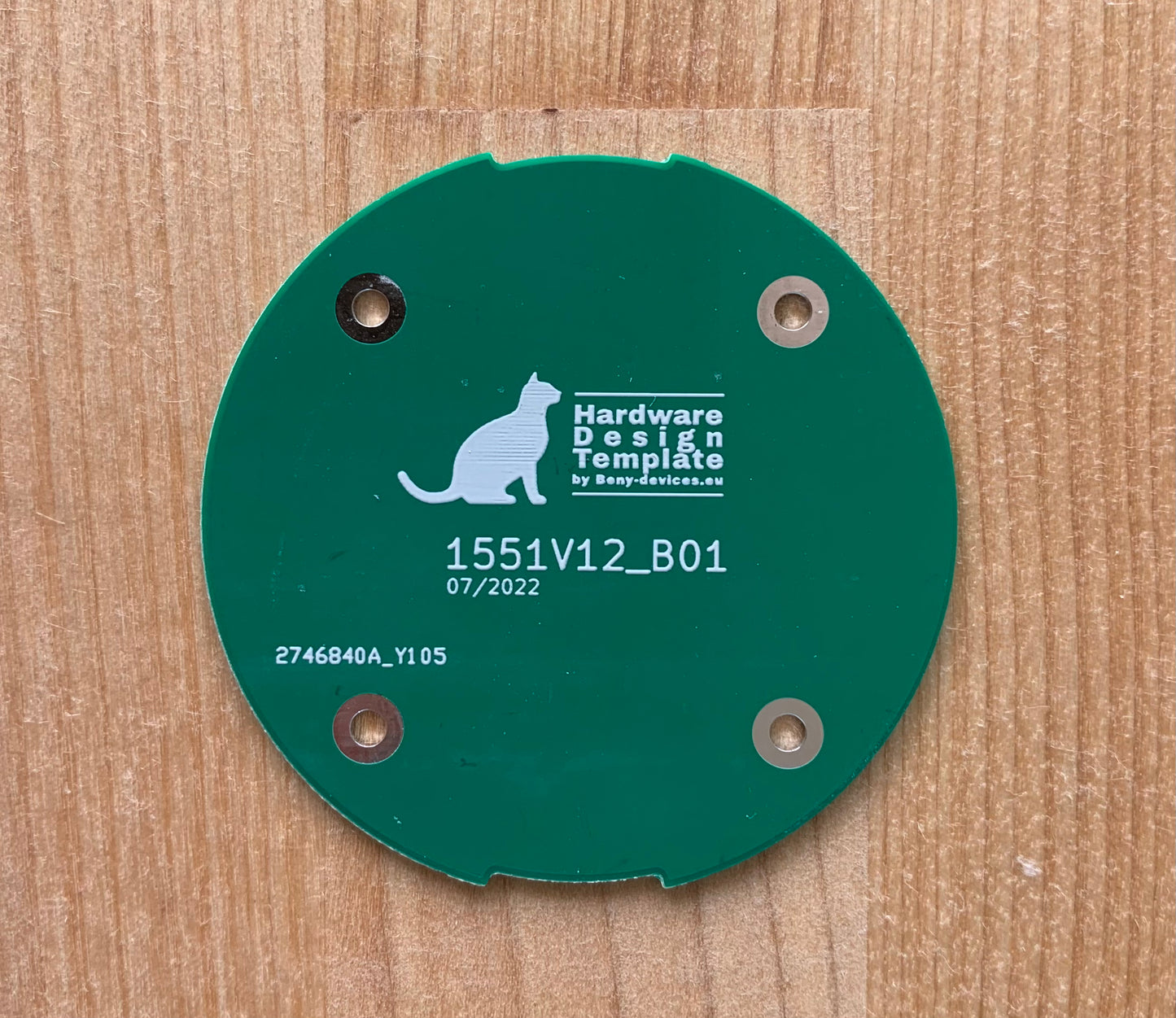

  • Design data of the verified PCB template.
  • Instructions on how to order the enclosure by yourself.

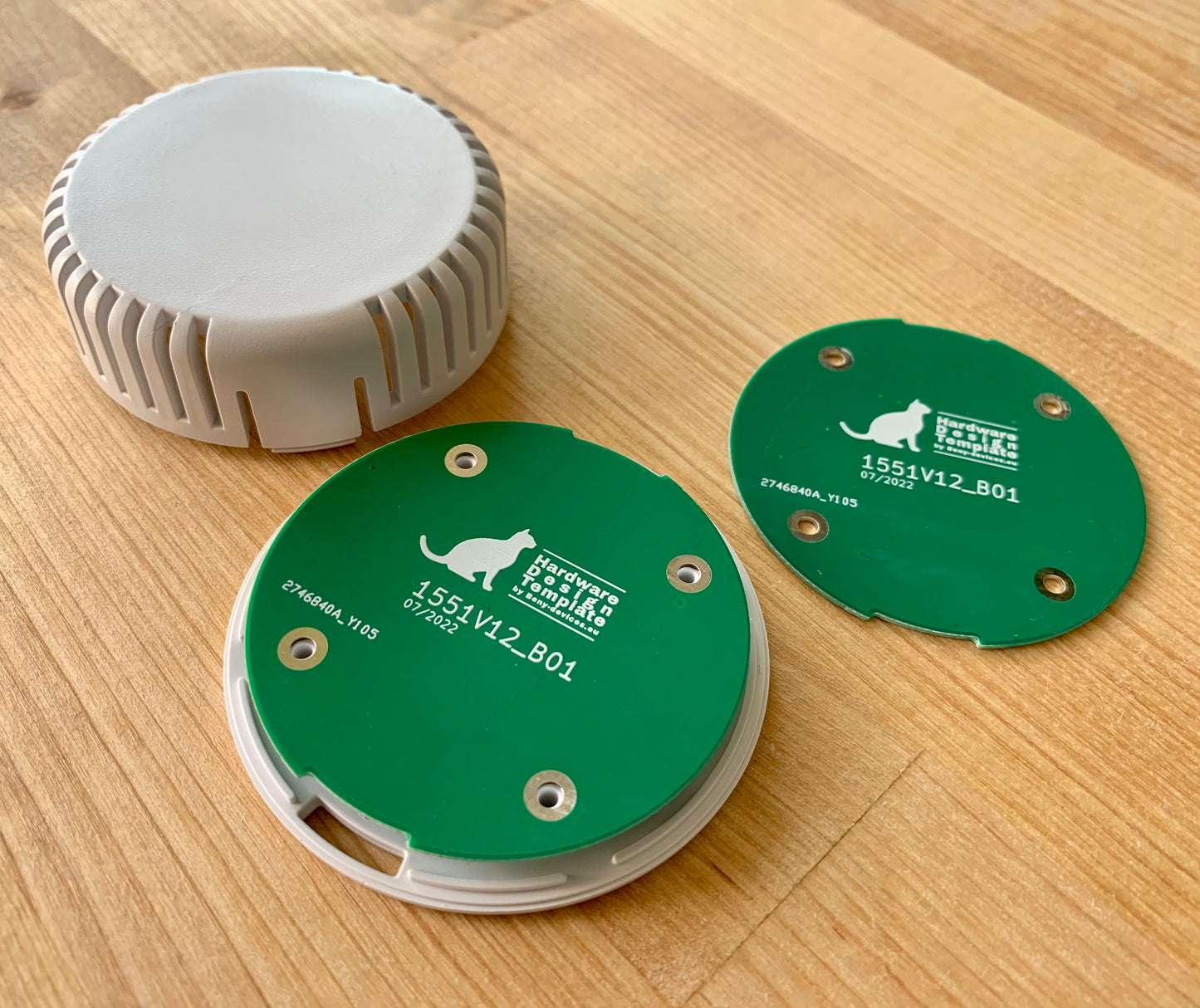

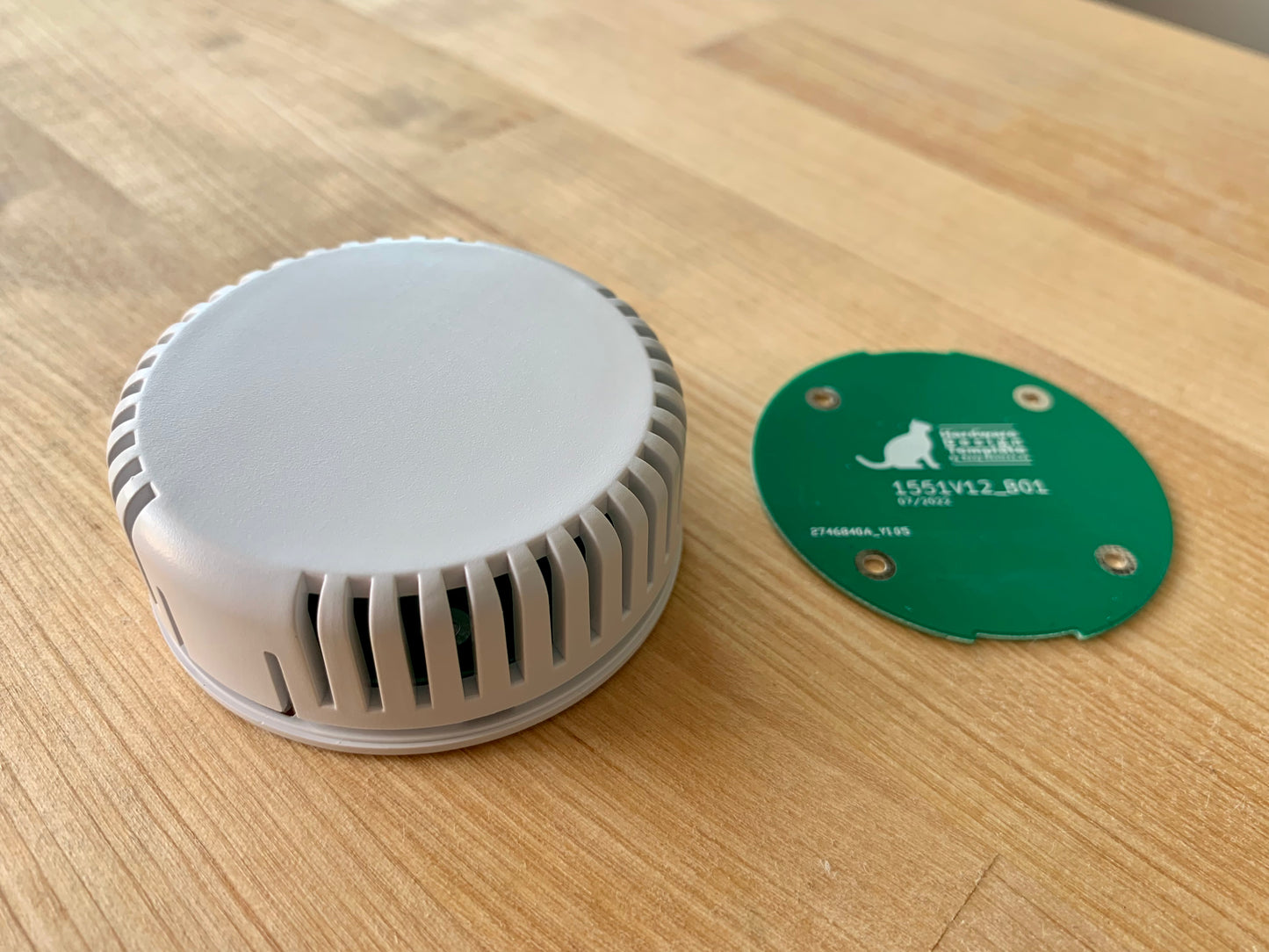

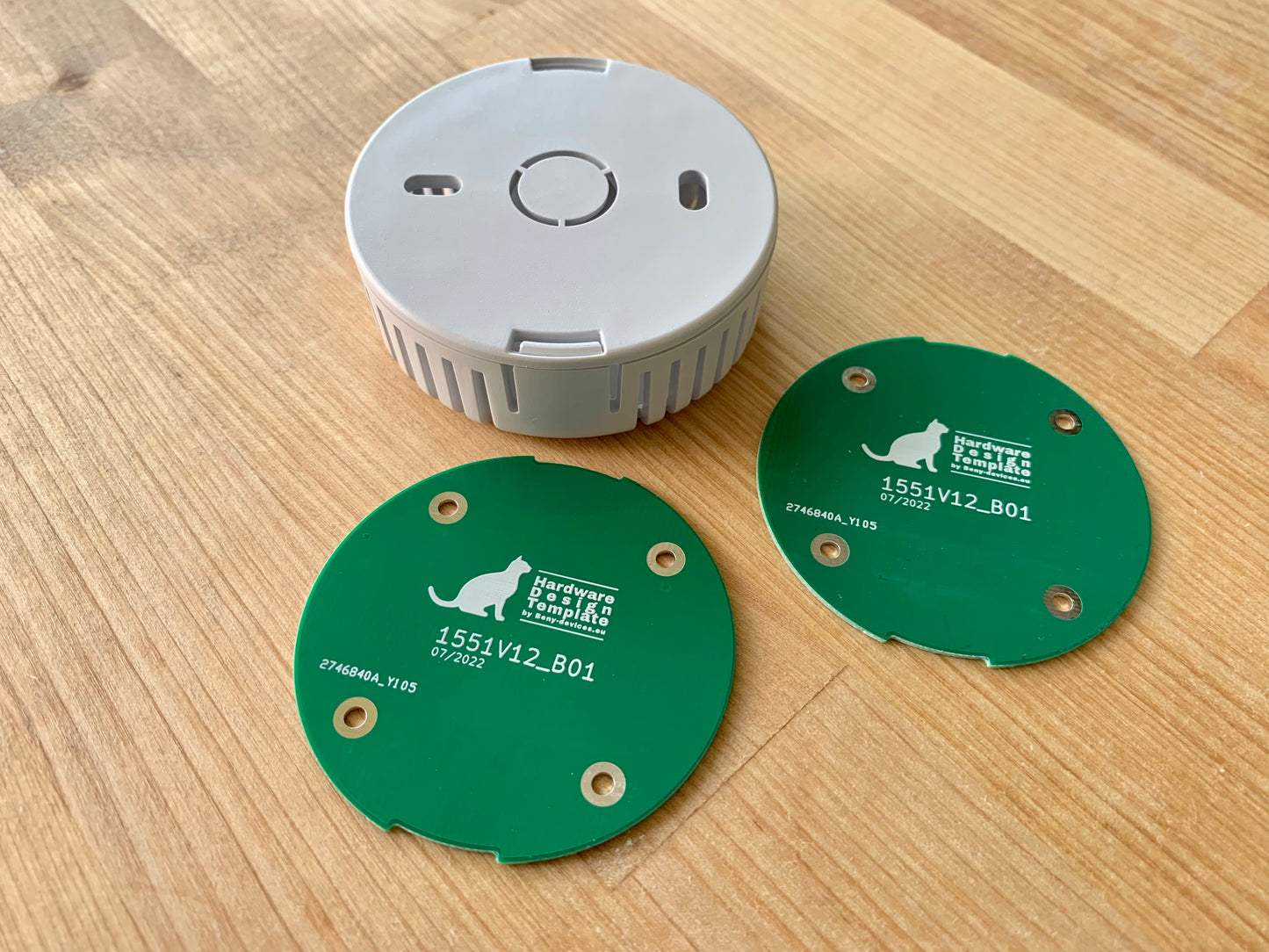

The used enclosure is Hammond Manufacturing 1551V12.

What you will not get:

  • Any physical enclosure or any piece of material.

Disclaimer

💾 The Hardware Design Template is a downloadable digital product (delivery policy)

Dimensions

∅ 60 mm

View full details

A jump start

Mechanical simplicity along with tested components keep you on track to the final product.

  • ECAD project

    Simple and clean ECAD project. The size of the PCB is the maximum possible and the shape always follows the enclosure borders.

  • Bill of material

    List of all recommended components that were verified to be perfectly fiting the enclosure openings.
