Circular IoT Sensor node
Circular IoT Sensor node
Regular price
€6,90 EUR
Regular price
Sale price
€6,90 EUR
Unit price
per
Tax included.
Couldn't load pickup availability
What you will get:

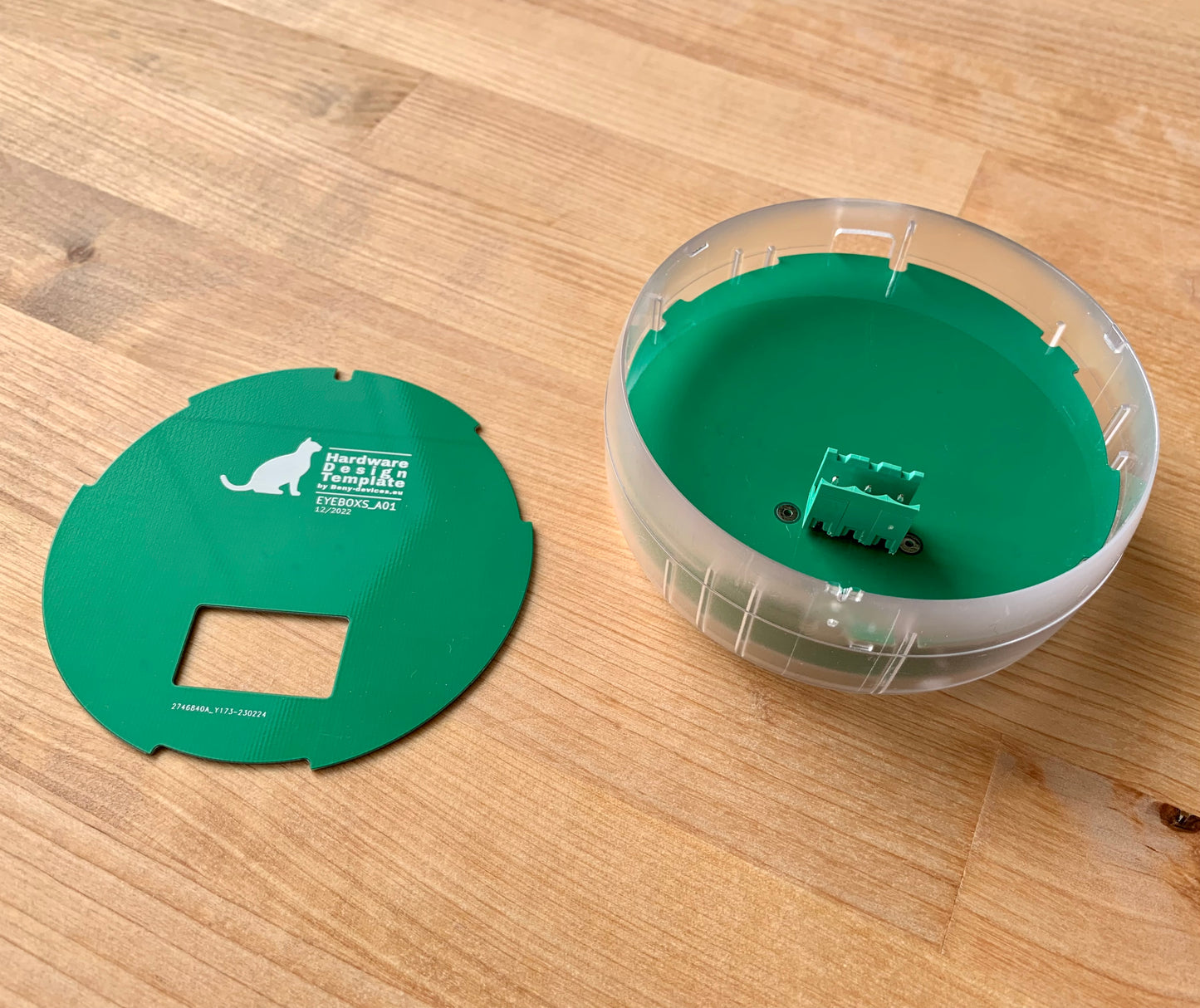

The Hardware Design Template package for the easiest schematic design and PCB layout of a Smart home node, IoT node or similar device.
The Hardware Design Template package contains:
- Design data of the verified PCB template.
- Instructions on how to order the enclosure by yourself.

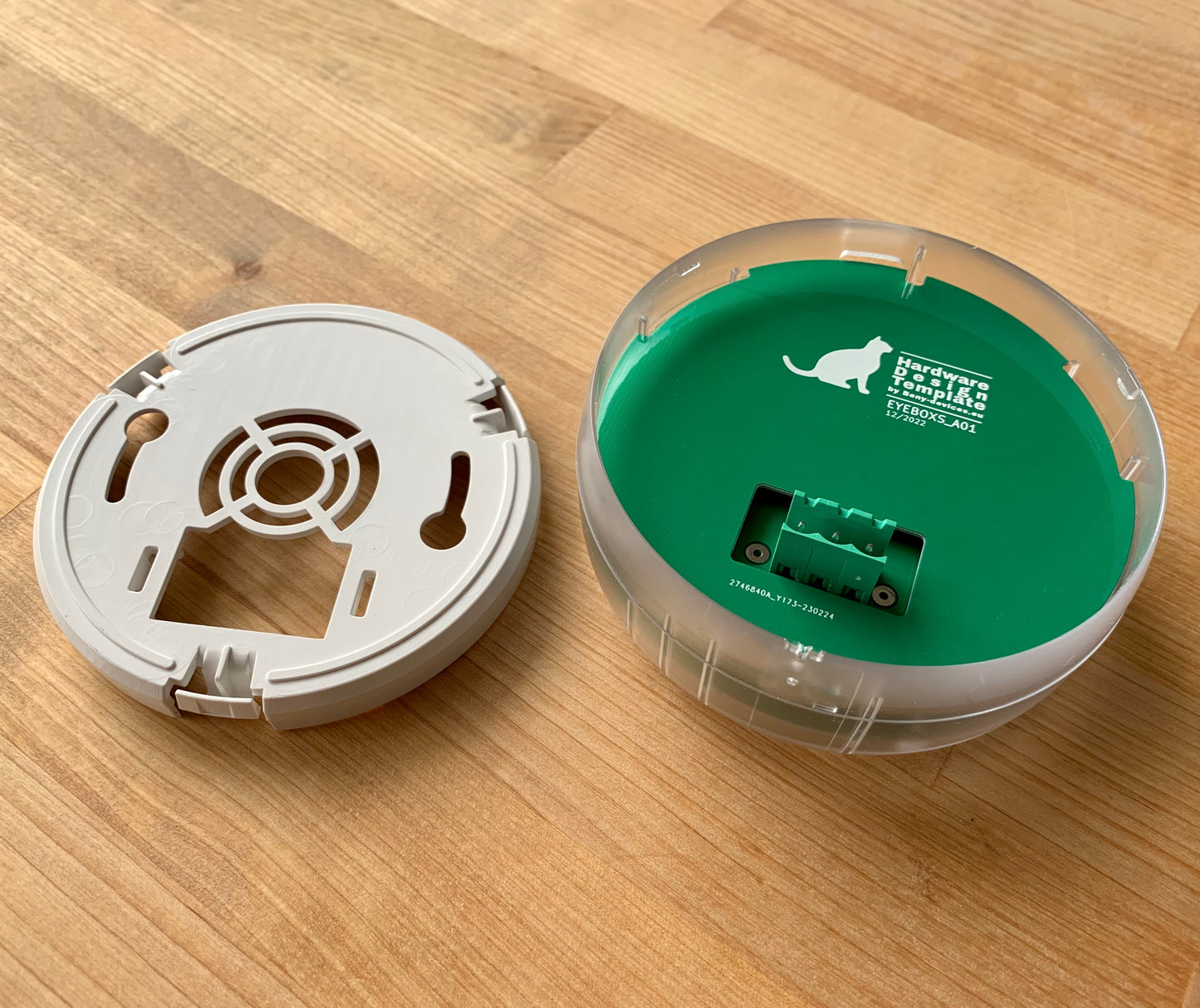

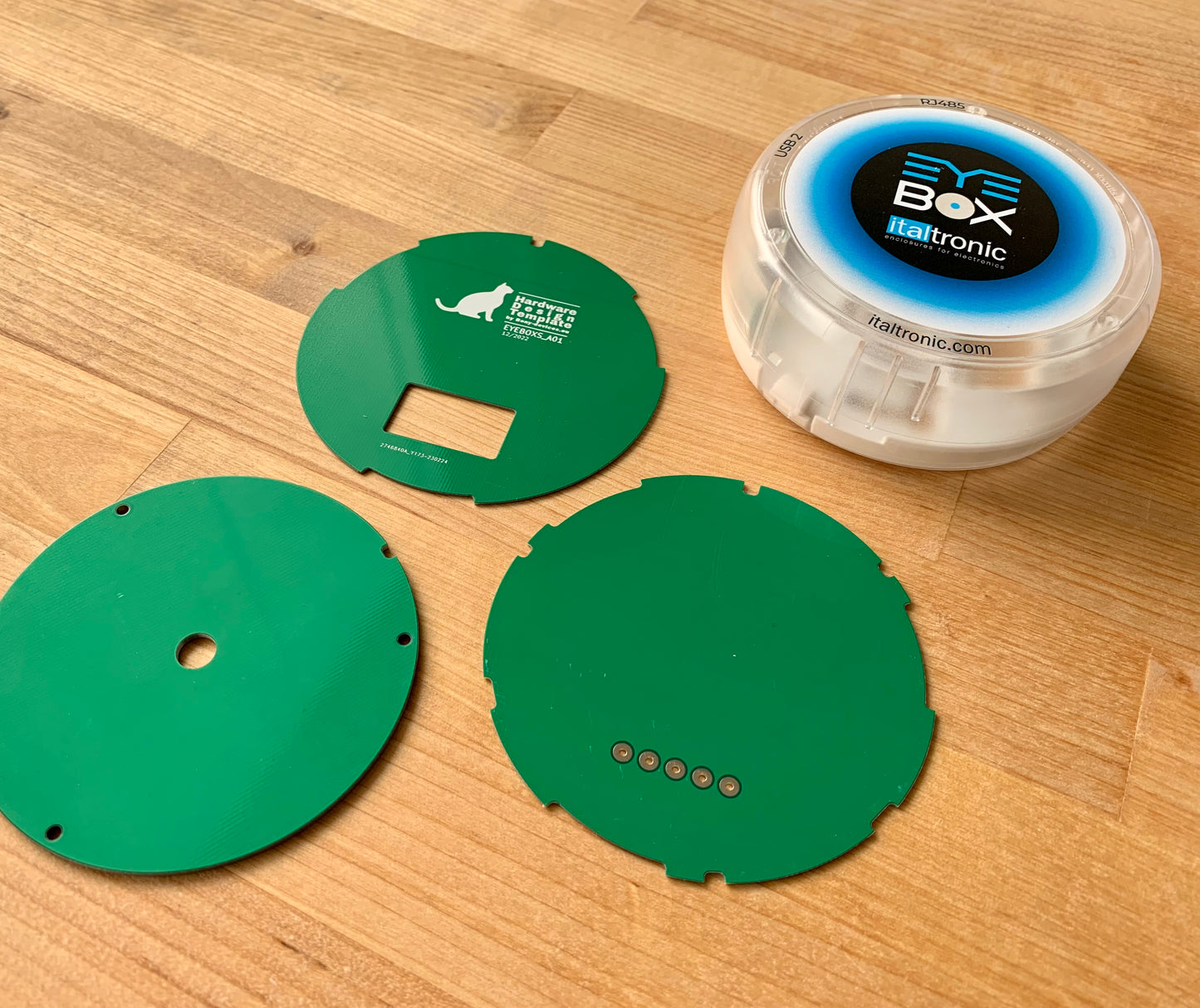

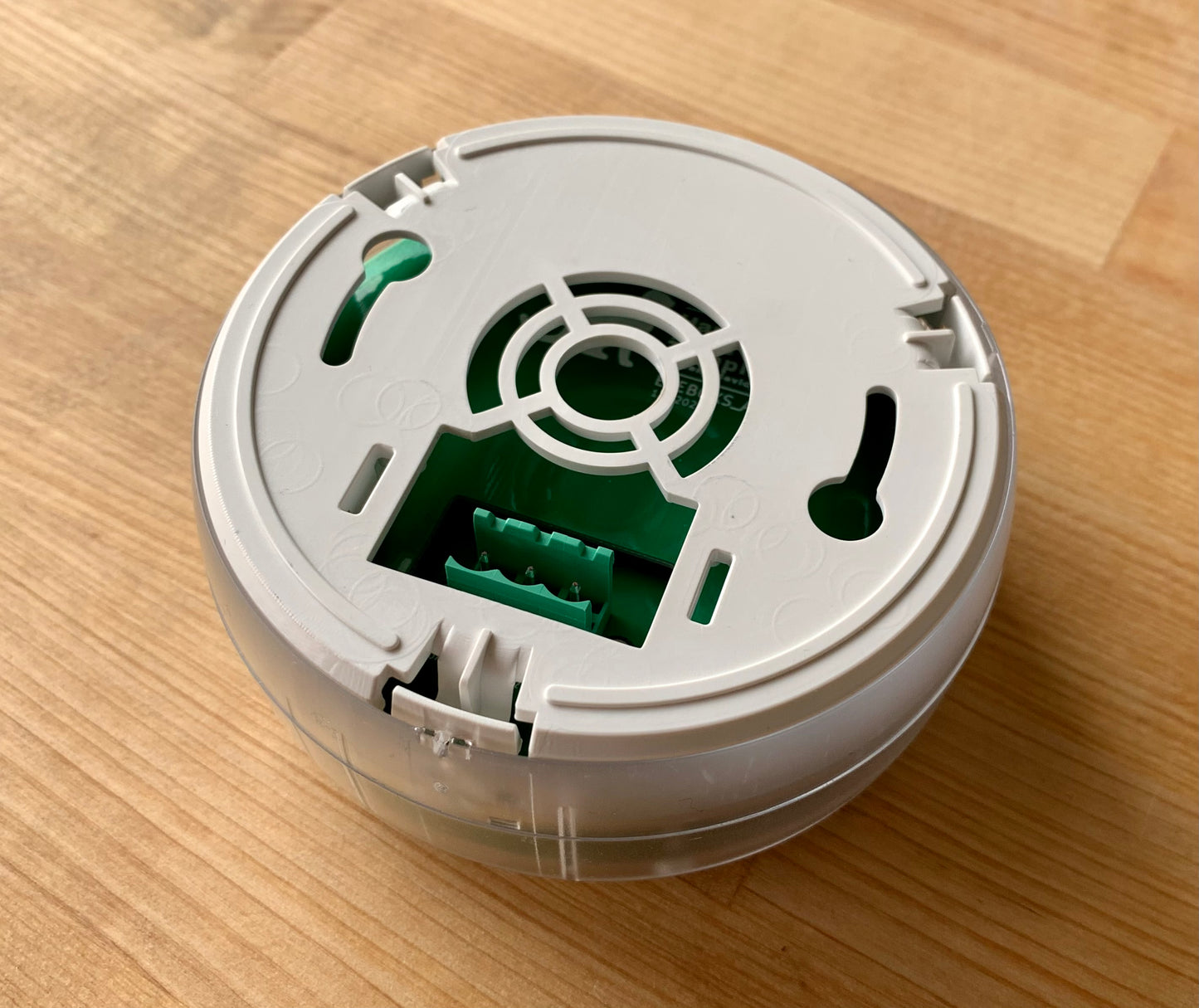

The used enclosure is ItalTronic EYEBOX Simple.
What you will not get:
- Any physical enclosure or any piece of material.
Disclaimer
💾 The Hardware Design Template is a downloadable digital product (delivery policy)
Dimensions
Dimensions
95x40 mm
![Circular IoT Sensor node](http://beny-devices.eu/cdn/shop/products/IMG_3101.jpg?v=1678206562&width=1445)
![Circular IoT Sensor node](http://beny-devices.eu/cdn/shop/products/IMG_3098.jpg?v=1678206562&width=1445)
![Circular IoT Sensor node](http://beny-devices.eu/cdn/shop/products/IMG_3097.jpg?v=1678206562&width=1445)
![Circular IoT Sensor node](http://beny-devices.eu/cdn/shop/products/IMG_3099.jpg?v=1678206557&width=1445)
![Circular IoT Sensor node](http://beny-devices.eu/cdn/shop/products/IMG_3100.jpg?v=1678206557&width=1445)
![](http://beny-devices.eu/cdn/shop/products/968FAB21-0522-4DB5-9FFF-EF91B6C02992_1_201_a.heic?v=1663490048&width=1500)
A jump start
Mechanical simplicity along with tested components keep you on track to the final product.
-
ECAD project

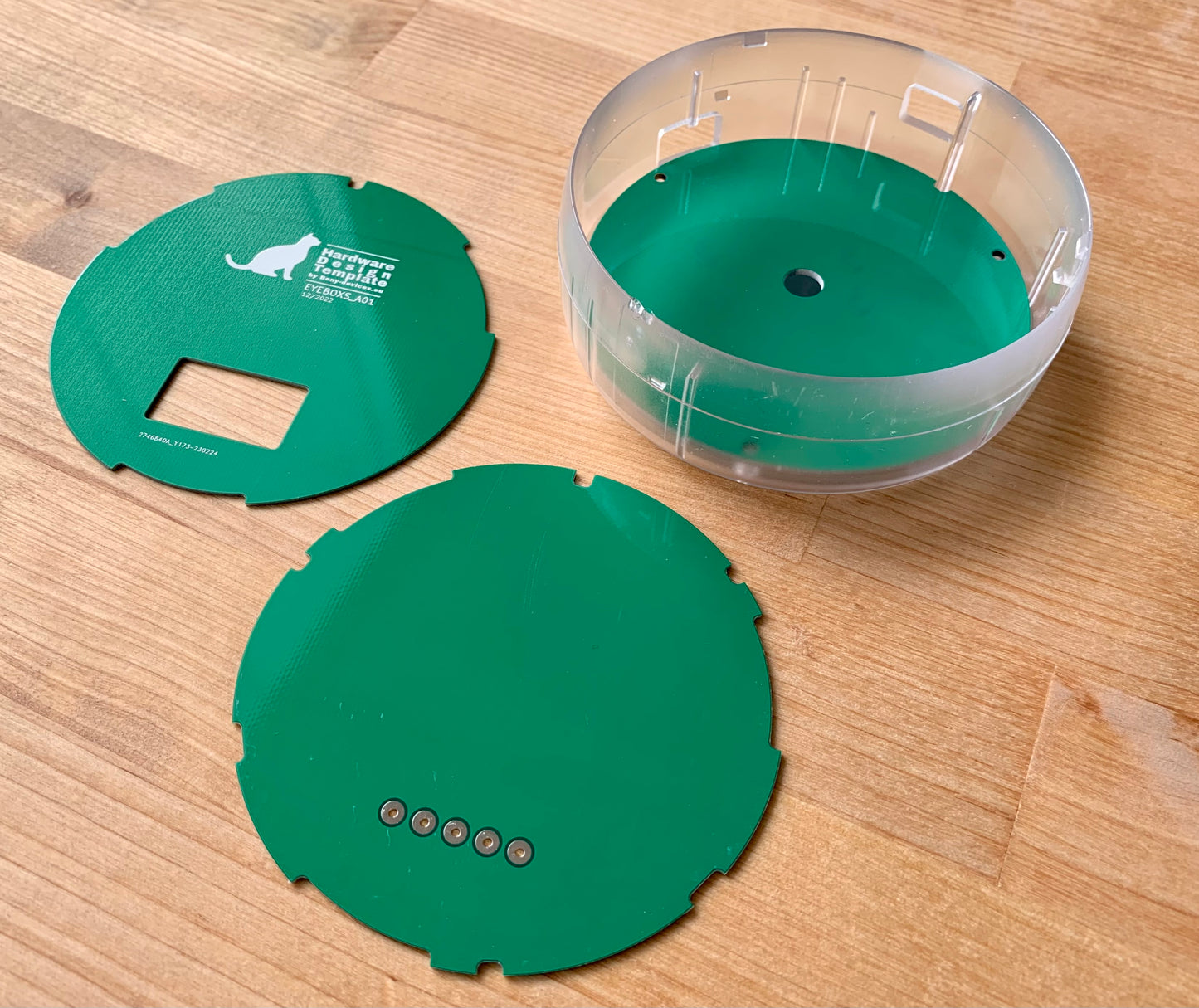

Simple and clean ECAD project. The size of the PCB is the maximum possible and the shape always follows the enclosure borders.
-
Bill of material
List of all recommended components that were verified to be perfectly fiting the enclosure openings.
