Carrier CM4S eval design

Carrier CM4S eval design

ā‚¬21,66 EUR
ā‚¬21,66 EUR
Sale Sold out
Tax included.
Data format

What you will get:

The Hardware Design Template Schematic package and PCB layout package for the most straightforward schematic design.

The Hardware Design Template Schematic package contains the following:

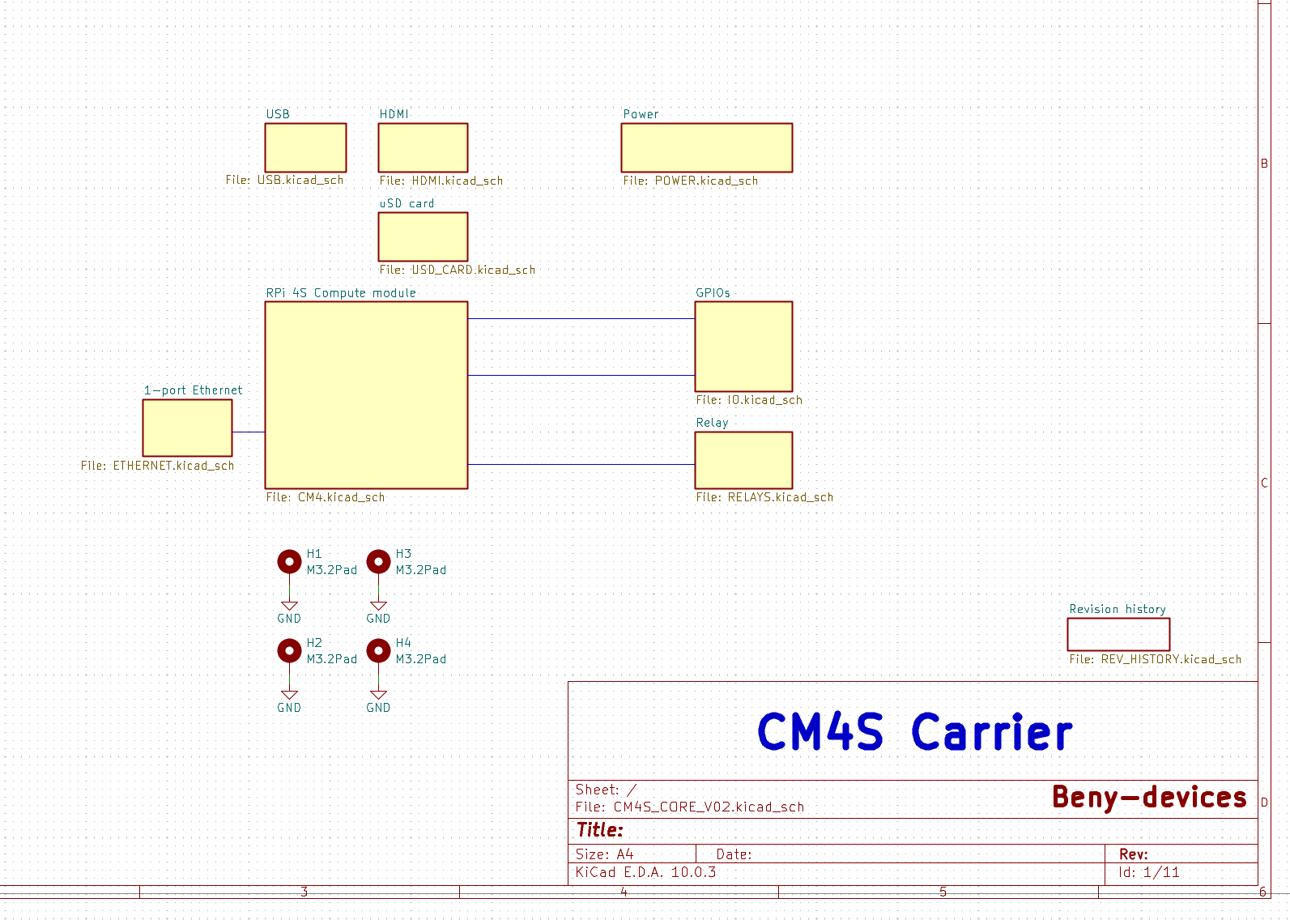

  • A minimal and verified and fully functional schematic drawing.

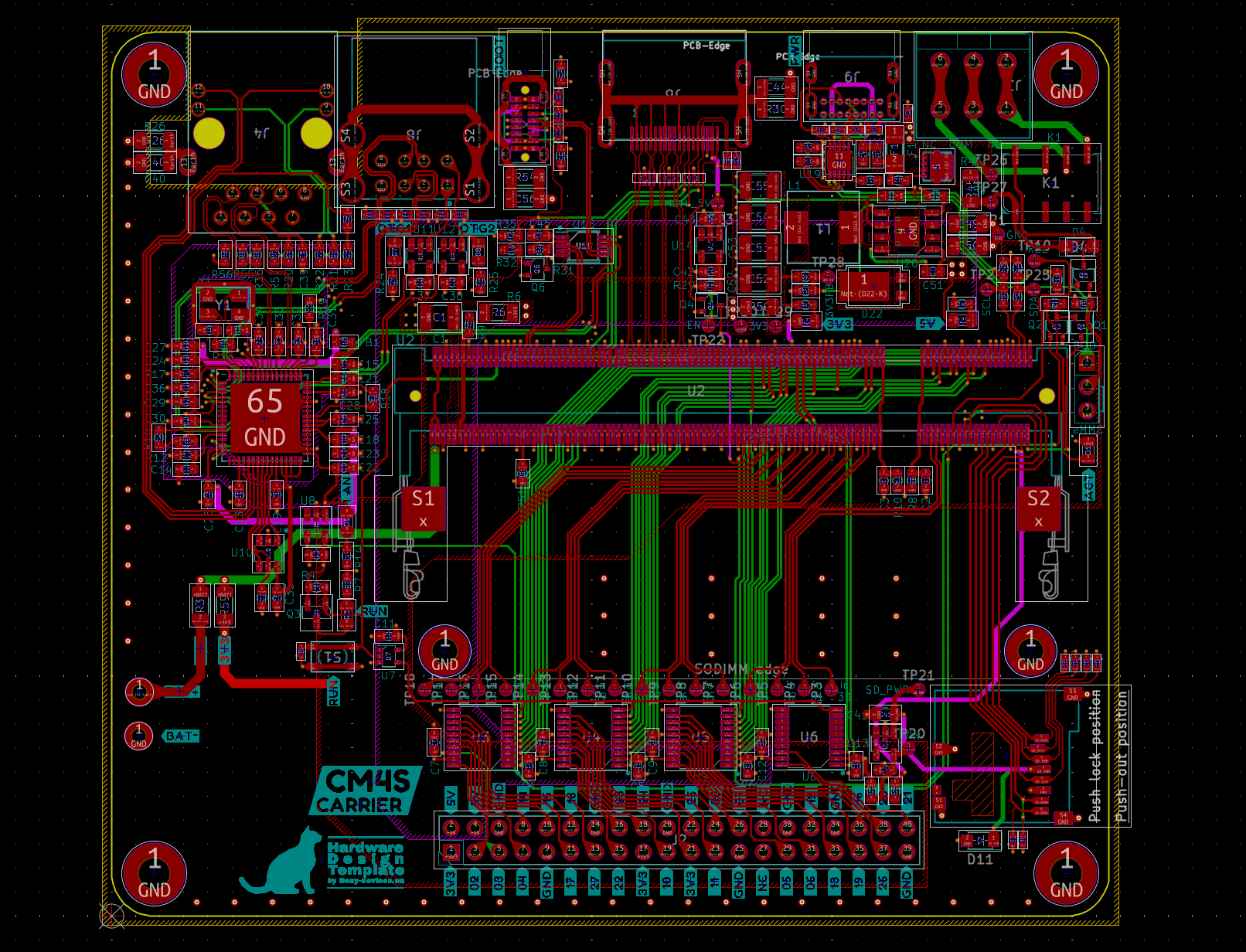

  • A minimal and verified and fully functional PCB layout.
  • Clean and easy-to-order BOM of all components used in the schematic.

The Hardware Design Template Schematic package supports the following:

  • Verified usage of the Compute Module Raspberry Pi CM4S.
  • Two buck converters.
  • Two USB Type-C connectors.
  • Full-featured RPI external header.
  • 10/100 MBit LAN communicator.
  • SD card slot for CM4S-Lite models.
  • Two USB 2.0 Type-A.
  • One SPDT relay.
  • HDMI output.
  • Minimal design.
  • Easy-to-be-reused-design.

What you will not get:

    • Any physical enclosure or any piece of material.

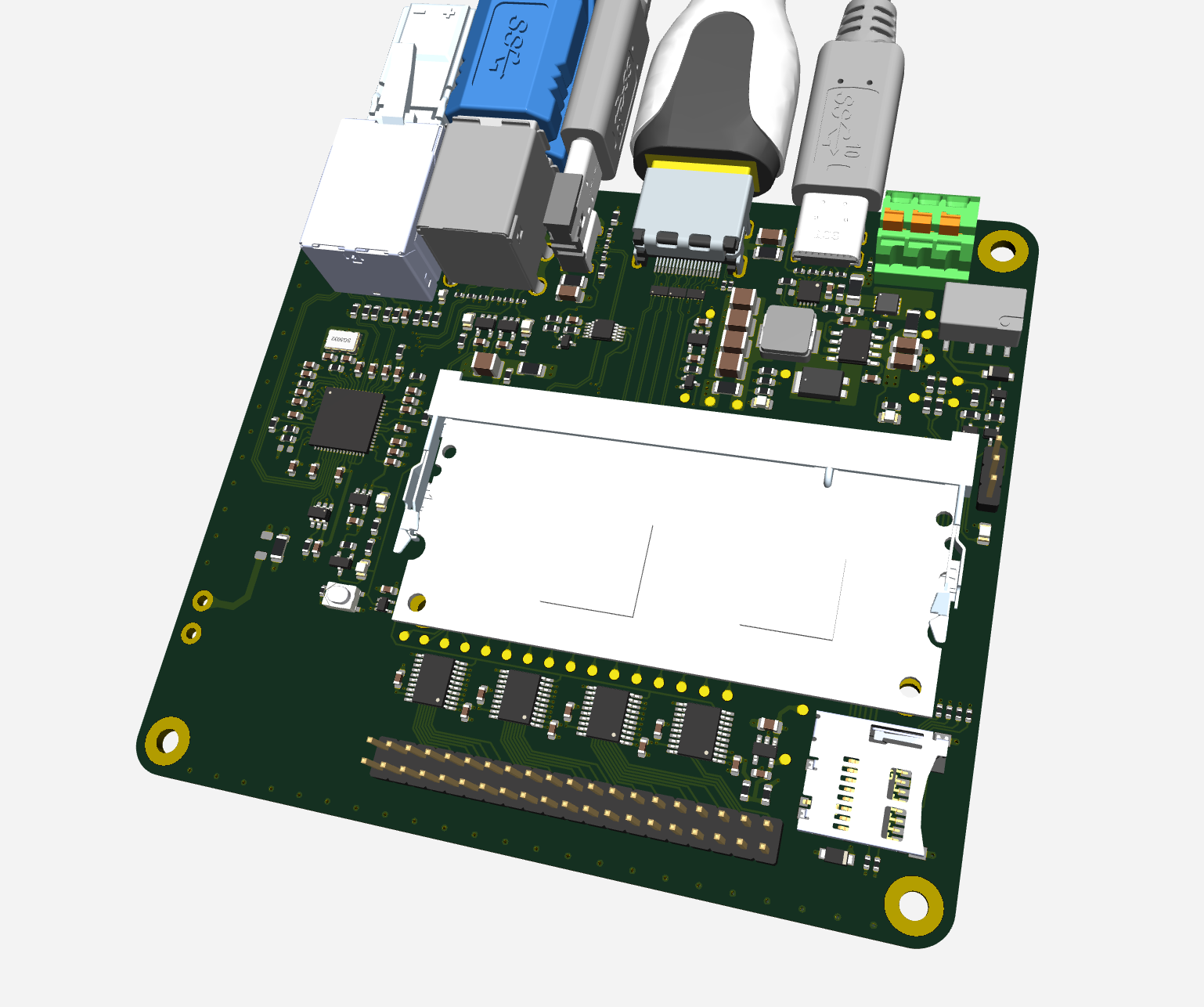

    Eval design presentation:

    Disclaimer

    šŸ’¾ The Hardware Design Template is a downloadable digital product (delivery policy)


    Dimensions

    105.5 x 93.5 mm

    View full details

    A jump start

    Mechanical simplicity along with tested components keep you on track to the final product.

    • ECAD project

      Simple and clean ECAD project. The size of the PCB is the maximum possible and the shape always follows the enclosure borders.

    • Bill of material

      List of all recommended components that were verified to be perfectly fiting the enclosure openings.
