BC53.6 DIN Vertical

BC53.6 DIN Vertical

Regular price €6,90 EUR
Regular price Sale price €6,90 EUR
Sale Sold out
Tax included.
Data format

What you will get:

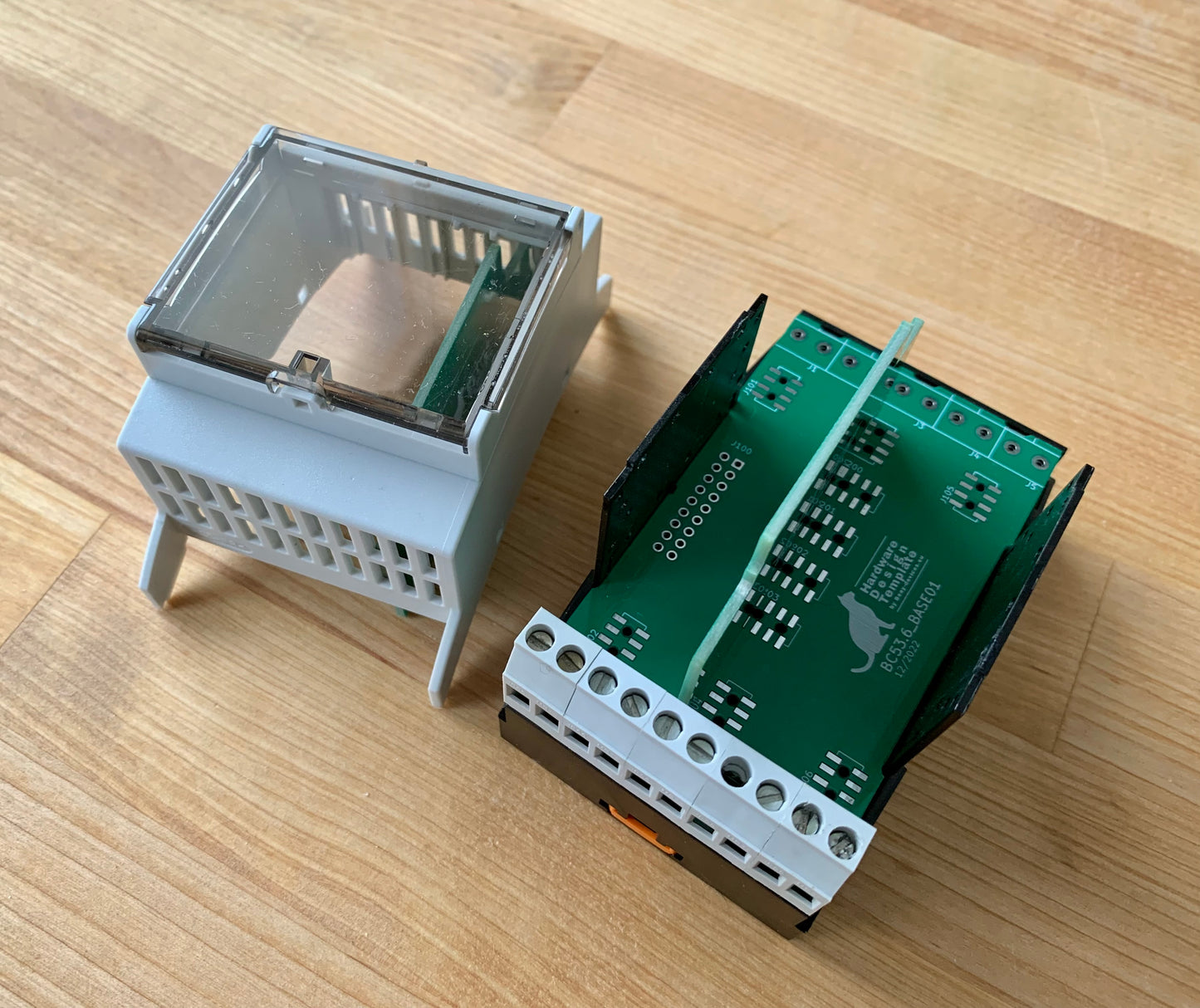

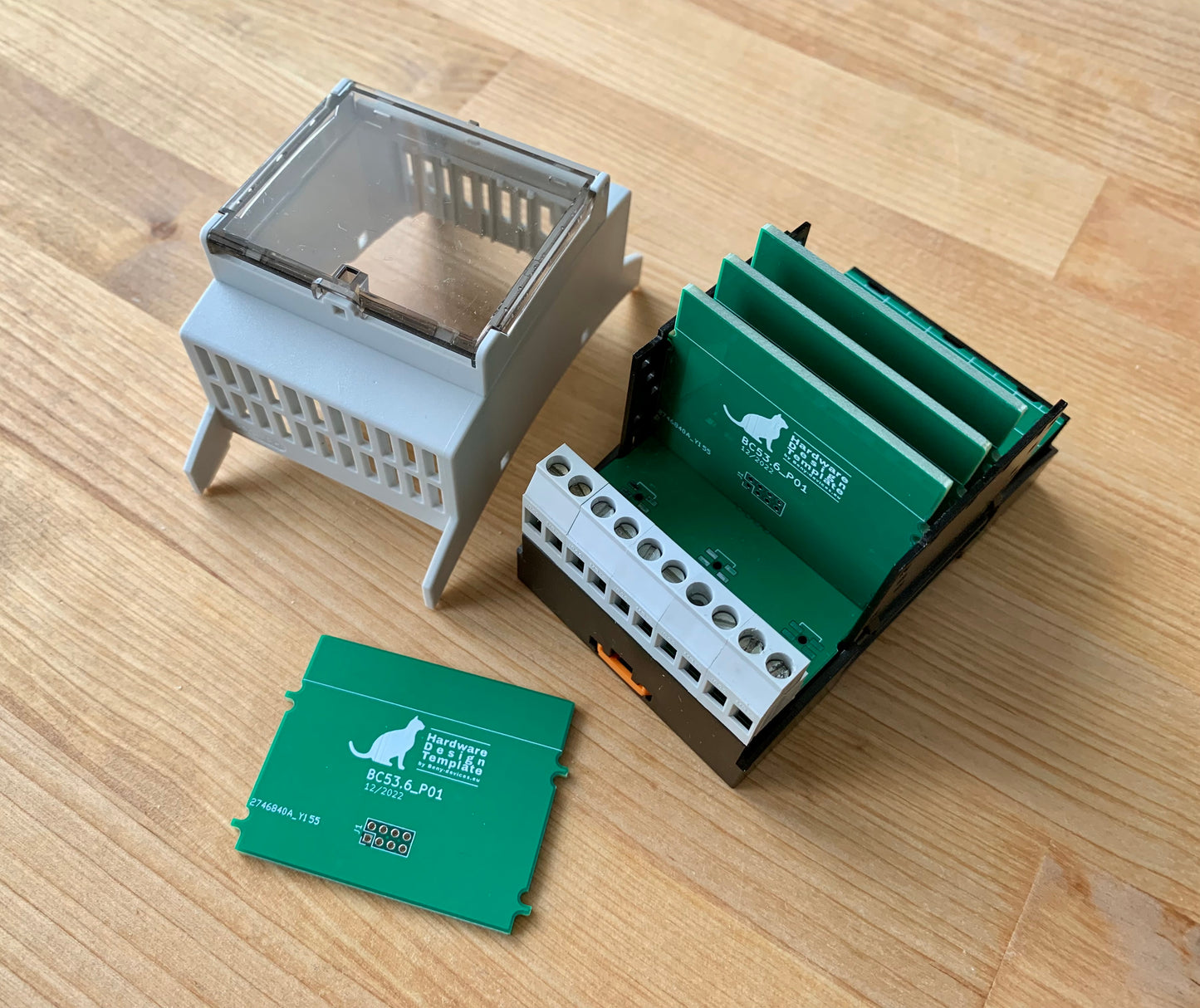

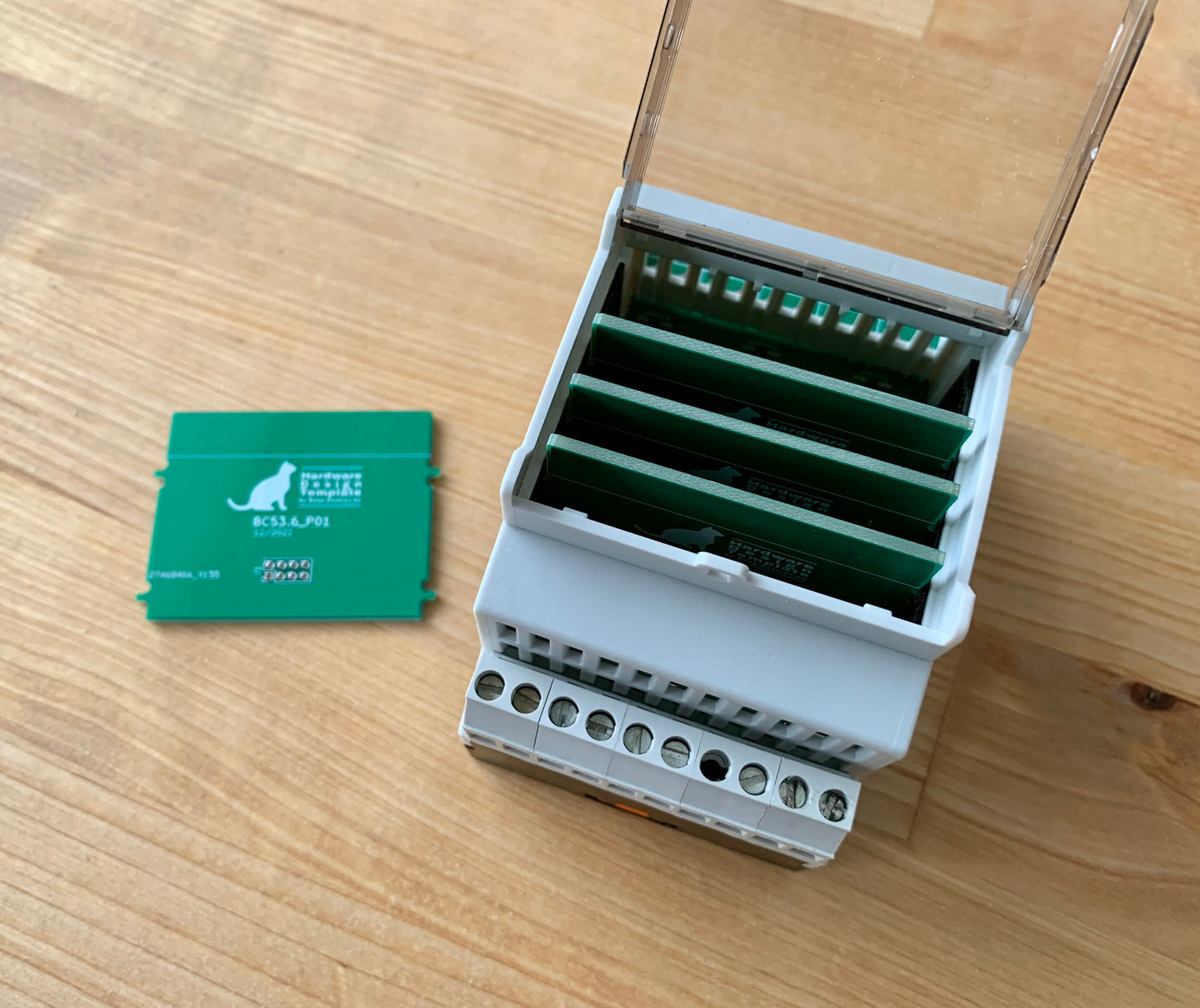

The Hardware Design Template package for the easiest schematic design and PCB layout of an Industrial instrument compatible with DIN rail (TS35) BC 53.6 enclosure (4-module width) with vertical boards.

The Hardware Design Template package contains the following:

  • Design data of the verified PCB template.
  • A design library of all used symbols.
  • A design library of all used footprints.
  • Clean and easy-to-order BOM of all components compatible with the enclosure openings.
  • Instructions on how to order the enclosure by yourself.

The Hardware Design Template supports the following:

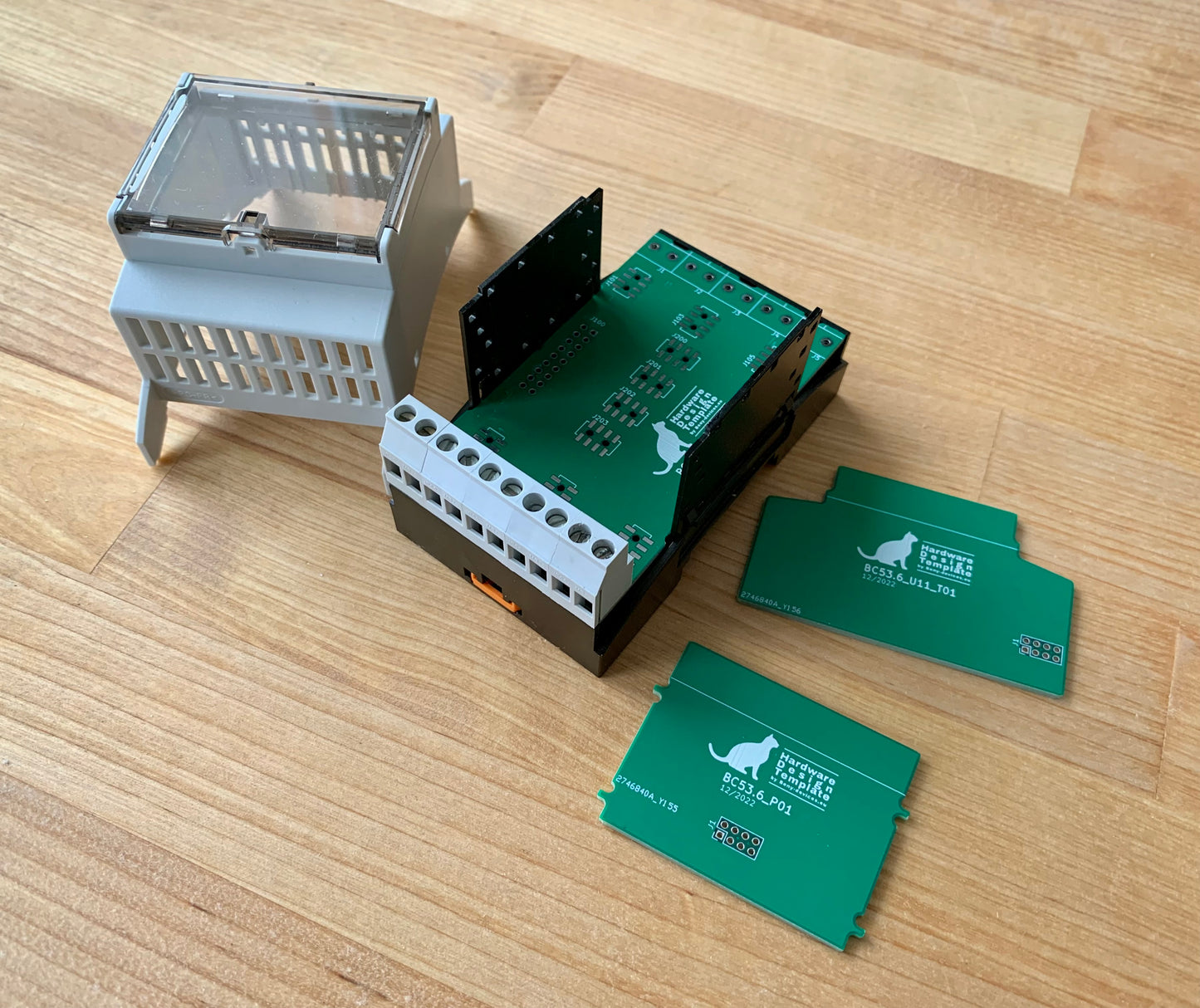

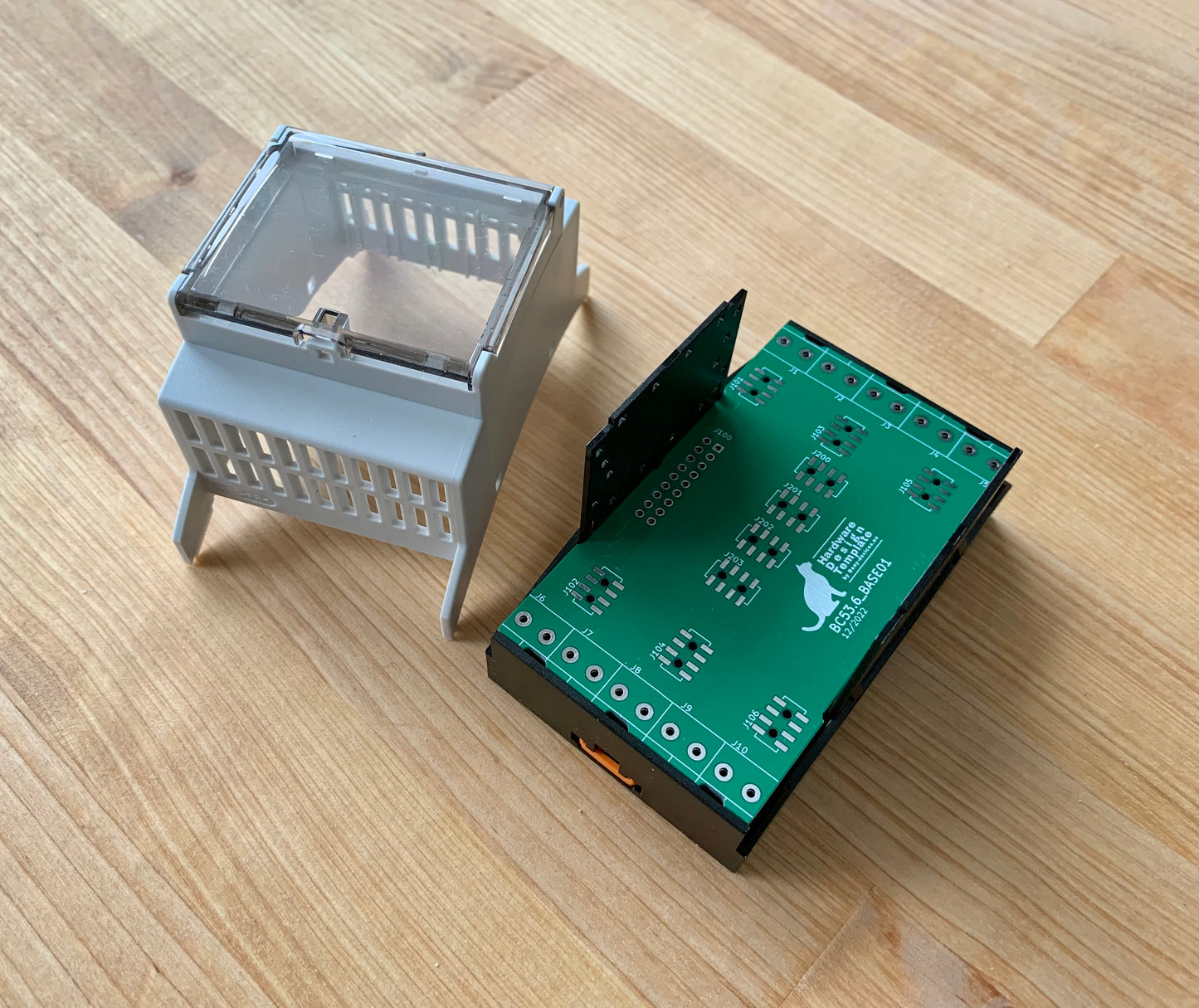

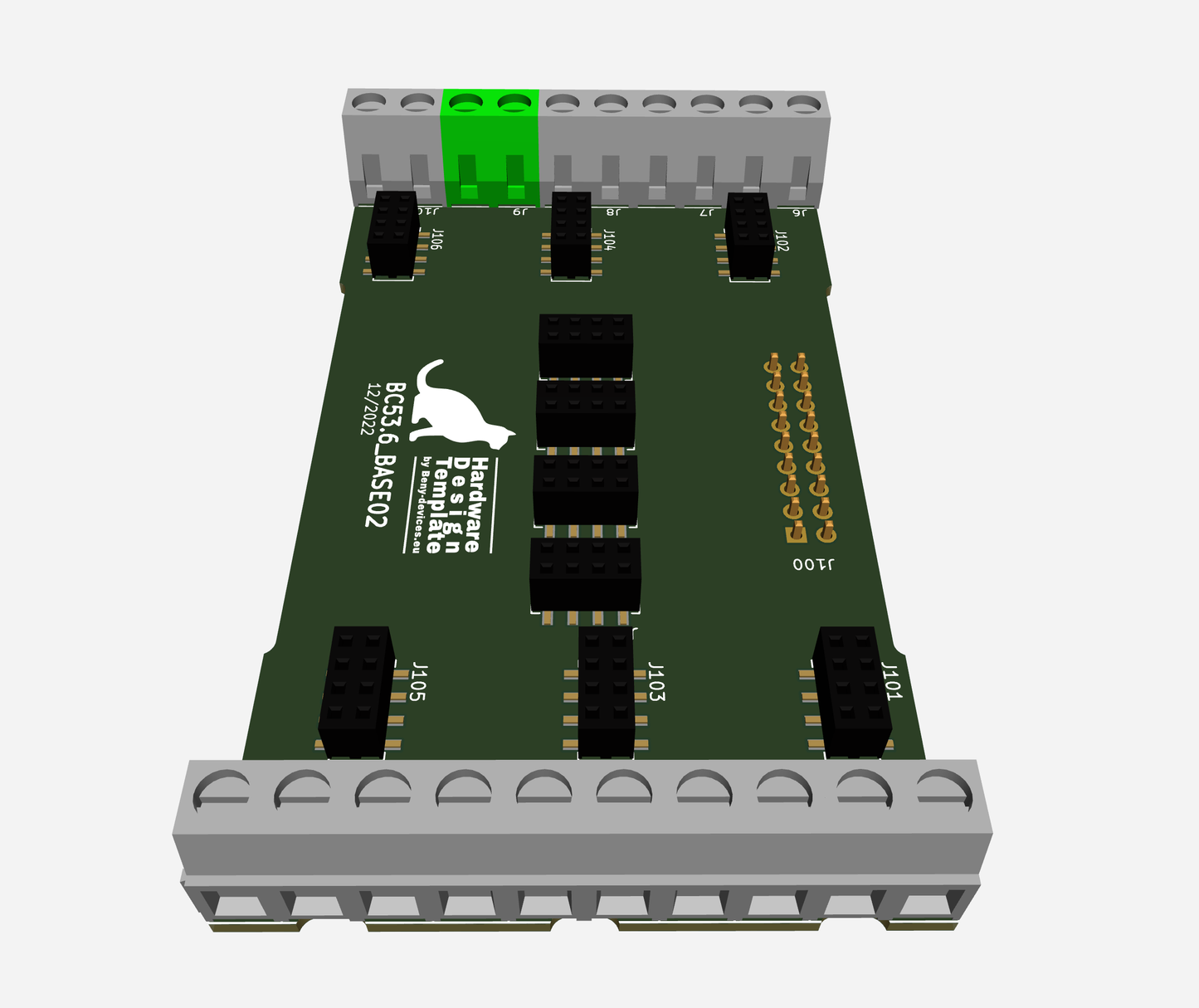

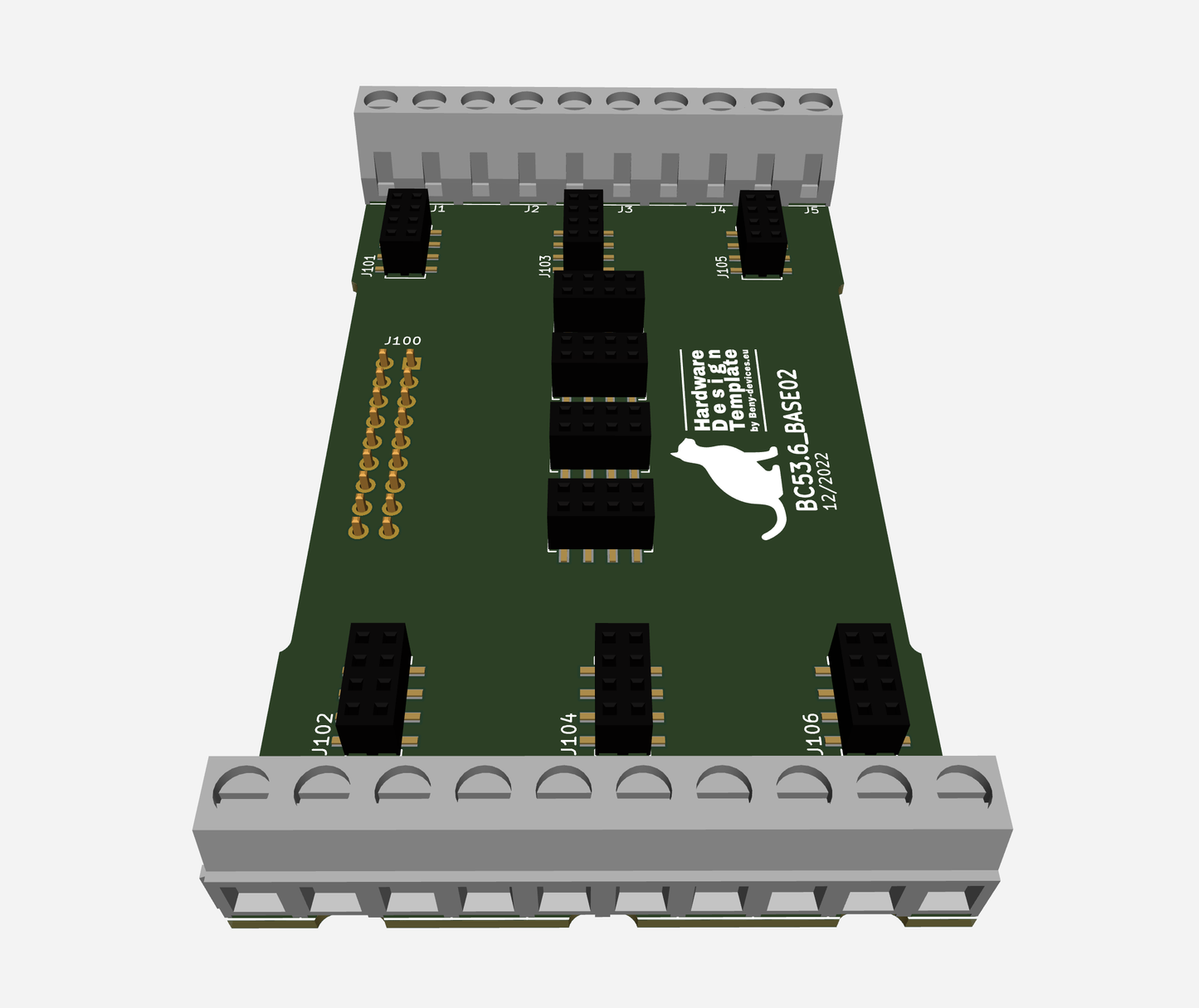

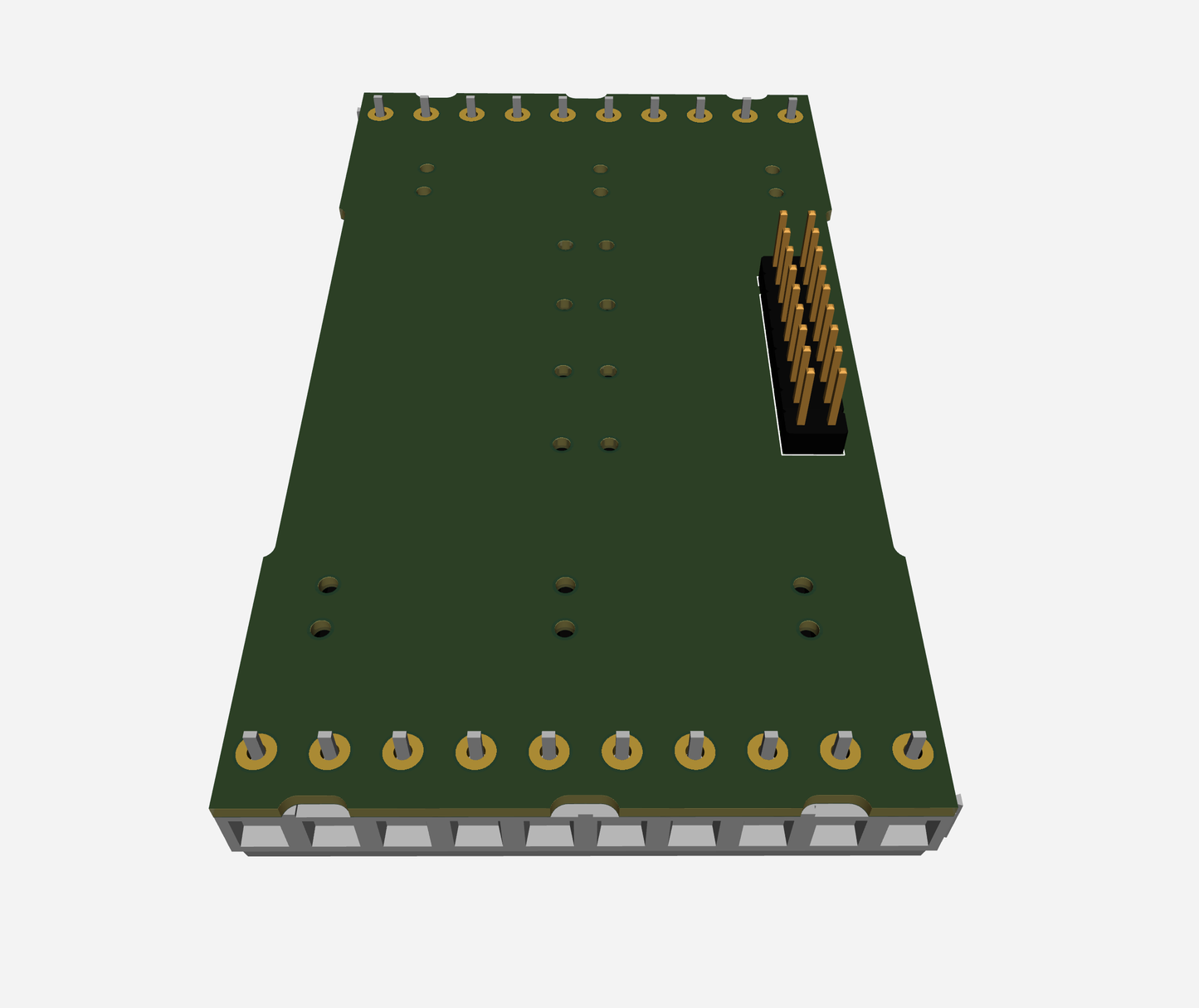

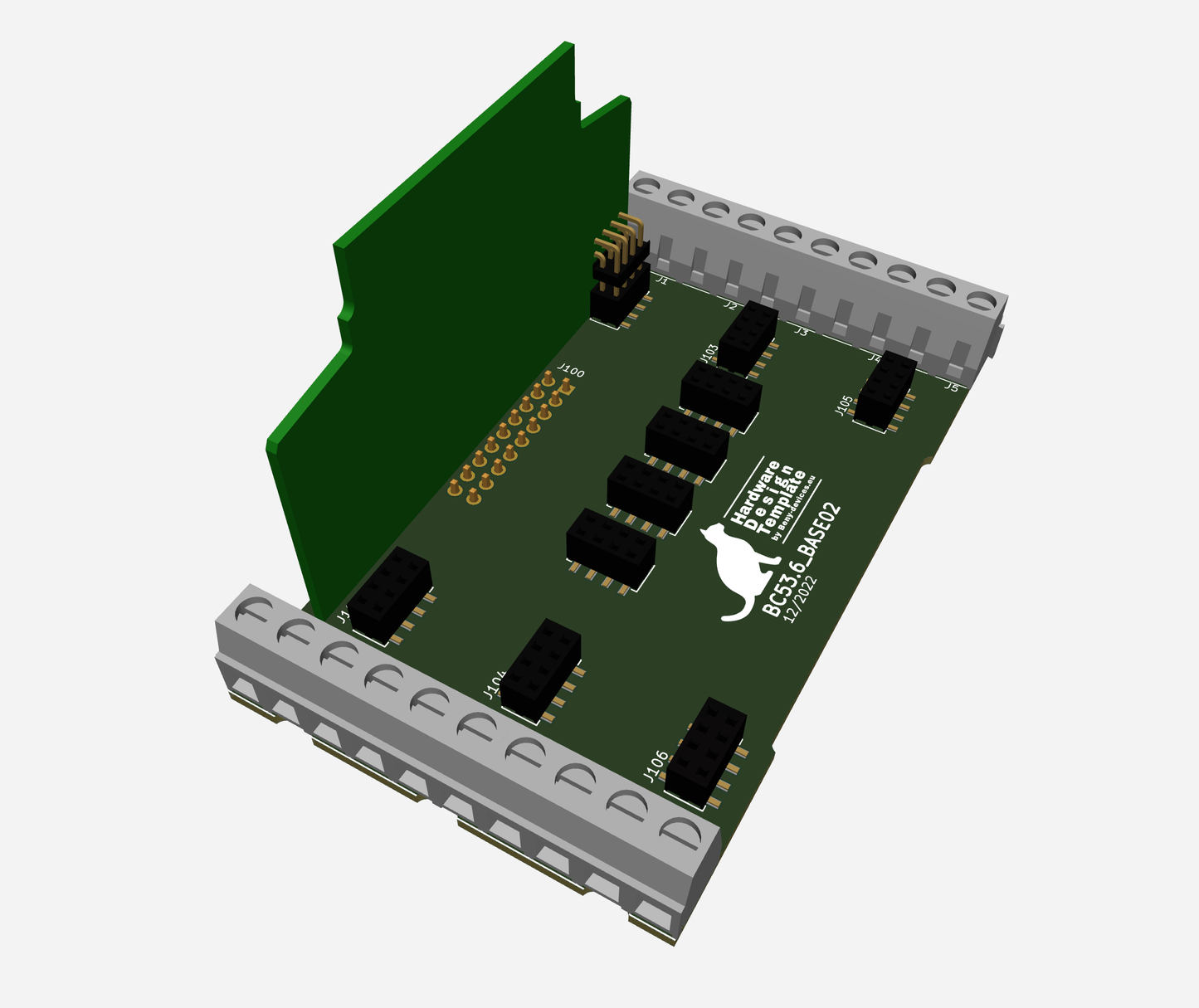

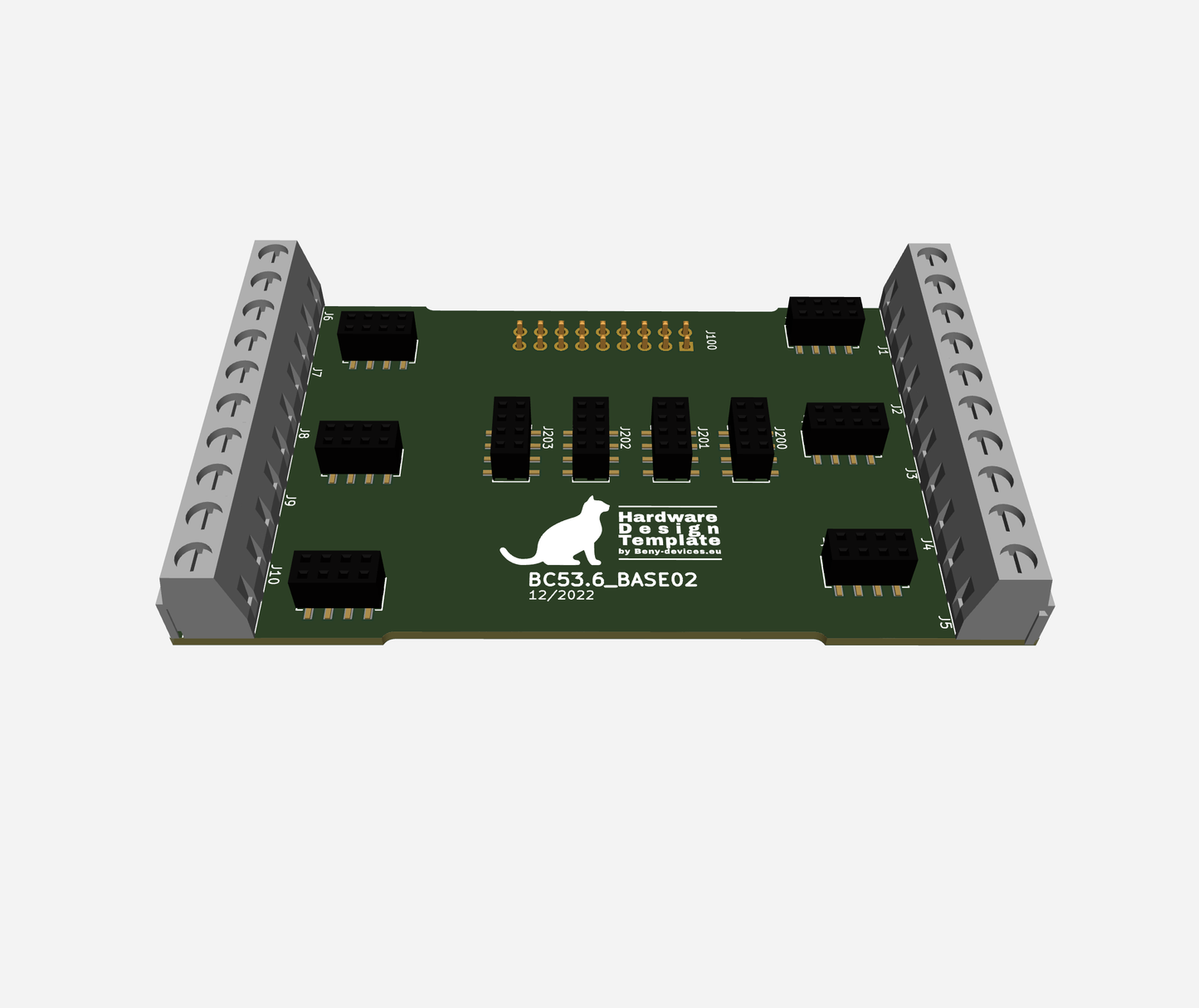

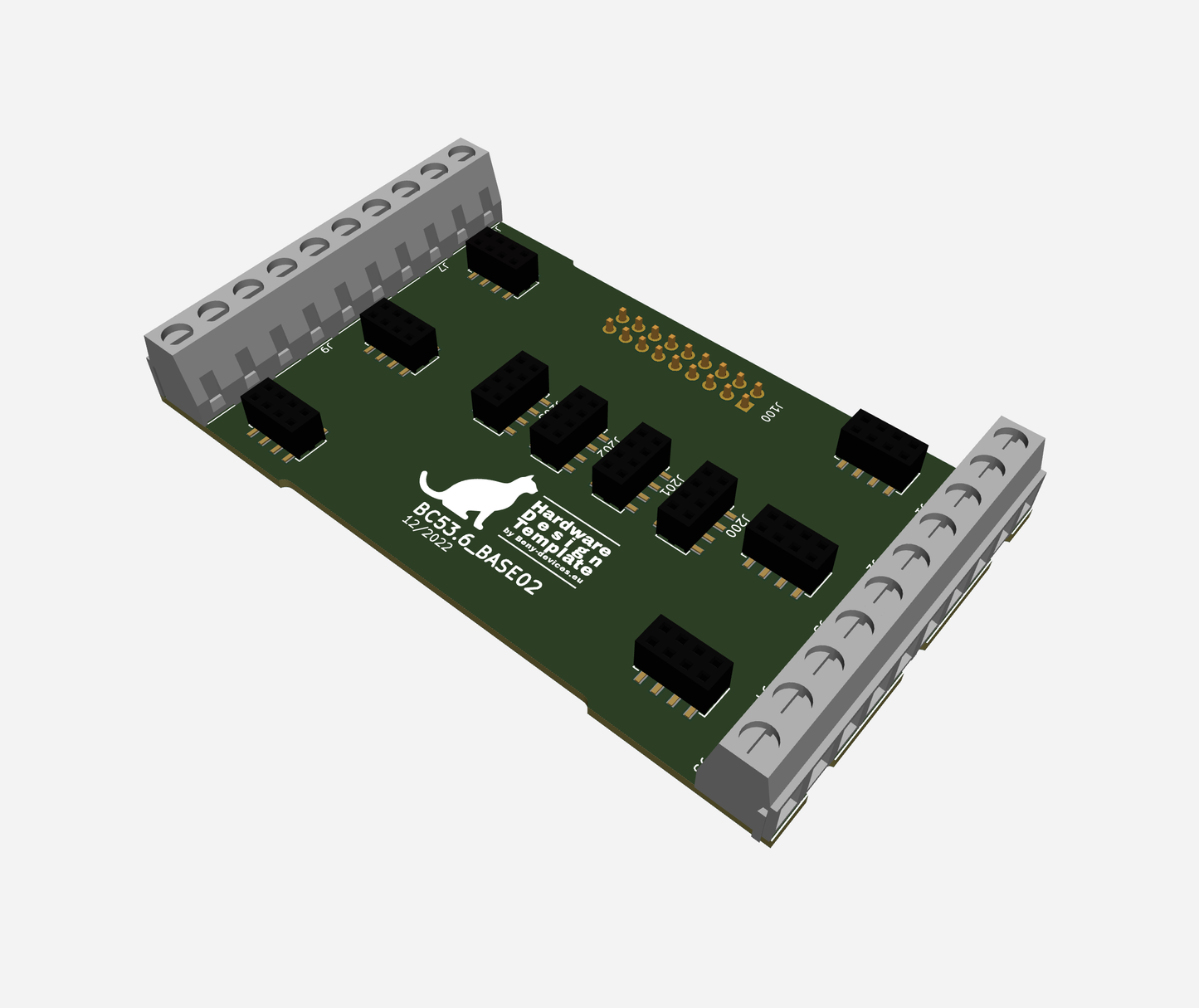

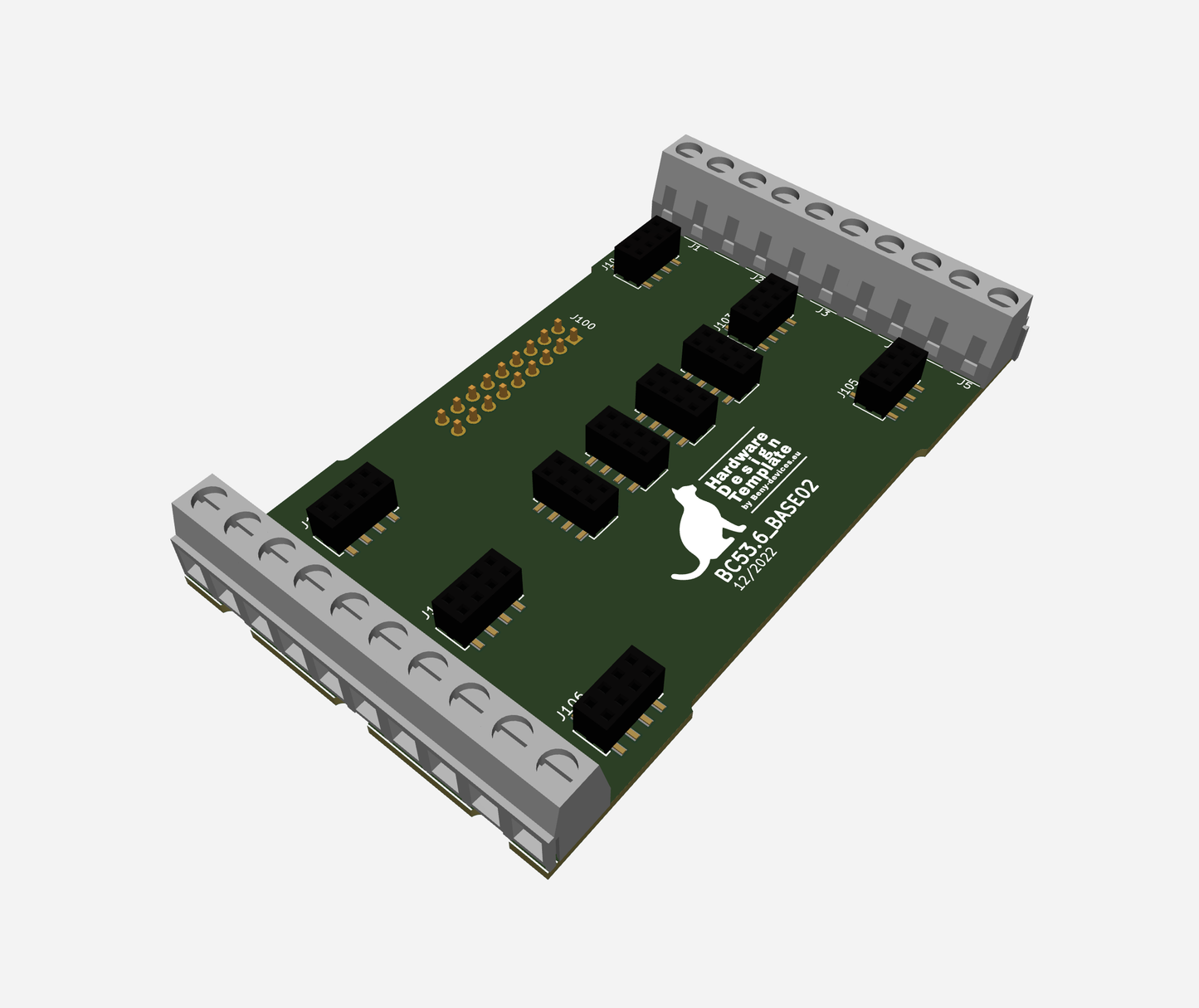

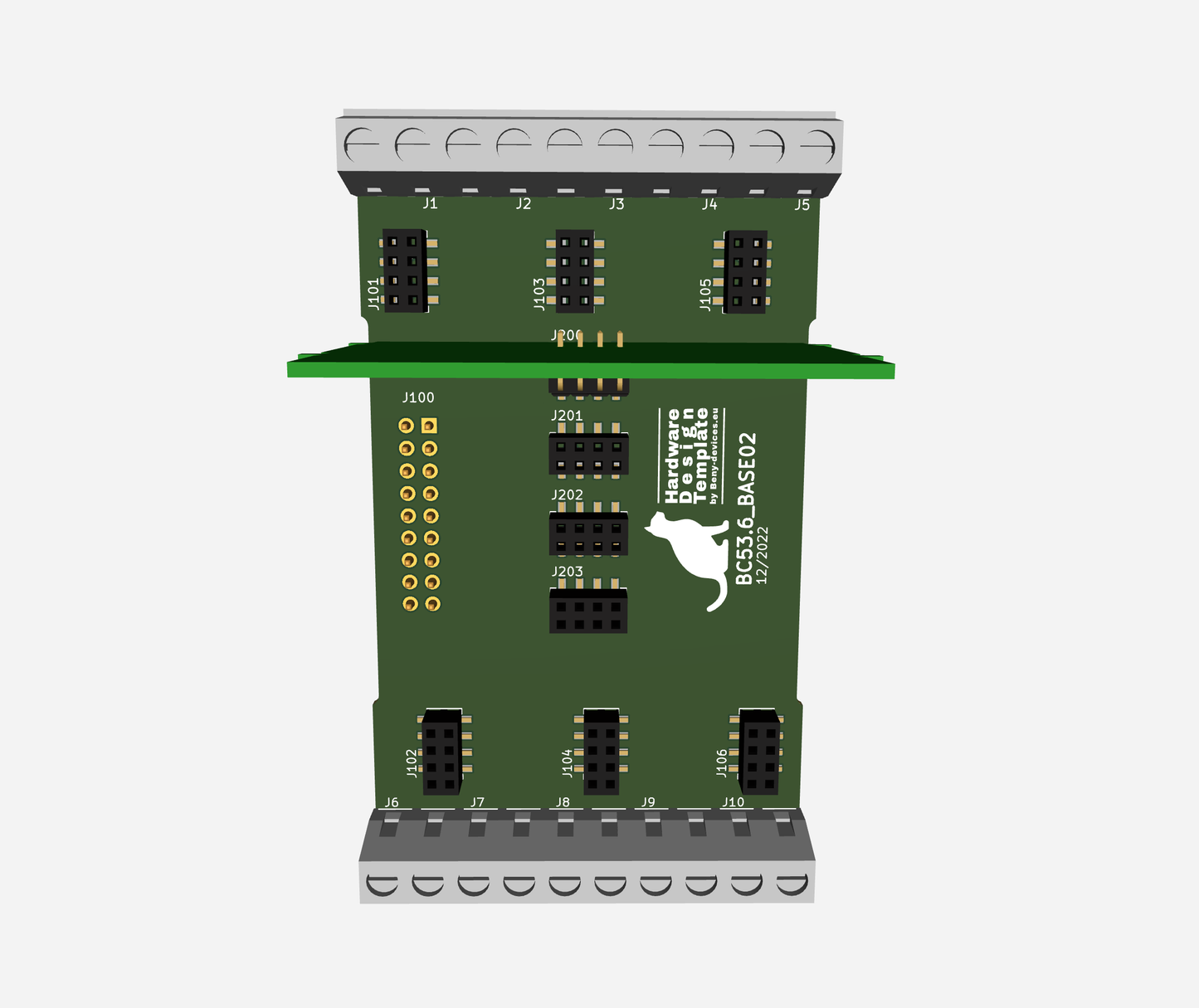

  • one Base-board with 2x10 screw terminals of 5.00 mm pitch

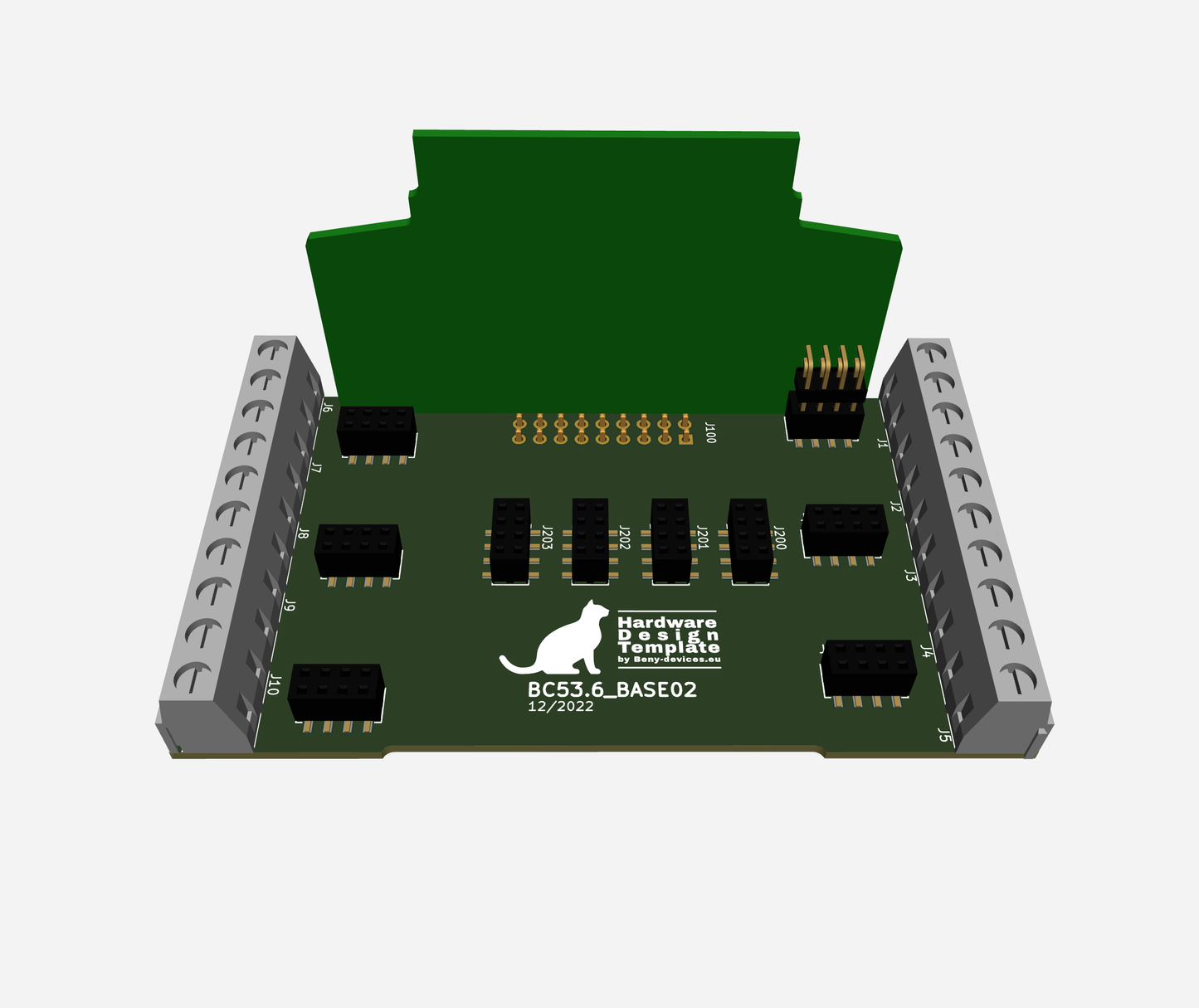

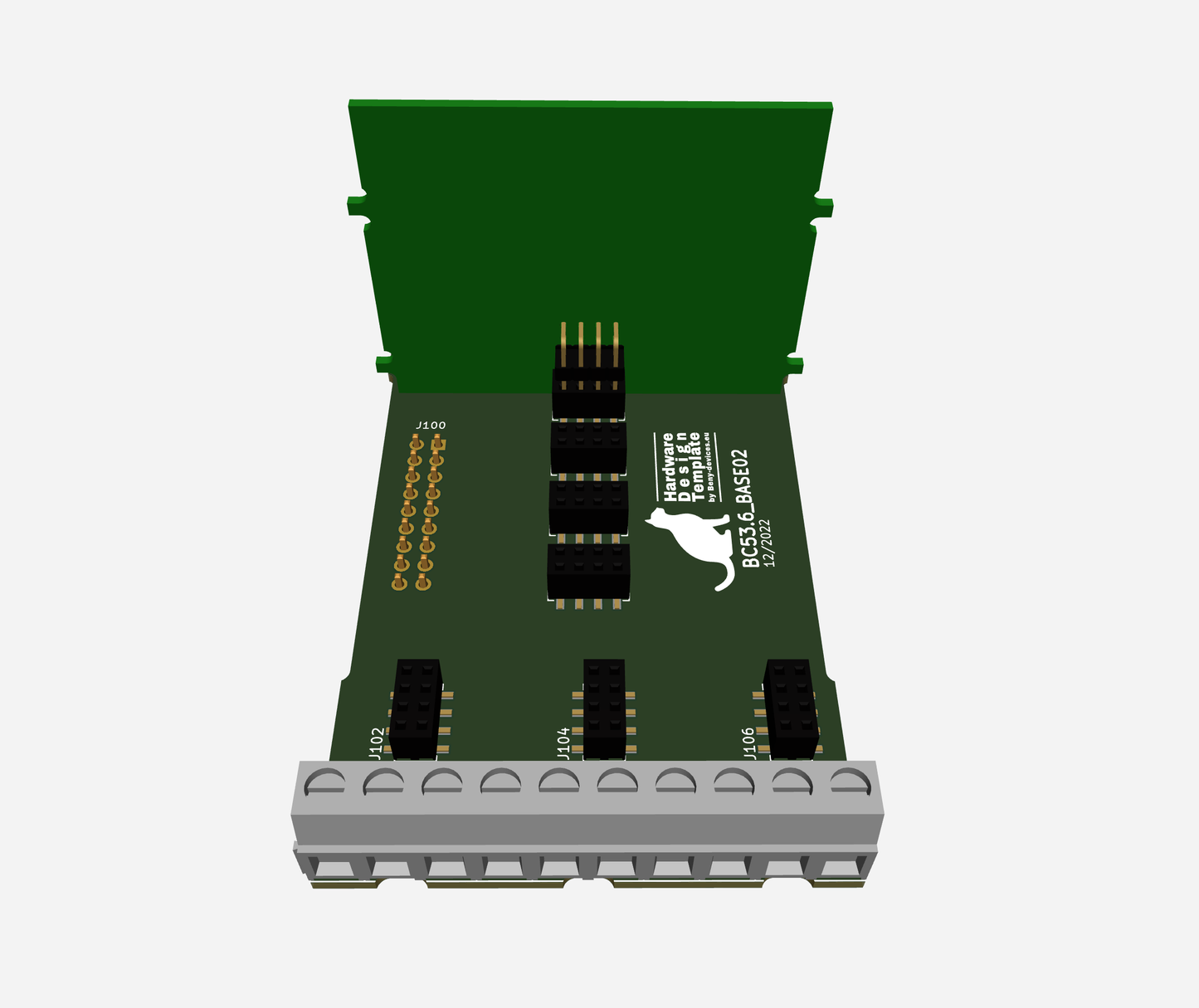

  • four Perpendicular boards – transverse to the DIN rail
  • six Perpendicular boards – parallel to the DIN rail

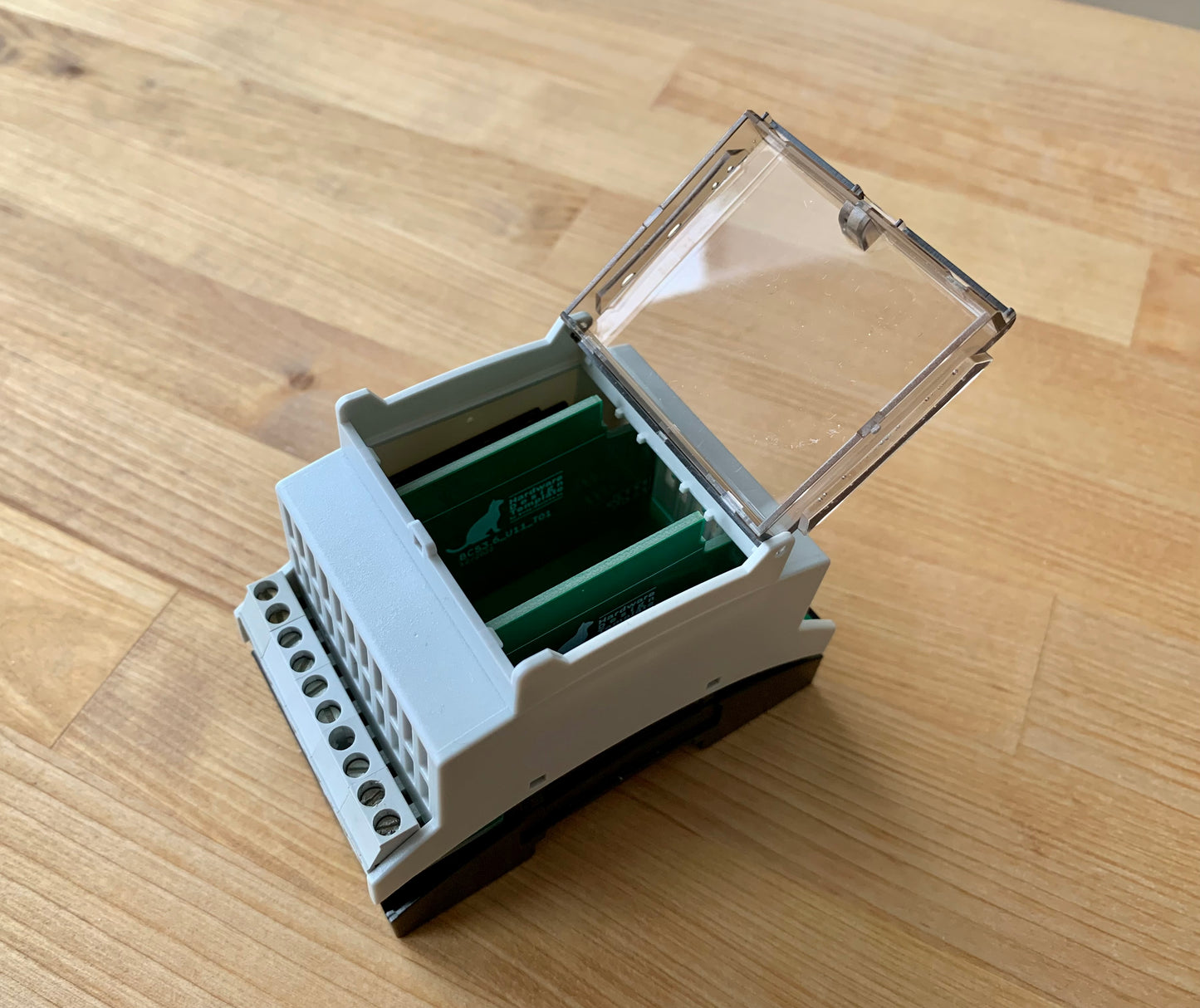

The used enclosure is Phoenix Contact BC53.6.

What you will not get:

The Hardware Design Template package DOES NOT contain the following:

  • Any physical enclosure or any piece of material.


💾 The Hardware Design Template is a downloadable digital product (delivery policy)


54.6x89.7x60 mm

View full details

A jump start

Mechanical simplicity along with tested components keep you on track to the final product.

  • ECAD project

    Simple and clean ECAD project. The size of the PCB is the maximum possible and the shape always follows the enclosure borders.

  • Bill of material

    List of all recommended components that were verified to be perfectly fiting the enclosure openings.
