BC161.6 DIN Vertical

BC161.6 DIN Vertical

Regular price $6.00 USD
Regular price Sale price $6.00 USD
Sale Sold out
Data format

What you will get:

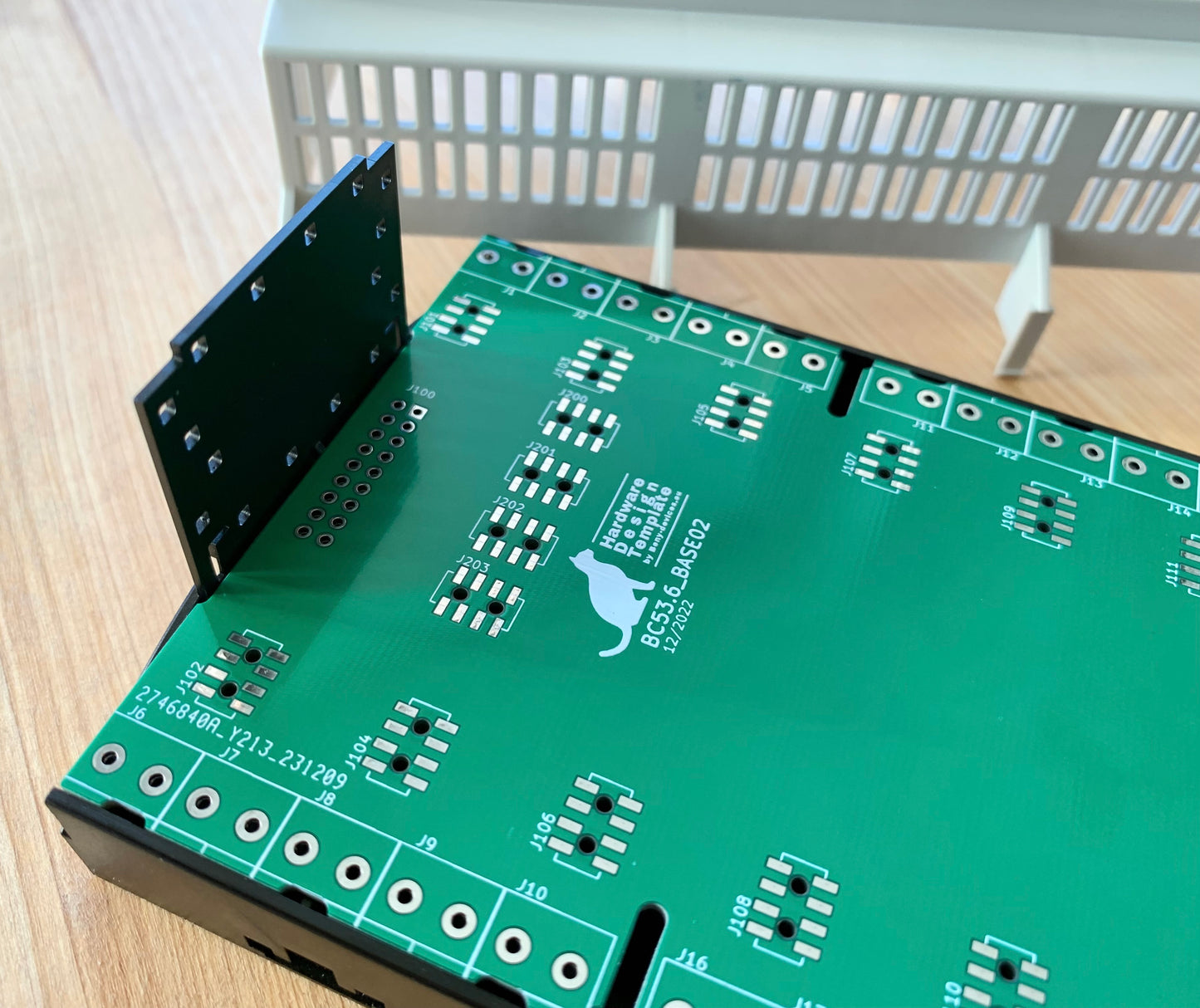

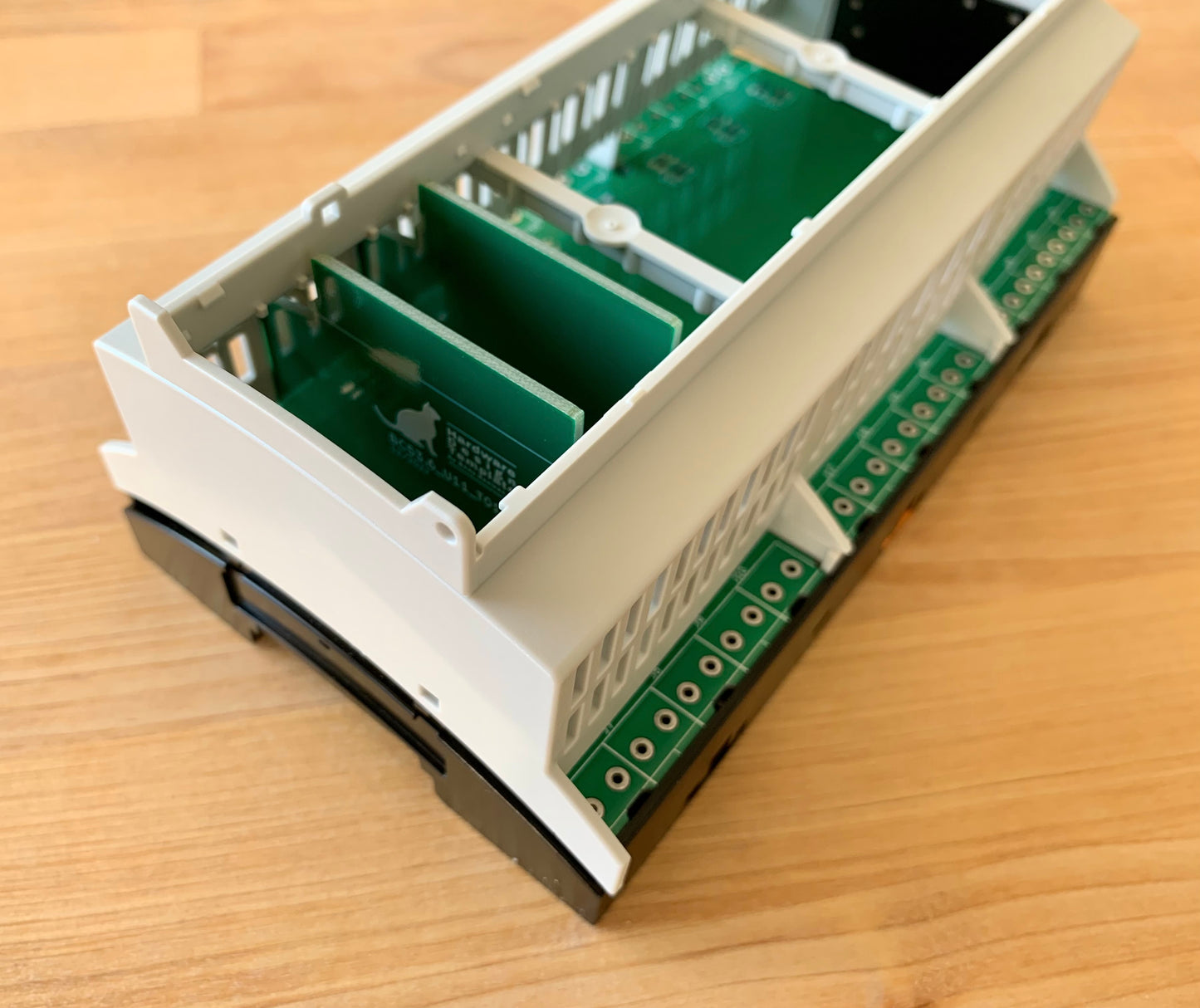

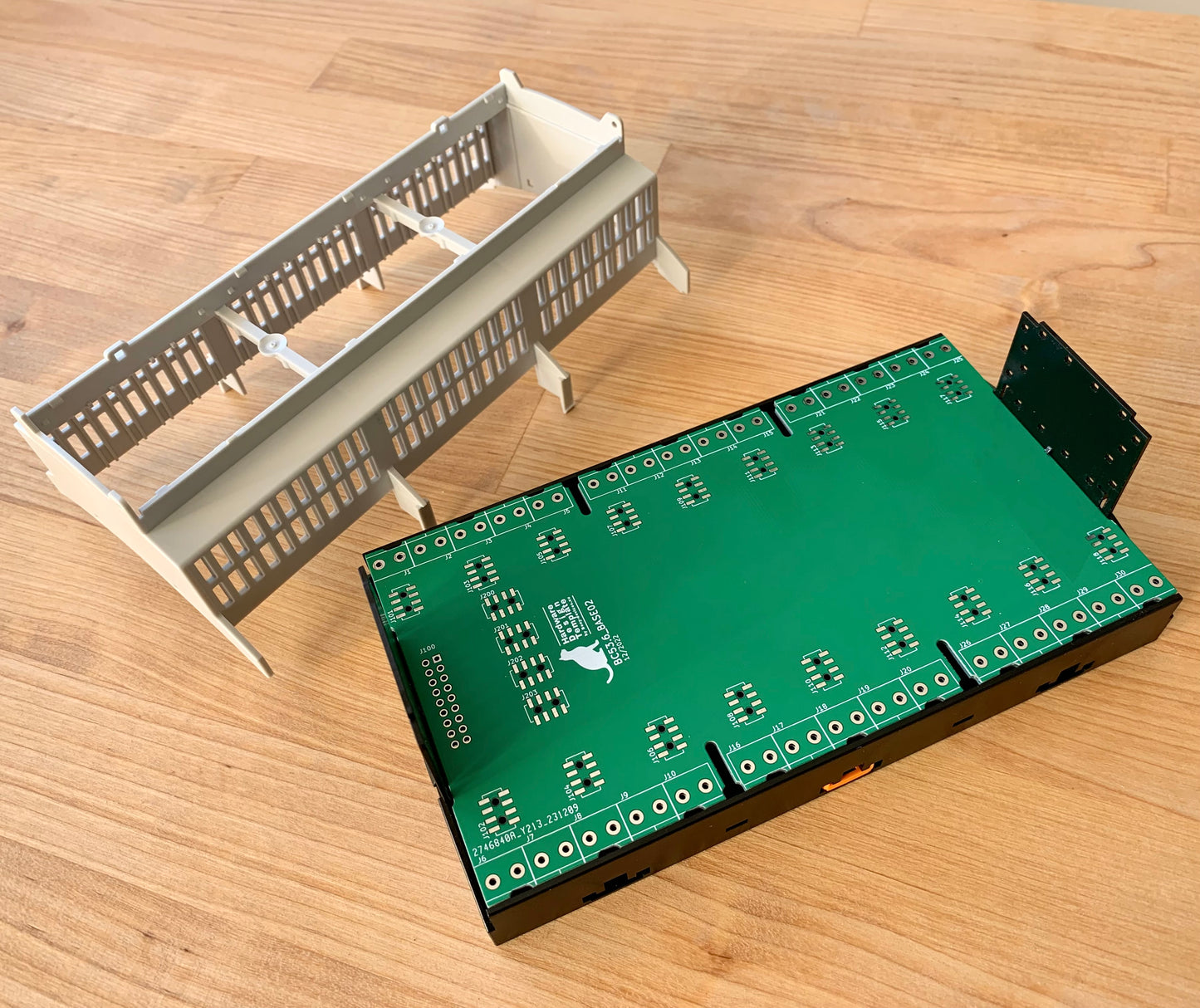

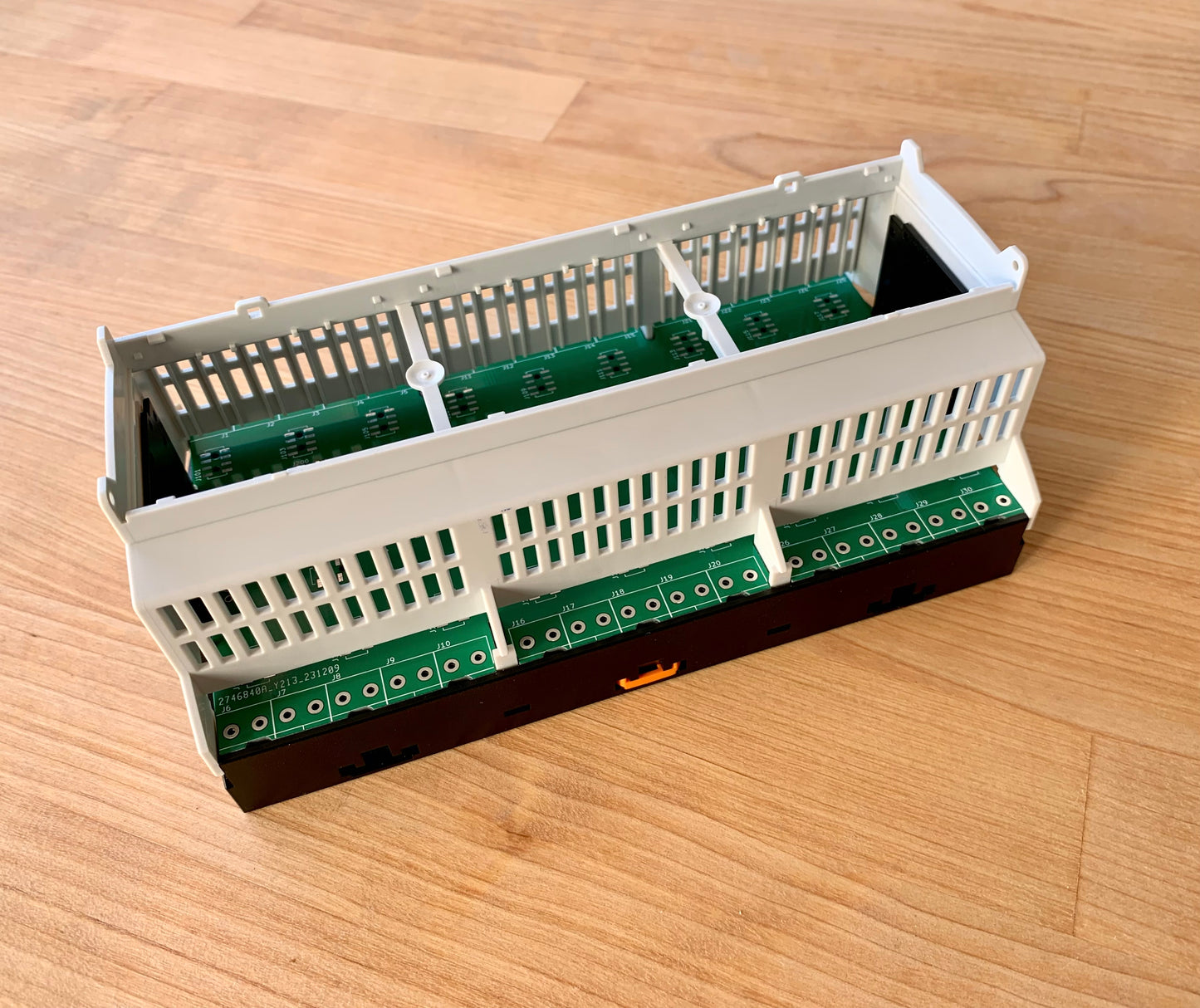

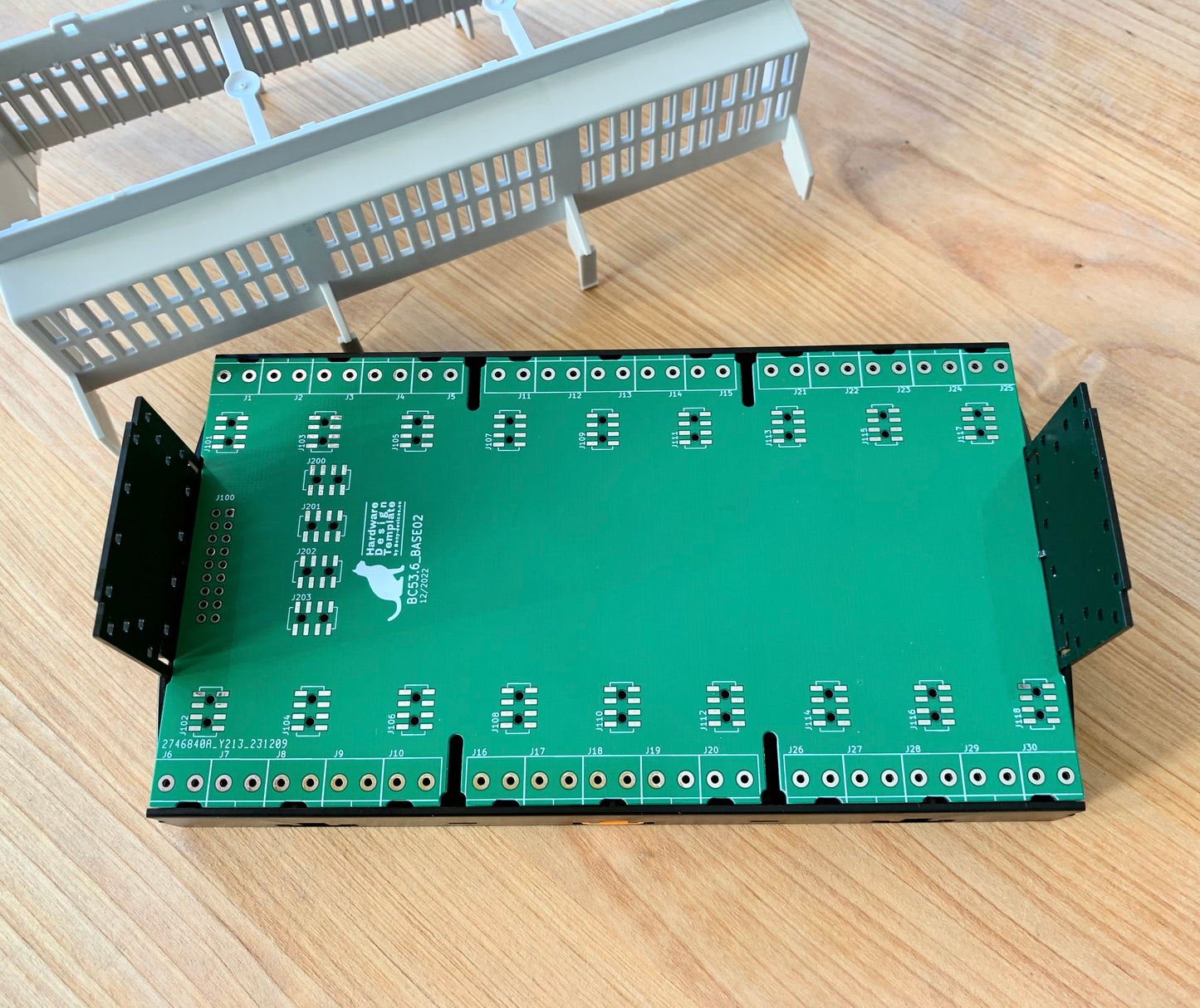

The Hardware Design Template package for the easiest schematic design and PCB layout of an Industrial instrument compatible with DIN rail (TS35) BC 161.6 enclosure (12-module width) with vertical boards.

The Hardware Design Template package contains the following:

  • Design data of the verified PCB template.
  • A design library of all used symbols.
  • A design library of all used footprints.
  • Clean and easy-to-order BOM of all components compatible with the enclosure openings.
  • Instructions on how to order the enclosure by yourself.

The Hardware Design Template supports the following:

  • one Base-board with 6x10 screw terminals of 5.00 mm pitch
  • nine Perpendicular boards – transverse to the DIN rail
  • six Perpendicular boards – parallel to the DIN rail

The used enclosure is Phoenix Contact BC161.6.

What you will not get:

The Hardware Design Template package DOES NOT contain the following:

  • Any physical enclosure or any piece of material.

Disclaimer

💾 The Hardware Design Template is a downloadable digital product (delivery policy)

Dimensions

161.6x89.7x60 mm

View full details

A jump start

Mechanical simplicity along with tested components keep you on track to the final product.

  • ECAD project

    Simple and clean ECAD project. The size of the PCB is the maximum possible and the shape always follows the enclosure borders.

  • Bill of material

    List of all recommended components that were verified to be perfectly fiting the enclosure openings.
