BC107.6 DIN Vertical
BC107.6 DIN Vertical
Couldn't load pickup availability
What you will get:
The Hardware Design Template package for the easiest schematic design and PCB layout of an Industrial instrument compatible with DIN rail (TS35) BC 107.6 enclosure (8-module width) with vertical boards.
The Hardware Design Template package contains the following:
- Design data of the verified PCB template.
- A design library of all used symbols.
- A design library of all used footprints.
- Clean and easy-to-order BOM of all components compatible with the enclosure openings.
- Instructions on how to order the enclosure by yourself.
The Hardware Design Template supports the following:

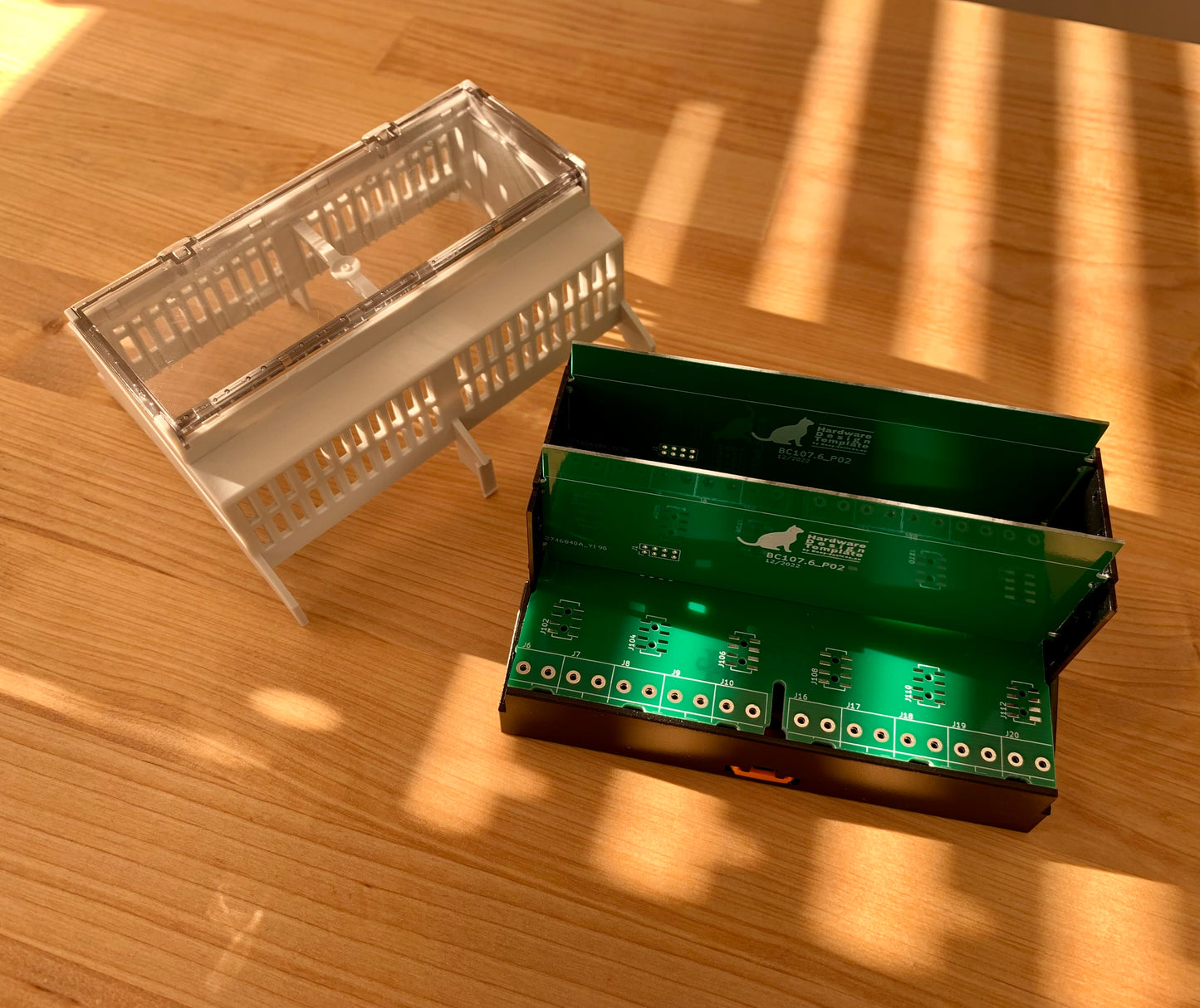

- one Base-board with 4x10 screw terminals of 5.00 mm pitch
- four Perpendicular boards – transverse to the DIN rail
- six Perpendicular boards – parallel to the DIN rail
The used enclosure is Phoenix Contact BC107.6.
What you will not get:
The Hardware Design Template package DOES NOT contain the following:
- Any physical enclosure or any piece of material.
Disclaimer
💾 The Hardware Design Template is a downloadable digital product (delivery policy)
Dimensions
Dimensions
107.6x89.7x60 mm
![BC107.6 DIN Vertical](http://beny-devices.eu/cdn/shop/files/IMG_3417.jpg?v=1691162292&width=1445)
![BC107.6 DIN Vertical](http://beny-devices.eu/cdn/shop/files/IMG_3399.jpg?v=1691162292&width=1445)
![BC107.6 DIN Vertical](http://beny-devices.eu/cdn/shop/files/IMG_3418.jpg?v=1691162292&width=1445)
![](http://beny-devices.eu/cdn/shop/products/968FAB21-0522-4DB5-9FFF-EF91B6C02992_1_201_a.heic?v=1663490048&width=1500)
A jump start
Mechanical simplicity along with tested components keep you on track to the final product.
-
ECAD project
Simple and clean ECAD project. The size of the PCB is the maximum possible and the shape always follows the enclosure borders.
-
Bill of material
List of all recommended components that were verified to be perfectly fiting the enclosure openings.
