Handheld instrument size AA

Handheld instrument size AA

Regular price €4,90 EUR
Regular price Sale price €4,90 EUR
Sale Sold out
Tax included.
Data format

What you will get:

The Hardware Design Template package for the easiest schematic design and PCB layout of a Handheld instrument, Industrial tool or similar device.

The Hardware Design Template package contains the following:

  • Design data of the verified PCB template.
  • A design library of all used symbols.
  • A design library of all used footprints.
  • Clean and easy-to-order BOM of all components compatible with the enclosure openings.
  • Instructions on how to order the enclosure by yourself.

The Hardware Design Template supports the following:

  • main component PCB template
  • front panel PCB template

The used enclosure is Hammond Manufacturing 1553AA.

What you will not get:

  • Any physical enclosure or any piece of material.

Disclaimer

💾 The Hardware Design Template is a downloadable digital product (delivery policy)

Dimensions

75x50x17mm

View full details

A jump start

Mechanical simplicity along with tested components keep you on track to the final product.

  • ECAD project

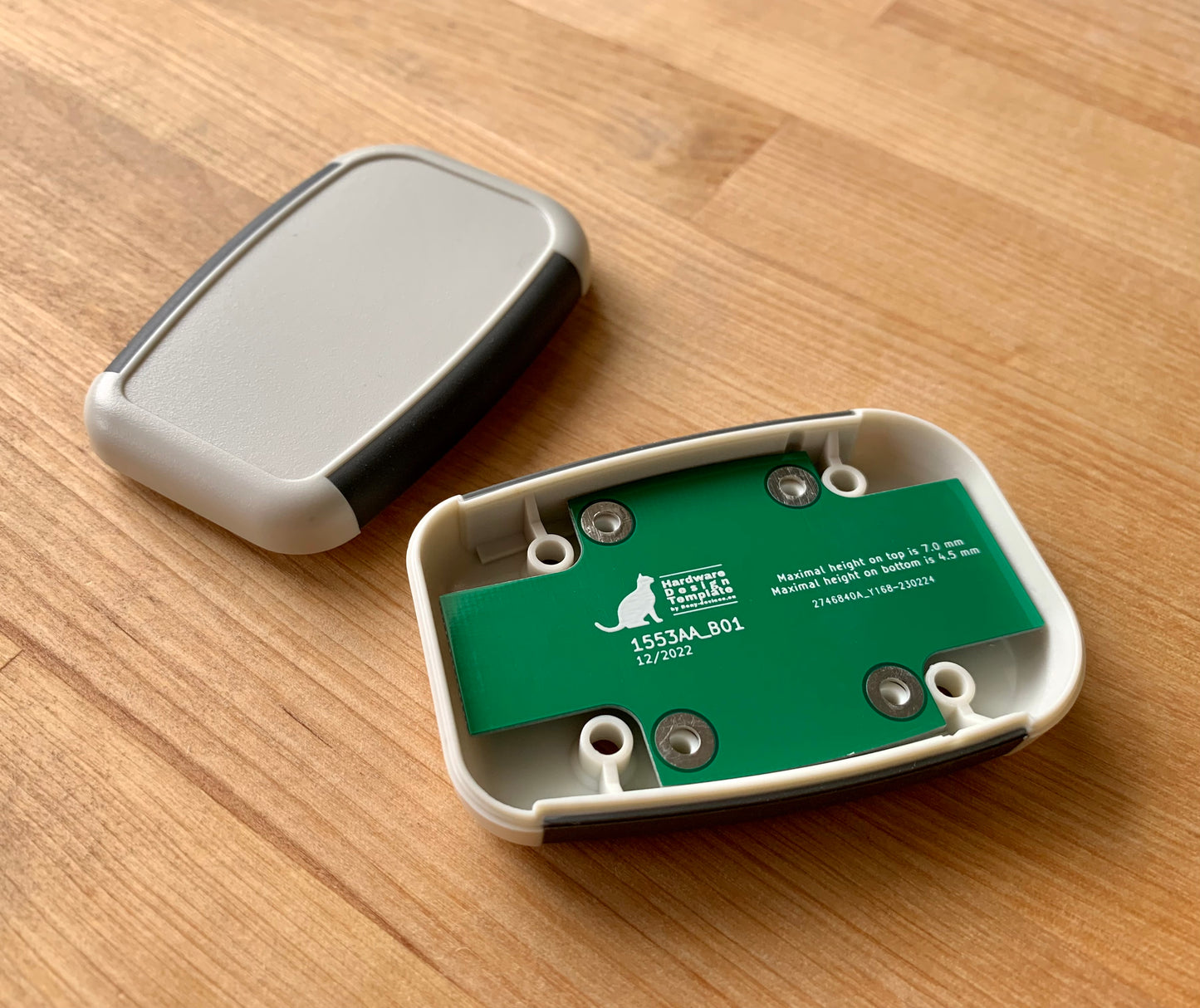

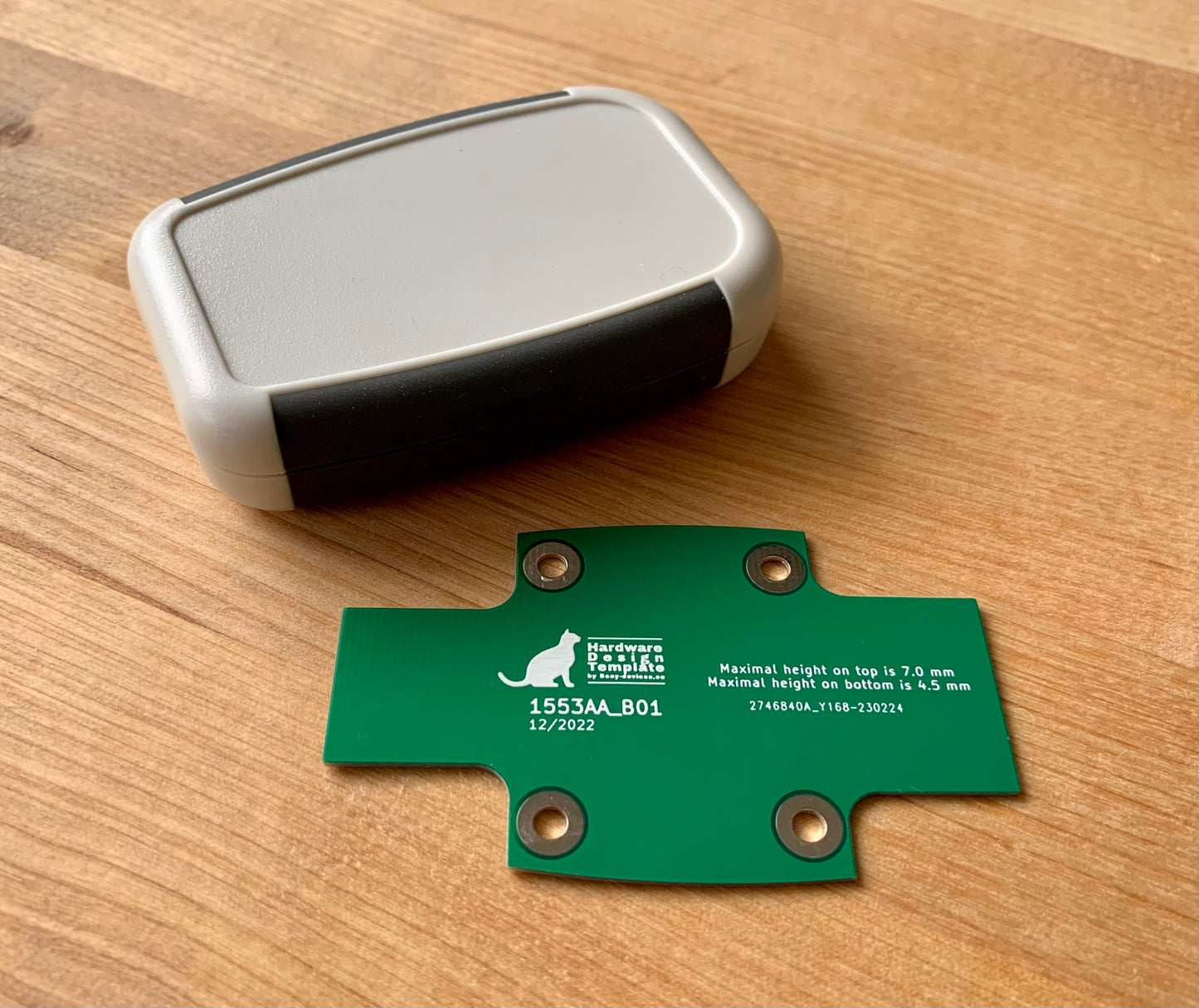

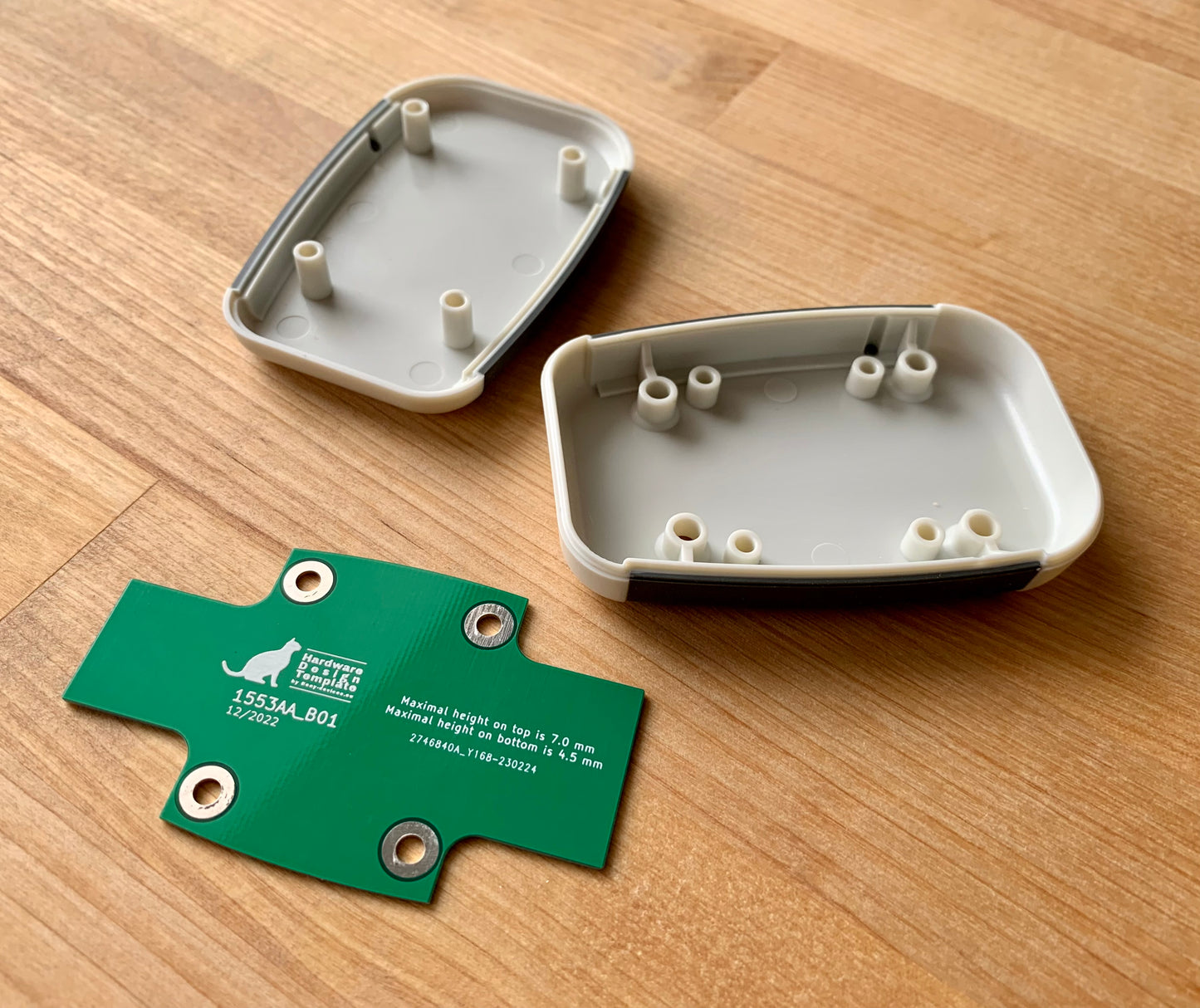

    Simple and clean ECAD project. The size of the PCB is the maximum possible and the shape always follows the enclosure borders.

  • Bill of material

    List of all recommended components that were verified to be perfectly fiting the enclosure openings.
